Model Details

CART-750-TS

Printer Friendly
CART-750-TS

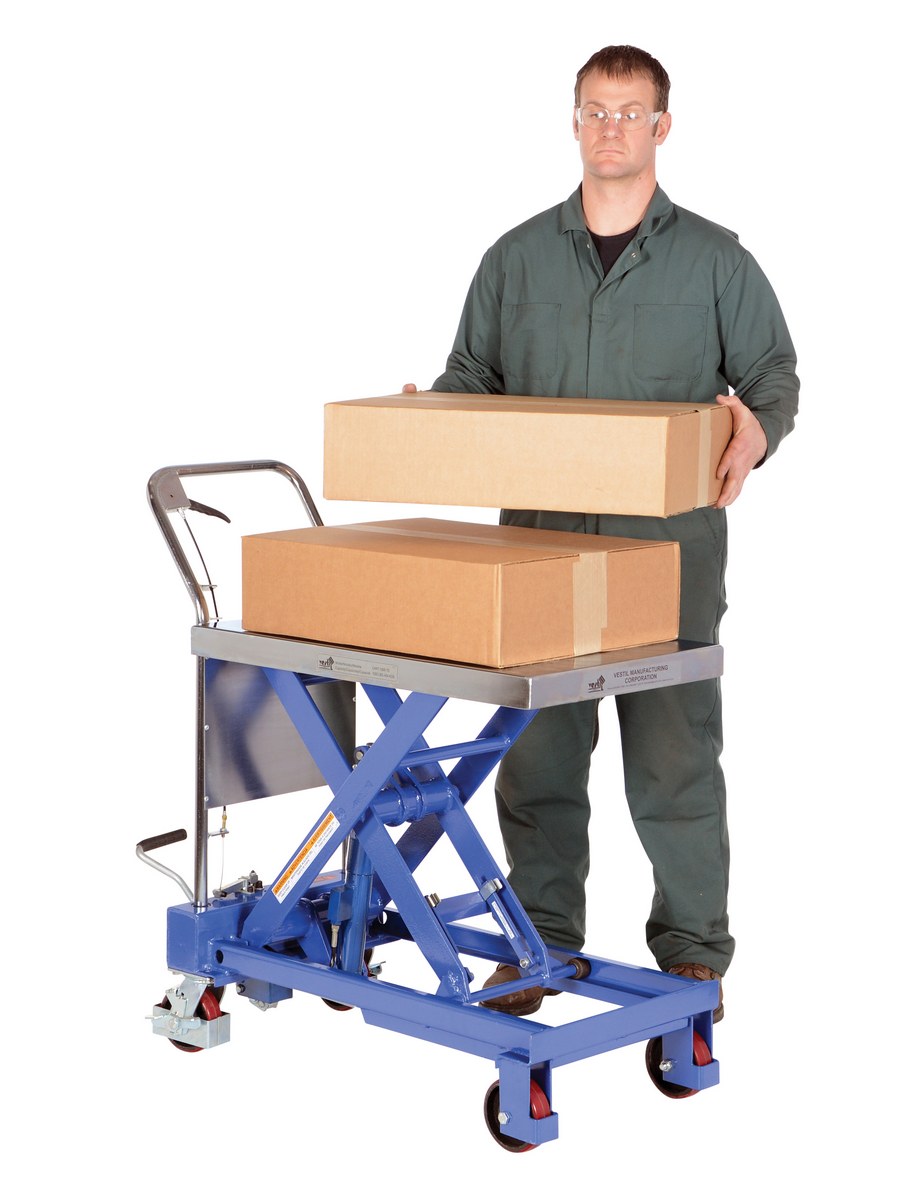

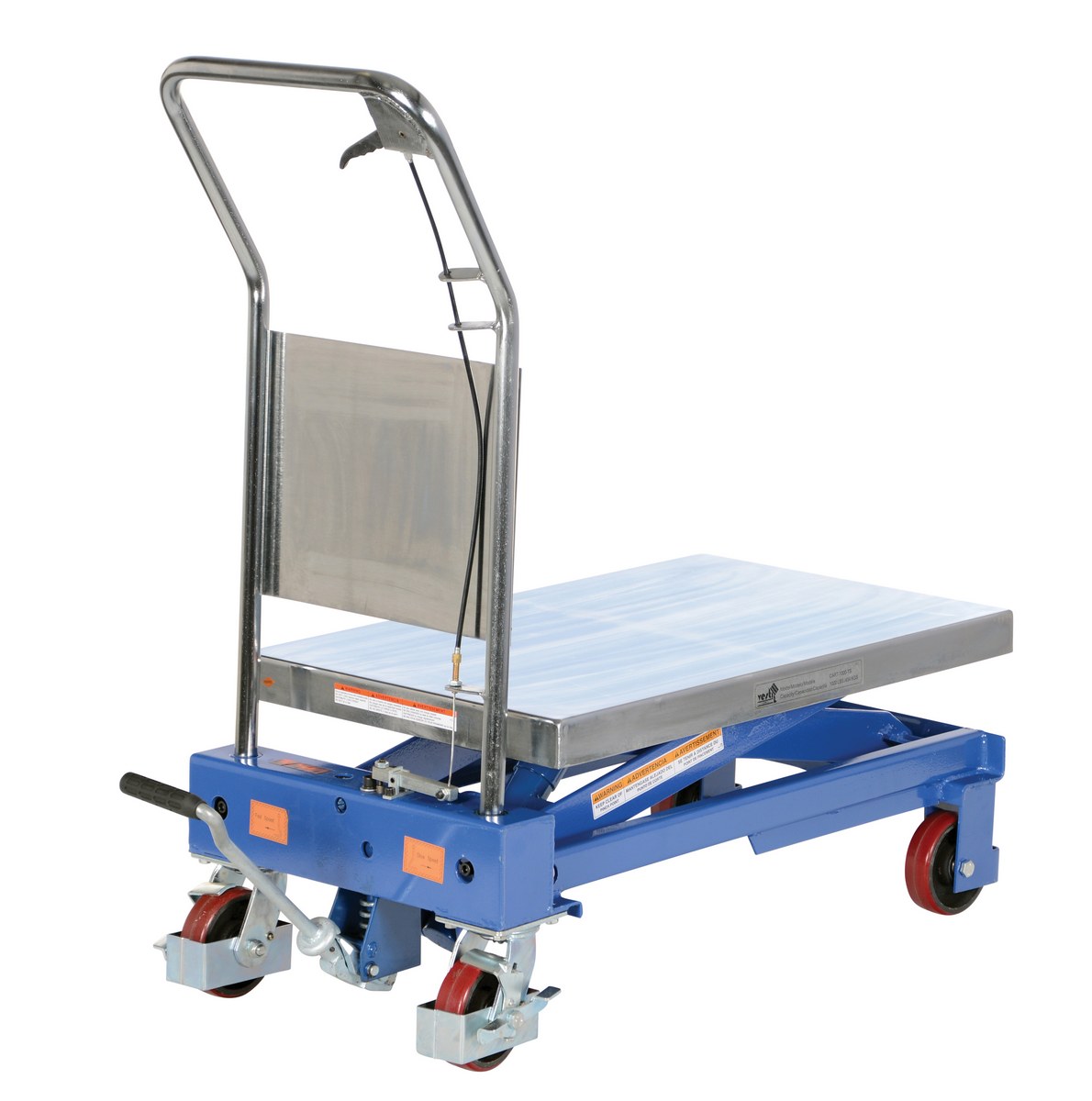

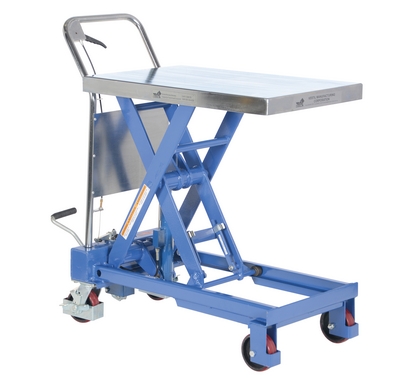

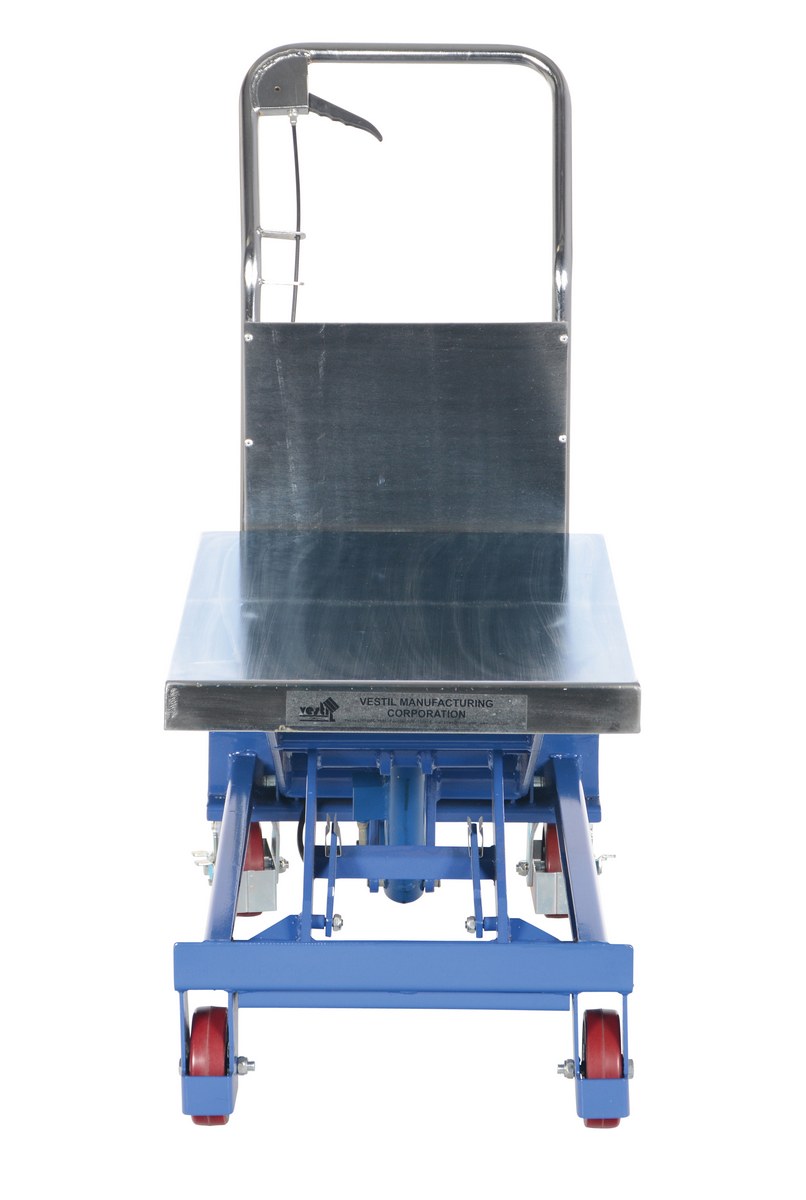

Steel Single Scissor Hydraulic Elevating Cart 32 In. x 18-3/4 In. 750 Lb. Capacity Blue/Silver

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 258 (only 1 package) Size: 19.75"W x 47.1875"L x 39.5"H Color: Blue

Uniform Capacity (lb.): 750 Platform Width (in.): 19-3/4 Platform Length (in.): 32
Lowered Height (in.): 15-1/2 Raised Height (in.): 35-1/2 Caster Quantity/Diameter/Width (in.): (4) 5 x 2
Caster Type: (2) Rigid (2) Swivel with Brakes Foot Pump Speed: Two Caster Material: Poly-on-Poly
Scissor Type: Single Elevation per Stroke (in.): 3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-750-TS
CART-750-TS

Steel Single Scissor Hydraulic Elevating Cart 32 In. x 18-3/4 In. 750 Lb. Capacity Blue/Silver

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Dimensions: 19.75"W x 47.1875"L x 39.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215010481 GTIN: 00691215010481
Warranty: -- Shipping Weight: 258 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 750 Platform Width (in.): 19-3/4 Platform Length (in.): 32
Lowered Height (in.): 15-1/2 Raised Height (in.): 35-1/2 Caster Quantity/Diameter/Width (in.): (4) 5 x 2
Caster Type: (2) Rigid (2) Swivel with Brakes Foot Pump Speed: Two Caster Material: Poly-on-Poly
Scissor Type: Single Elevation per Stroke (in.): 3/4
