Model Details

CCRF-24-P

Printer Friendly

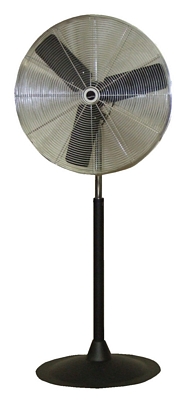

CCRF-24-P

Steel Commercial Circulating Pedestal Fan 24 In. Black/Silver

The two speed commercial circulating is perfect for a variety of industries. The pull chain switch give the user functional control. These portable blowers do not have a totally enclosed motor. The guard is coated steel with retaining clips. The fan has a steel hub and aluminum paddle blades. The motor is permanently lubricated with a permanent split capacitor.

  • Meets OSHA standards and is UL C/US listed
  • Three blade design keeps are moving
  • Use in a clean and dry commercial application
  • Wide circular pedestal base
Total Ship Wt.(lbs.): 98 (Multiple Packages: P1: 63 lbs + P2: 35 lbs) Size: 27"W x 27"L x 104"H Color: Black / Silver Non-Returnable

Blade Diameter (in.): 25 Mounting Style: Pedestal Amps High: 2.3
CFM High: 5400 CFM Low: 4300 Electric Motor Horsepower: 1/4
Conductor Cord Length (in.): 108 Conductor Cord: SJT type 3 Voltage/Phase: 120V/1PH
CFM Medium: 4900 OSHA: 1910.212 (a)(5) Lowest Pole Position (in.): 43
Highest Pole Position (in.): 6

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: CCRF-24-P
CCRF-24-P

Steel Commercial Circulating Pedestal Fan 24 In. Black/Silver

The two speed commercial circulating is perfect for a variety of industries. The pull chain switch give the user functional control. These portable blowers do not have a totally enclosed motor. The guard is coated steel with retaining clips. The fan has a steel hub and aluminum paddle blades. The motor is permanently lubricated with a permanent split capacitor.

  • Meets OSHA standards and is UL C/US listed
  • Three blade design keeps are moving
  • Use in a clean and dry commercial application
  • Wide circular pedestal base
Dimensions: 27"W x 27"L x 104"H Sell UOM: EA-Each Color: Black / Silver
Material: Steel UPC: 691215085304 GTIN: 00691215085304
Warranty: -- Shipping Weight: 63 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Blade Diameter (in.): 25 Mounting Style: Pedestal Amps High: 2.3
CFM High: 5400 CFM Low: 4300 Electric Motor Horsepower: 1/4
Conductor Cord Length (in.): 108 Conductor Cord: SJT type 3 Voltage/Phase: 120V/1PH
CFM Medium: 4900 OSHA: 1910.212 (a)(5) Lowest Pole Position (in.): 43
Highest Pole Position (in.): 6
