Model Details

CH-10-6

Printer Friendly
CH-10-6

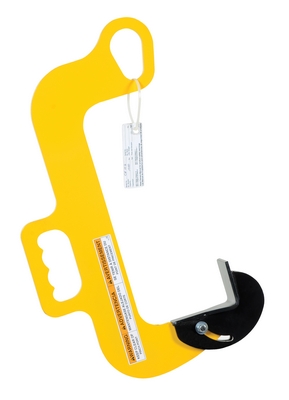

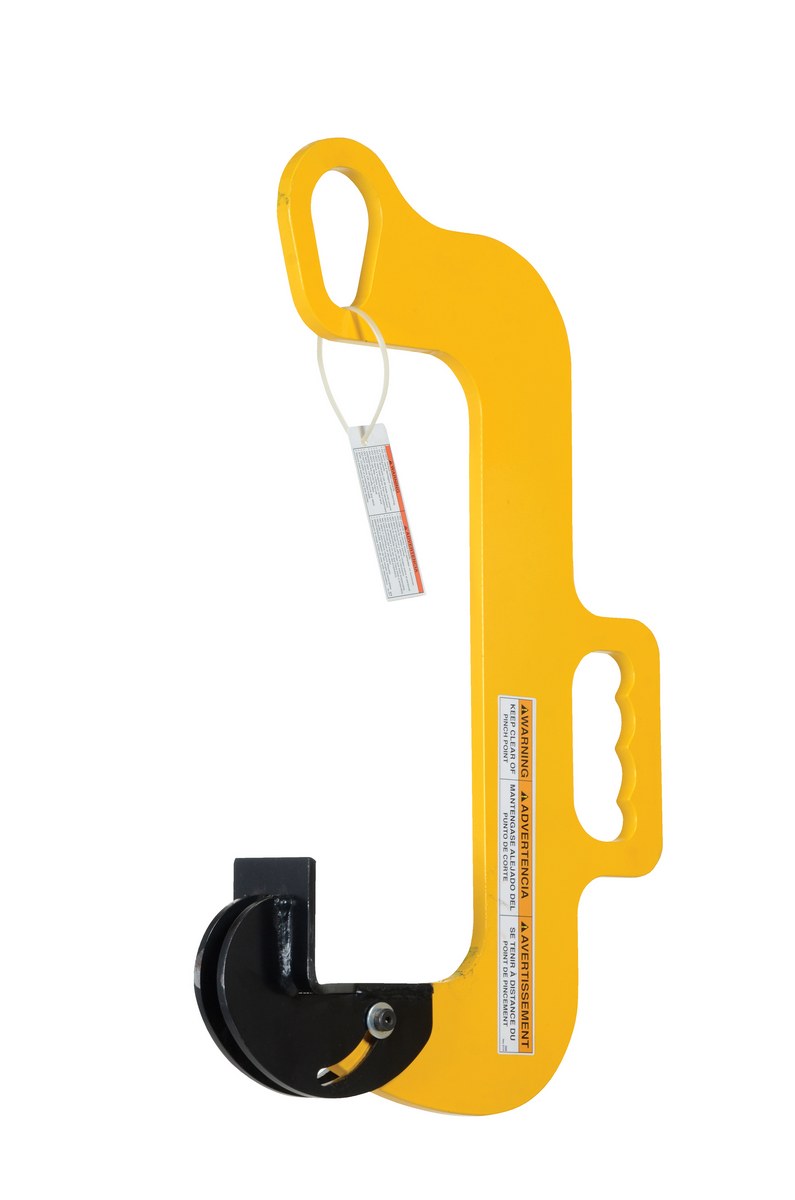

Steel Overhead Coil Hook 6 In. 1000 Lb. Capacity Yellow

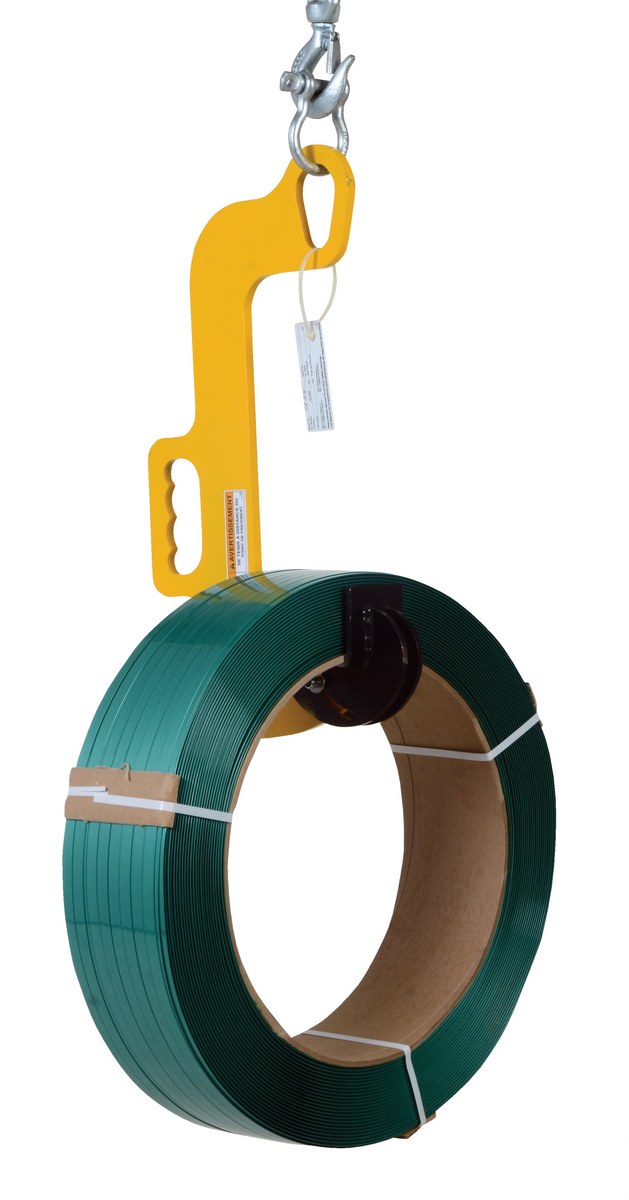

This overhead coil hook is designed for lifting heavy coils with overhead lifting device. Easy position coils from horizontal to vertical position.

  • 12" max coil width
  • 1,000 lb. lifting capacity
  • May also be used as a beam clamp for smaller, less heavier beams
  • Made from steel and powder coated yellow for durability and easy visibility
Total Ship Wt.(lbs.): 22 (only 1 package) Size: 3"W x 24.125"L x 13.0625"H Color: Yellow

Lifting Capacity (lb.): 1,000 Maximum Coil Width (in.): 6 Maximum Coil Radial (in.): 13
Minimum Coil Inside Diameter (in.): 9 Jaw Depth (in.): 5 Max. Jaw Opening (in.): 15-7/8
Clamp Lock Mechanism: Lever

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: CH-10-6
CH-10-6

Steel Overhead Coil Hook 6 In. 1000 Lb. Capacity Yellow

This overhead coil hook is designed for lifting heavy coils with overhead lifting device. Easy position coils from horizontal to vertical position.

  • 12" max coil width
  • 1,000 lb. lifting capacity
  • May also be used as a beam clamp for smaller, less heavier beams
  • Made from steel and powder coated yellow for durability and easy visibility
Dimensions: 3"W x 24.125"L x 13.0625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215054881 GTIN: 00691215054881
Warranty: -- Shipping Weight: 22 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Lifting Capacity (lb.): 1,000 Maximum Coil Width (in.): 6 Maximum Coil Radial (in.): 13
Minimum Coil Inside Diameter (in.): 9 Jaw Depth (in.): 5 Max. Jaw Opening (in.): 15-7/8
Clamp Lock Mechanism: Lever
