Model Details

COLV-7-82-44

Printer Friendly
COLV-7-82-44

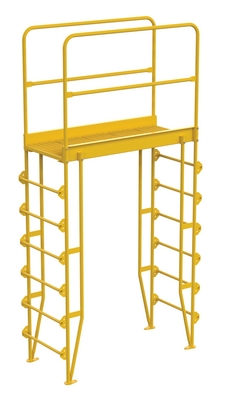

Steel Vertical Crossover Ladder 7 Step 44 In. Width 500 Lb. Capacity Yellow

Mount where you need permanent access at crossover points. The upper platform features removable handrail and fixed toe boards to prevent objects from rolling off. Serrated platform for extra grip. Top half of steps covered in grip material for safety. Ground legs include floor mounting pads. Units must be anchored to the floor. Units are all steel construction and can be knockdown for storage and shipping. Meets OSHA 29 CFR 1910.27. Baked-in powder-coated toughness.

  • High handrail for supreme safety
  • Serrated platform for additional foot control
  • Powder coated finish for long term use
  • Easy to deconstruct for storage
Total Ship Wt.(lbs.): 348 (only 1 package) Size: 28.6875"W x 65.0625"L x 126.625"H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 500 Platform Height (in.): 84 Platform Width (in.): 23-9/16
Platform Length (in.): 60 Handrail Height (in.): 42-5/8 Mid-Rail (in.): 21
Toeboard (in.): 4 Step Width (in.): 23-9/16 Step Spacing (in.): 12
Number of Steps: 7 Clearance Span Width (in.): 44 Clearance Span Height (in.): 82-3/16
Platform Tread: Serrated OSHA: 29 CFR 1910.27

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: COLV-7-82-44
COLV-7-82-44

Steel Vertical Crossover Ladder 7 Step 44 In. Width 500 Lb. Capacity Yellow

Mount where you need permanent access at crossover points. The upper platform features removable handrail and fixed toe boards to prevent objects from rolling off. Serrated platform for extra grip. Top half of steps covered in grip material for safety. Ground legs include floor mounting pads. Units must be anchored to the floor. Units are all steel construction and can be knockdown for storage and shipping. Meets OSHA 29 CFR 1910.27. Baked-in powder-coated toughness.

  • High handrail for supreme safety
  • Serrated platform for additional foot control
  • Powder coated finish for long term use
  • Easy to deconstruct for storage
Dimensions: 28.6875"W x 65.0625"L x 126.625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215132763 GTIN: 00691215132763
Warranty: -- Shipping Weight: 348 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 500 Platform Height (in.): 84 Platform Width (in.): 23-9/16
Platform Length (in.): 60 Handrail Height (in.): 42-5/8 Mid-Rail (in.): 21
Toeboard (in.): 4 Step Width (in.): 23-9/16 Step Spacing (in.): 12
Number of Steps: 7 Clearance Span Width (in.): 44 Clearance Span Height (in.): 82-3/16
Platform Tread: Serrated OSHA: 29 CFR 1910.27
