Model Details

CONVL-30-1723

Printer Friendly
CONVL-30-1723

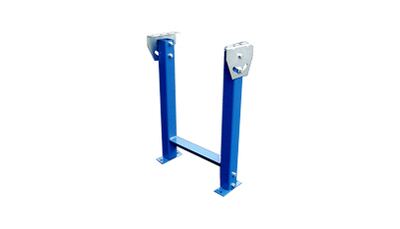

Steel Conveyor Legs 30 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity Blue

Conventional conveyors often sit on already available table tops. But, with the assistance of a conveyor stand, that much needed workspace can be made available again. You might think that a stand is just a way for a conveyor to be upheld, but it’s so much more than that. The stand can and does fundamentally change the angle of the conveyor to best fit the users’ preference. With a double legged design, the stand provides side to side support to an attached conveyor. Conveyors are available separately.

  • Pre-drilled mounting holes for permanent installation
  • 2" square tubing
  • Variable height capabilities
  • Adjustable incline and decline
Total Ship Wt.(lbs.): 19 (only 1 package) Size: 30"W x 5"L x 17"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2000 Overall Length (in.): 5 Overall Width (in.): 30
Overall Height (in.): 17 Leg Width (in.): 30 Adjustable Leg Height (in.): 17-23
Square Tubing Size (in.): 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: CONVL-30-1723
CONVL-30-1723

Steel Conveyor Legs 30 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity Blue

Conventional conveyors often sit on already available table tops. But, with the assistance of a conveyor stand, that much needed workspace can be made available again. You might think that a stand is just a way for a conveyor to be upheld, but it’s so much more than that. The stand can and does fundamentally change the angle of the conveyor to best fit the users’ preference. With a double legged design, the stand provides side to side support to an attached conveyor. Conveyors are available separately.

  • Pre-drilled mounting holes for permanent installation
  • 2" square tubing
  • Variable height capabilities
  • Adjustable incline and decline
Dimensions: 30"W x 5"L x 17"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215374965 GTIN: 00691215374965
Warranty: -- Shipping Weight: 19 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: USA
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Overall Length (in.): 5 Overall Width (in.): 30
Overall Height (in.): 17 Leg Width (in.): 30 Adjustable Leg Height (in.): 17-23
Square Tubing Size (in.): 2
