CPC-20

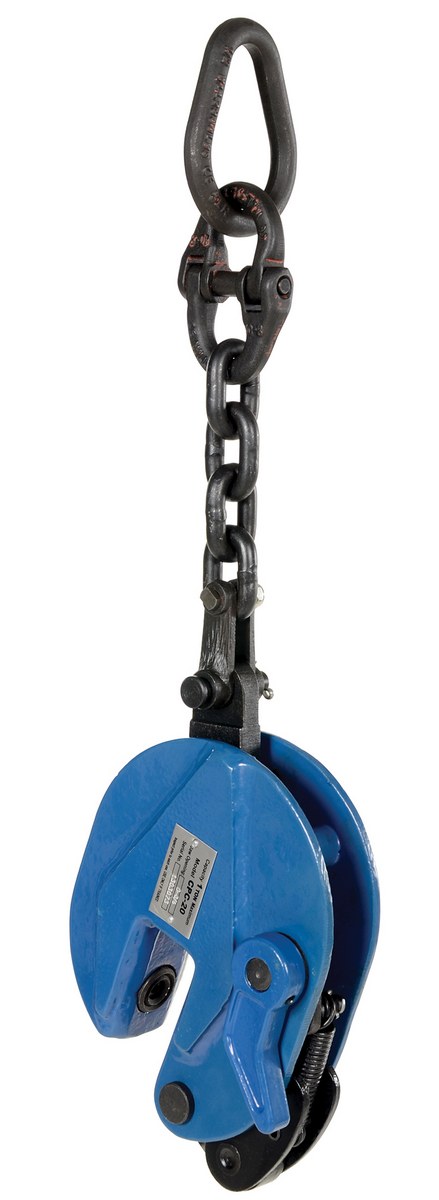

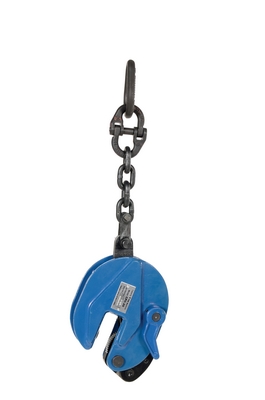

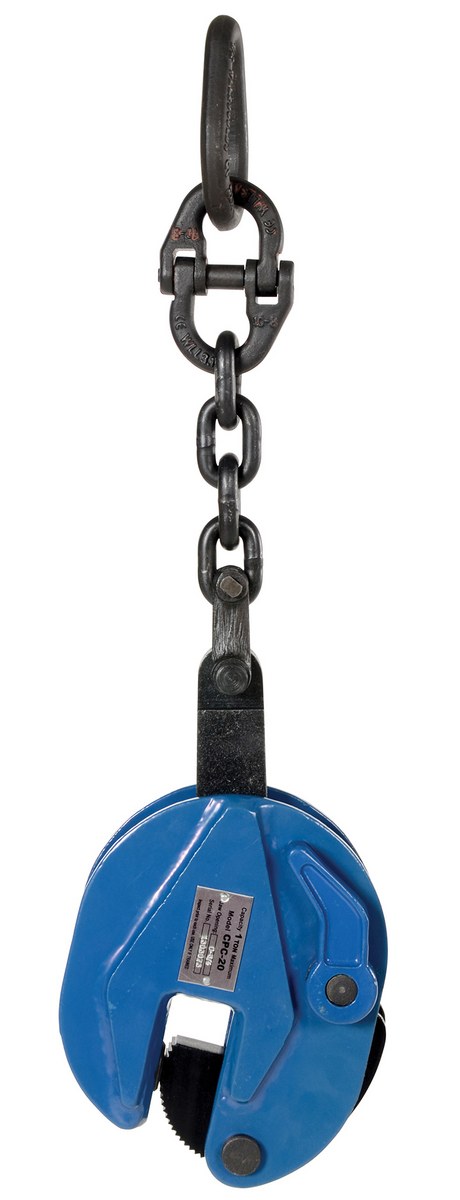

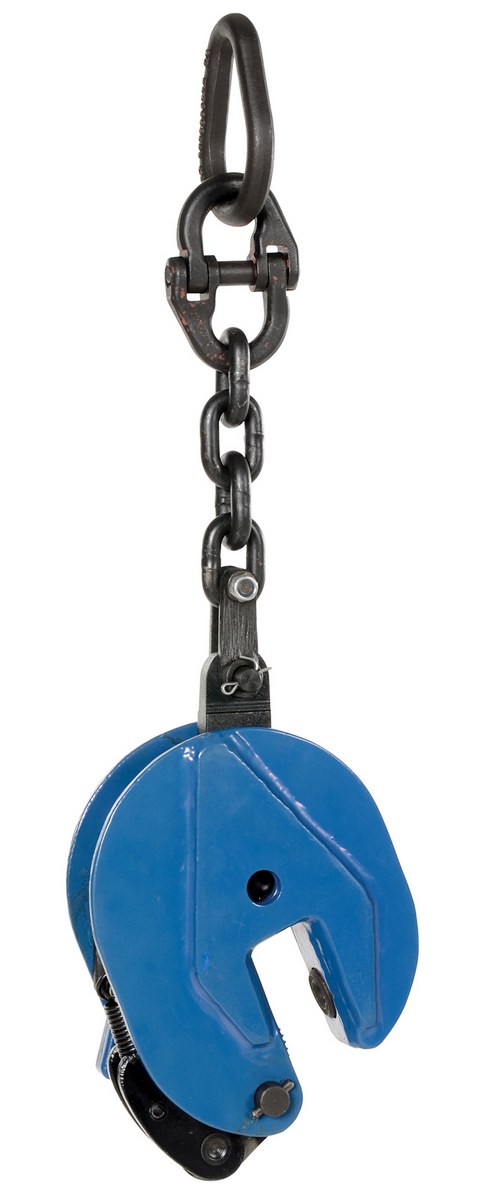

Steel Vertical Plate Clamp with Chain 6-1/2 In. x 2-1/2 In. x 22 In. 2000 Lb. Capacity Blue

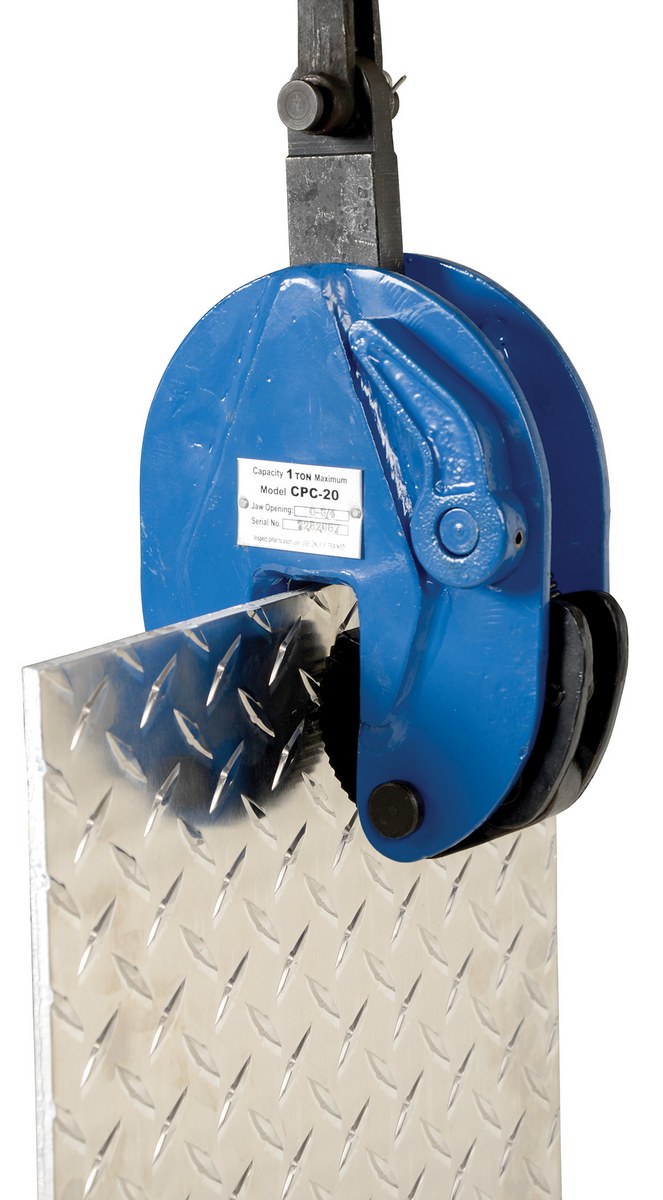

The vertical plate clamp is designed for lifting plate material in a vertical position.Heavy-duty steel construction for years of reliable use. Not designed to use on stainless steel or aluminum plates.

  • Ideal for pulling over long distances
  • Designed for in a vertical position
  • Lifting eye includes chain for greater versatility
  • For use with materials with a surface hardness to 30 RC (300 HB)
Total Ship Wt.(lbs.): 14 (only 1 package) Size: 2.5"W x 6.5"L x 22"H Color: Blue

Min Uniform Plate Weight (lb.): 400 Uniform Working Load Limit (lb.): 2,000 Throat Depth (in.): 3
Bale Opening (in.): 3.00 Maximum Jaw Opening (in.): 1-1/4 Overall Thickness (in.): 2-1/4
Clamp Lock Mechanism: Automatic Minimum Plate Thickness (in.): 0 Maximum Plate Thickness (in.): 0.8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: CPC-20
CPC-20

Steel Vertical Plate Clamp with Chain 6-1/2 In. x 2-1/2 In. x 22 In. 2000 Lb. Capacity Blue

The vertical plate clamp is designed for lifting plate material in a vertical position.Heavy-duty steel construction for years of reliable use. Not designed to use on stainless steel or aluminum plates.

  • Ideal for pulling over long distances
  • Designed for in a vertical position
  • Lifting eye includes chain for greater versatility
  • For use with materials with a surface hardness to 30 RC (300 HB)
Dimensions: 2.5"W x 6.5"L x 22"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215054591 GTIN: 00691215054591
Warranty: -- Shipping Weight: 14 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Min Uniform Plate Weight (lb.): 400 Uniform Working Load Limit (lb.): 2,000 Throat Depth (in.): 3
Bale Opening (in.): 3.00 Maximum Jaw Opening (in.): 1-1/4 Overall Thickness (in.): 2-1/4
Clamp Lock Mechanism: Automatic Minimum Plate Thickness (in.): 0 Maximum Plate Thickness (in.): 0.8
