Model Details

CST-CP-S-400X412

Printer Friendly
CST-CP-S-400X412

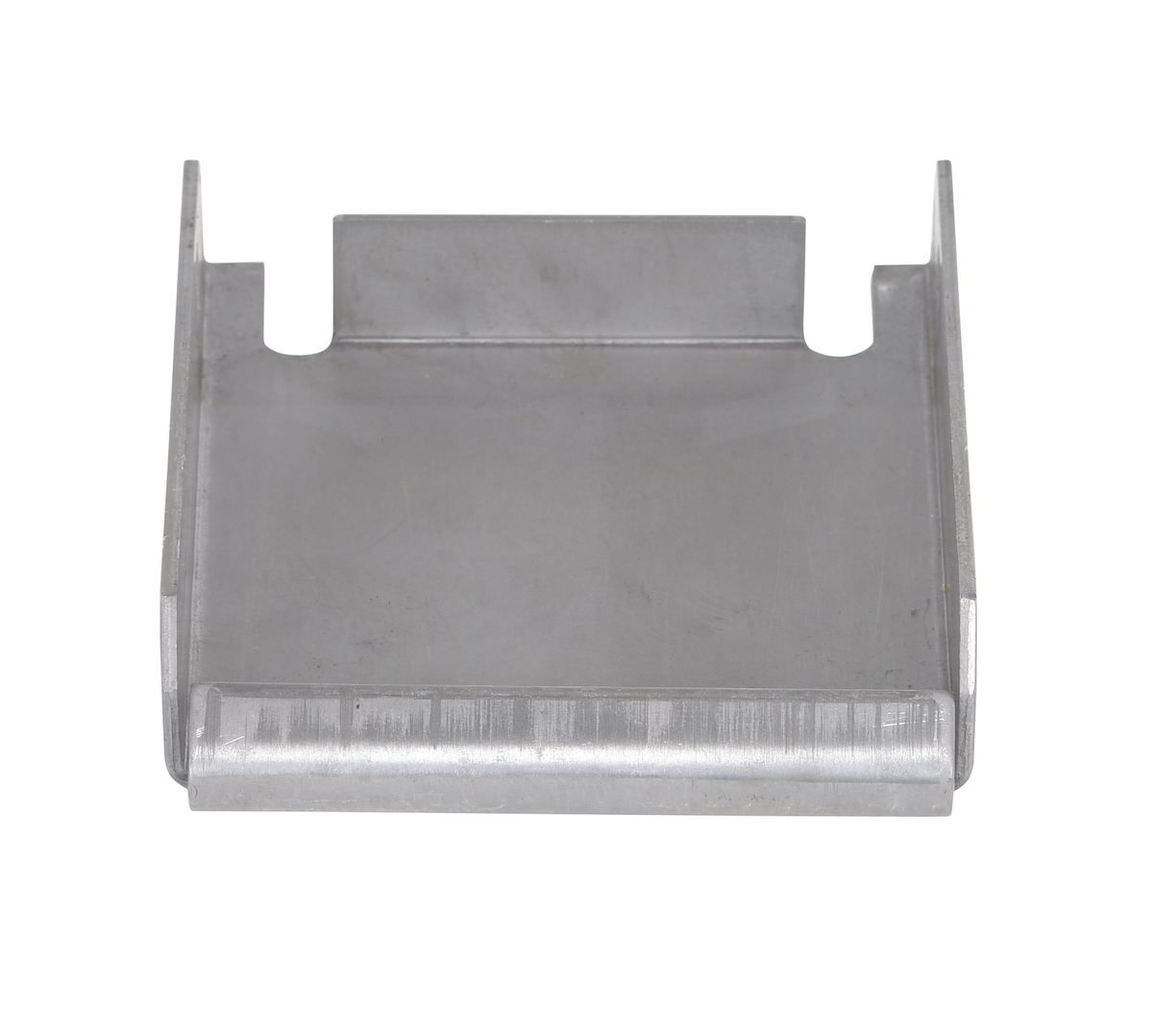

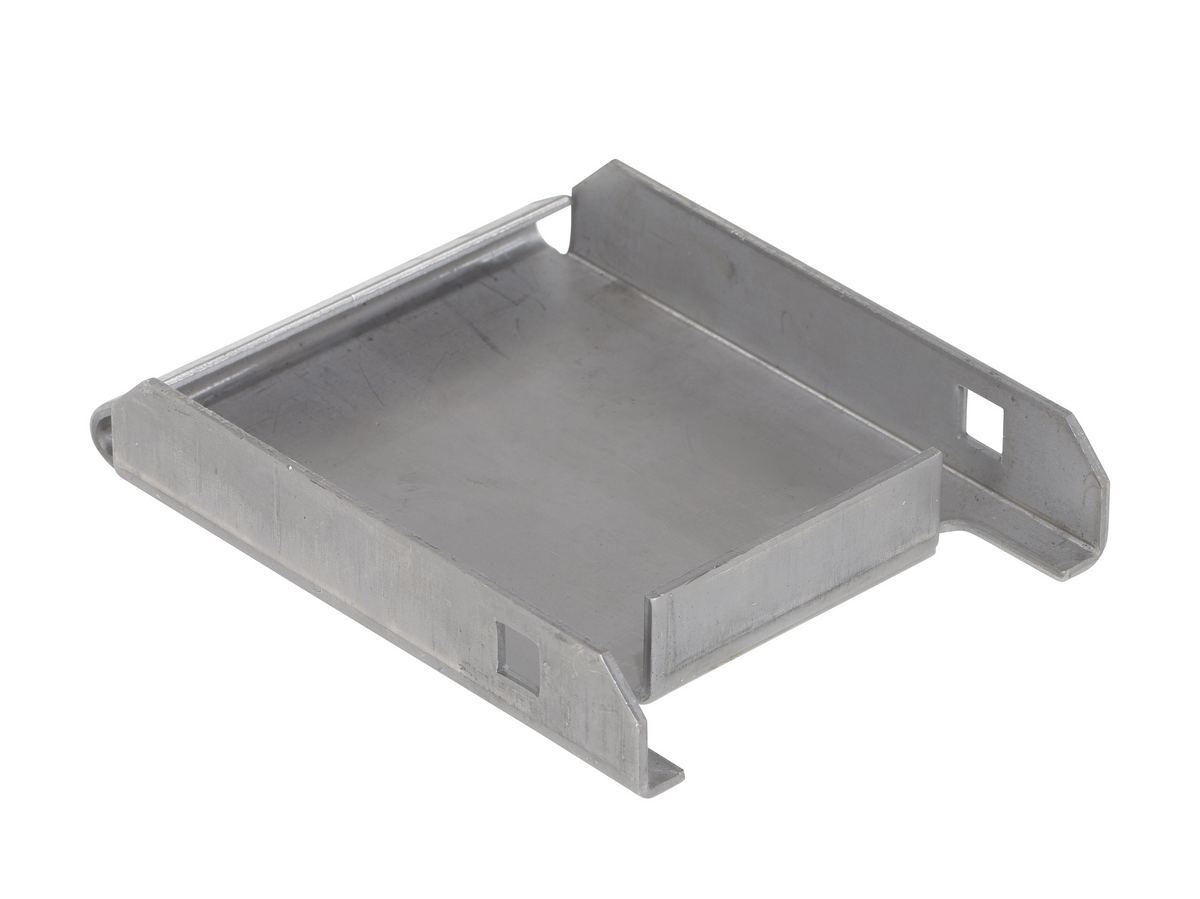

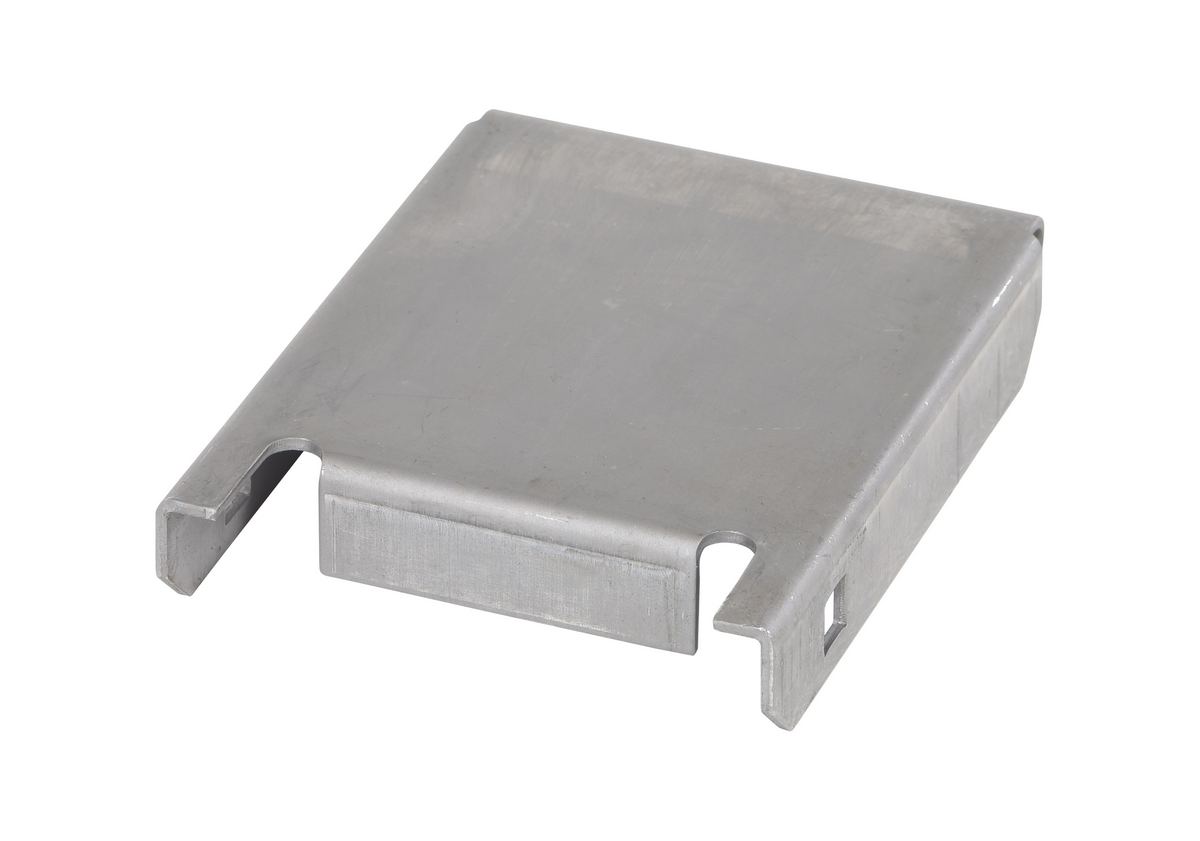

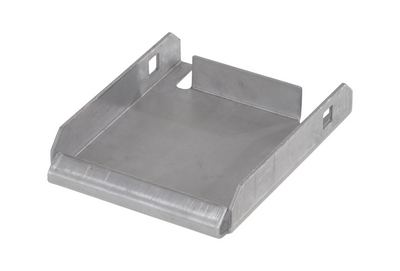

Steel Caster Pad 4 In. x 4-1/2 In. Top Plate Gray

Caster pads are a nice addition to existing or new carts. Caster pads make the transition between casters quick and simple. Instead of using multiple hardware sets the caster pads allow casters to be connected to the units with a single pin and bolt connection. Simply weld the pad to the bottom of the cart in the position where the casters will be placed. The casters then fit snugly inside of the caster pad. With a single nut and bolt, the caster is held securely in place.

  • Pre-drilled caster attachment holes
  • Durable steel construction with unpainted finish
  • Uses 3/8" x 5" bolt and nut combo to secure caster to plate
  • Designed perfectly for corner edges
Total Ship Wt.(lbs.): 1 (only 1 package) Size: 4.375"W x 5.6875"L x 0.9375"H Color: GRAY

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: CST-CP-S-400X412
CST-CP-S-400X412

Steel Caster Pad 4 In. x 4-1/2 In. Top Plate Gray

Caster pads are a nice addition to existing or new carts. Caster pads make the transition between casters quick and simple. Instead of using multiple hardware sets the caster pads allow casters to be connected to the units with a single pin and bolt connection. Simply weld the pad to the bottom of the cart in the position where the casters will be placed. The casters then fit snugly inside of the caster pad. With a single nut and bolt, the caster is held securely in place.

  • Pre-drilled caster attachment holes
  • Durable steel construction with unpainted finish
  • Uses 3/8" x 5" bolt and nut combo to secure caster to plate
  • Designed perfectly for corner edges
Dimensions: 4.375"W x 5.6875"L x 0.9375"H Sell UOM: EA-Each Color: GRAY
Material: Steel UPC: 691215363365 GTIN: 00691215363365
Warranty: -- Shipping Weight: 1 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
