CYL-2-FP

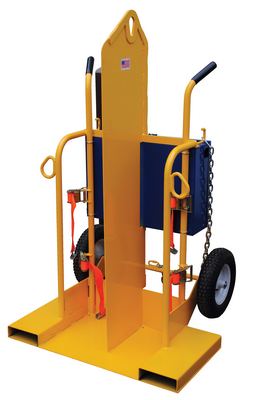

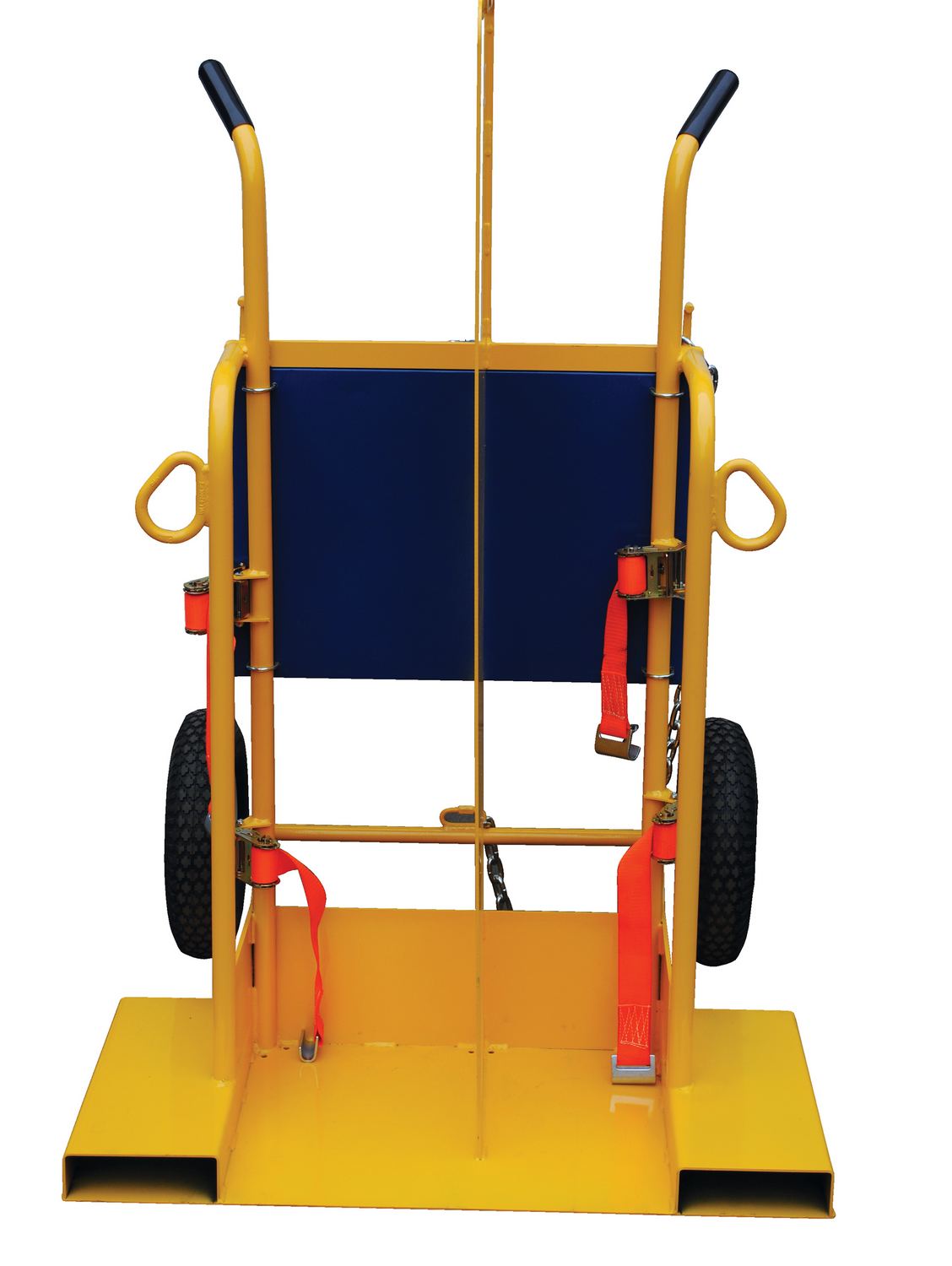

Steel Fire Proof Welding Torch Cart 34-9/16 In. x 40-1/4 In. x 66-3/8 In. 500 Lb. Capacity Yellow

The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Brackets are included for holding cutting torch and hose. Sturdy handles and large wheels for tilt-n-go portability. This unit includes lockable storage box for regulators. Box includes hose opening so regulator does not need to be disconnected for storage. Overhead lift eye. Fork pockets for transportation. Unit has fire protection marinate 1 (one) material which provides a thirty (30) minute fire protection barrier as prescribed by OSHA standards 1910.253 and 1926.350. Welded steel construction with painted finish. Not designed for use as a storage means for gas cylinders.

  • Steel brackets safely hold cutting torch & hoses
  • OSHA standards 1910.253 and 1926.353
  • Heavy-duty ratchet straps holds tanks in compartment
  • Lockable storage box for regulators
Total Ship Wt.(lbs.): 305 (only 1 package) Size: 40.25"W x 34.5625"L x 66.375"H Color: Yellow

Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 Wheel (qty.): 2
Wheel Width (in.): 4 Wheel Bearings (in.): 5/8 Wheel Type: Pneumatic
Material Thickness (in.): 7/16 Maximum Eye Diameter (in.): 2 Fork Pocket Width (in.): 7-1/2
Fork Pocket Height (in.): 2-9/16 Ratchet Strap Length (in.): 37 Base Plate Length (in.): 19-1/2
Base Plate Usable Quantity/Width (in.): (2) 12-3/4, 10-7/16 Cylinder Capacity (quantity): 2 For Use With: Fork Truck
Handle Type: Double Max. Tank Diameter Acetylene (cubic feet): 397, #5 Tank Max. Tank Diameter Oxygen (mL): 260, #T Bottle
Storage Box Length (in.): 7-1/8 Storage Box Width (in.): 26-3/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-2-FP
CYL-2-FP

Steel Fire Proof Welding Torch Cart 34-9/16 In. x 40-1/4 In. x 66-3/8 In. 500 Lb. Capacity Yellow

The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Brackets are included for holding cutting torch and hose. Sturdy handles and large wheels for tilt-n-go portability. This unit includes lockable storage box for regulators. Box includes hose opening so regulator does not need to be disconnected for storage. Overhead lift eye. Fork pockets for transportation. Unit has fire protection marinate 1 (one) material which provides a thirty (30) minute fire protection barrier as prescribed by OSHA standards 1910.253 and 1926.350. Welded steel construction with painted finish. Not designed for use as a storage means for gas cylinders.

  • Steel brackets safely hold cutting torch & hoses
  • OSHA standards 1910.253 and 1926.353
  • Heavy-duty ratchet straps holds tanks in compartment
  • Lockable storage box for regulators
Dimensions: 40.25"W x 34.5625"L x 66.375"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215076517 GTIN: 00691215076517
Warranty: -- Shipping Weight: 305 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 Wheel (qty.): 2
Wheel Width (in.): 4 Wheel Bearings (in.): 5/8 Wheel Type: Pneumatic
Material Thickness (in.): 7/16 Maximum Eye Diameter (in.): 2 Fork Pocket Width (in.): 7-1/2
Fork Pocket Height (in.): 2-9/16 Ratchet Strap Length (in.): 37 Base Plate Length (in.): 19-1/2
Base Plate Usable Quantity/Width (in.): (2) 12-3/4, 10-7/16 Cylinder Capacity (quantity): 2 For Use With: Fork Truck
Handle Type: Double Max. Tank Diameter Acetylene (cubic feet): 397, #5 Tank Max. Tank Diameter Oxygen (mL): 260, #T Bottle
Storage Box Length (in.): 7-1/8 Storage Box Width (in.): 26-3/16
