CYL-DLX-1-HR

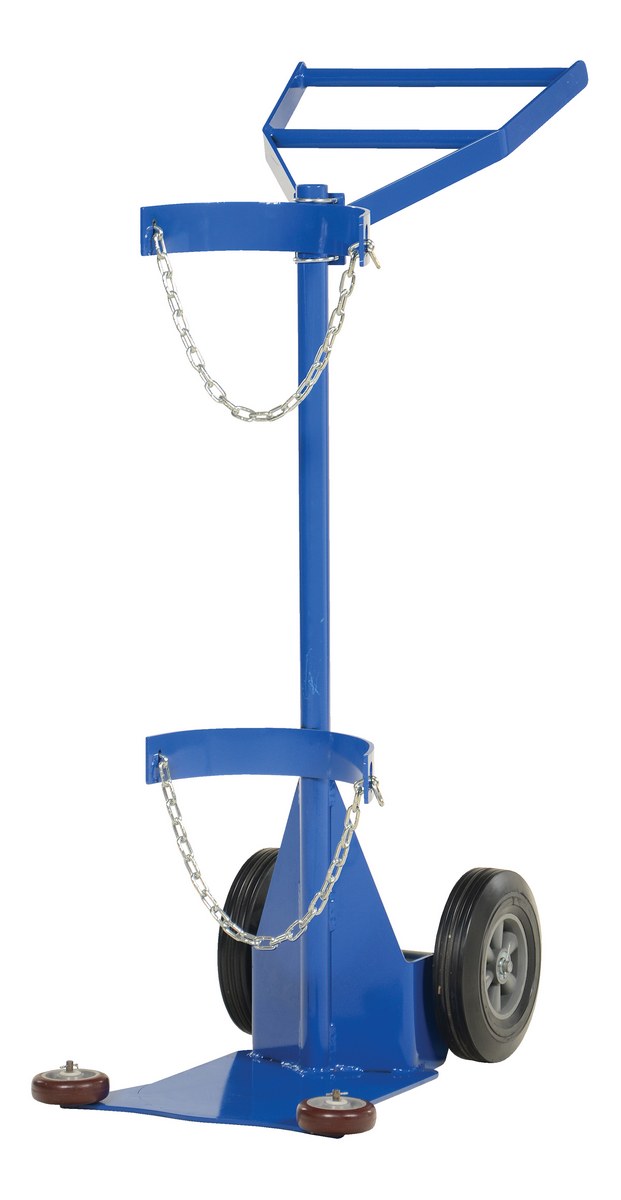

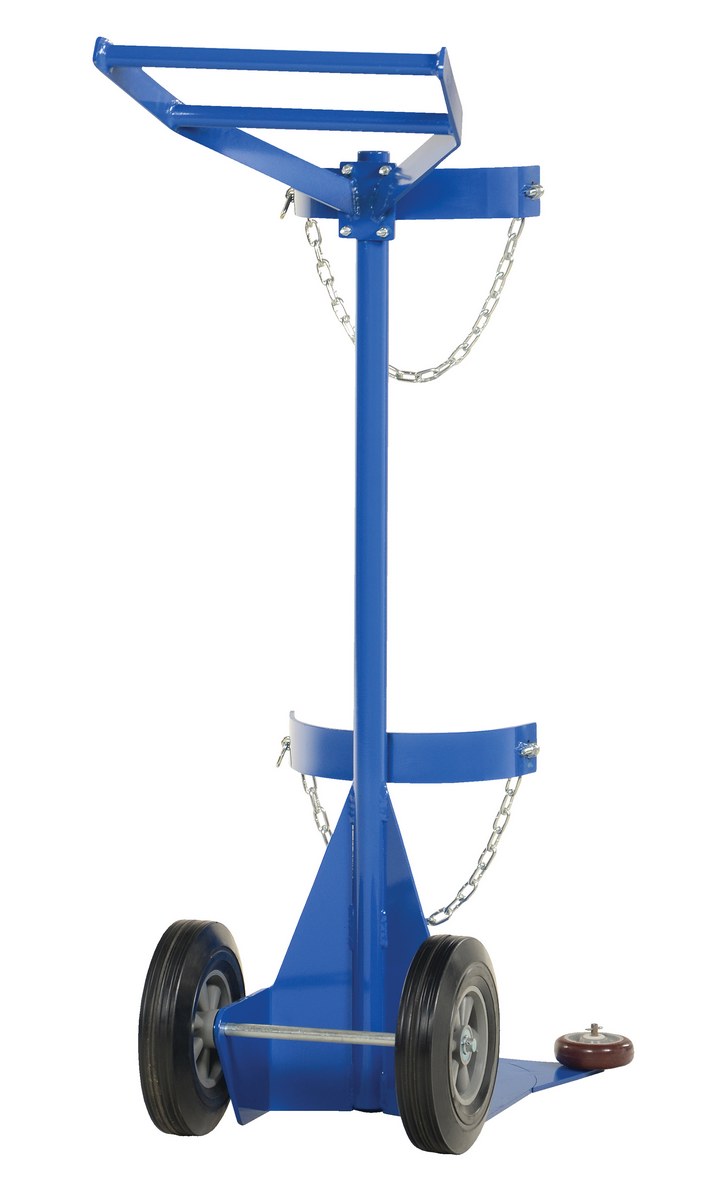

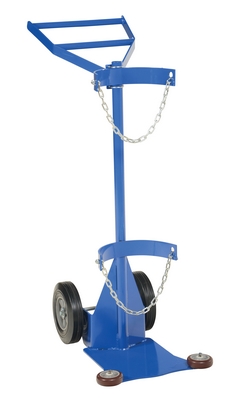

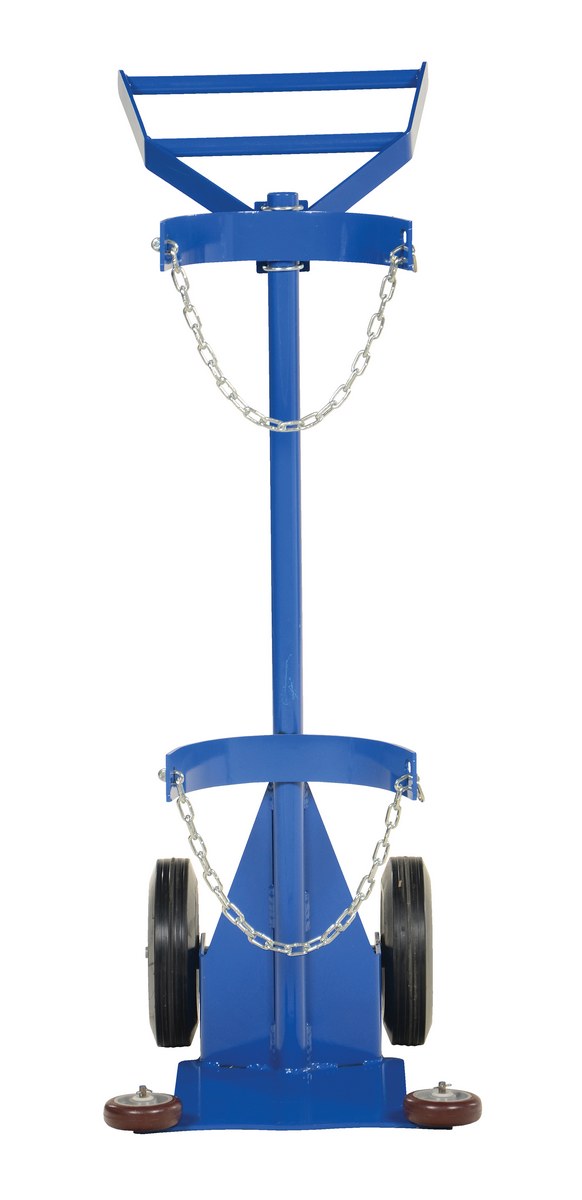

Steel Portable Deluxe Cylinder Lifter with Hard Rubber Wheels 26-15/16 In. x 19 In. x 51-3/8 In. 500 Lb. Blue

The Cylinder dolly transports cylinders from workstation to workstation. This deluxe version feature roller guides attached to the nose plate. The hard rubber roller guides allow for easier entry onto the nose plate. Secure the cylinder with the included restraint chains. Tilt unit back and transport.

  • Use in industrial applications for optimal results
  • Cylinder dolly transports cylinders for ideal operation
  • Includes restraint chains in order to secure cylinders for maximum efficiency
  • Features hard rubber roller guides which allow for entry on nose plate
Total Ship Wt.(lbs.): 78 (only 1 package) Size: 19"W x 26.9375"L x 52.125"H Color: Blue

Uniform Capacity (lb.): 500 Maximum Cylinder Diameter (in.): 11-1/2 Nose Plate Width (in.): 12
Nose Plate Depth (in.): 15-1/2 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2 Wheel Type: Hard Rubber
Roller Guide Quantity/Diameter/Height (in.): (2) 4 x 1-1/4 Roller Type: Hard Rubber

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-DLX-1-HR
CYL-DLX-1-HR

Steel Portable Deluxe Cylinder Lifter with Hard Rubber Wheels 26-15/16 In. x 19 In. x 51-3/8 In. 500 Lb. Blue

The Cylinder dolly transports cylinders from workstation to workstation. This deluxe version feature roller guides attached to the nose plate. The hard rubber roller guides allow for easier entry onto the nose plate. Secure the cylinder with the included restraint chains. Tilt unit back and transport.

  • Use in industrial applications for optimal results
  • Cylinder dolly transports cylinders for ideal operation
  • Includes restraint chains in order to secure cylinders for maximum efficiency
  • Features hard rubber roller guides which allow for entry on nose plate
Dimensions: 19"W x 26.9375"L x 52.125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215064880 GTIN: 00691215064880
Warranty: -- Shipping Weight: 78 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Maximum Cylinder Diameter (in.): 11-1/2 Nose Plate Width (in.): 12
Nose Plate Depth (in.): 15-1/2 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2 Wheel Type: Hard Rubber
Roller Guide Quantity/Diameter/Height (in.): (2) 4 x 1-1/4 Roller Type: Hard Rubber
