Model Details

CYL-EH-FF

Printer Friendly
CYL-EH-FF

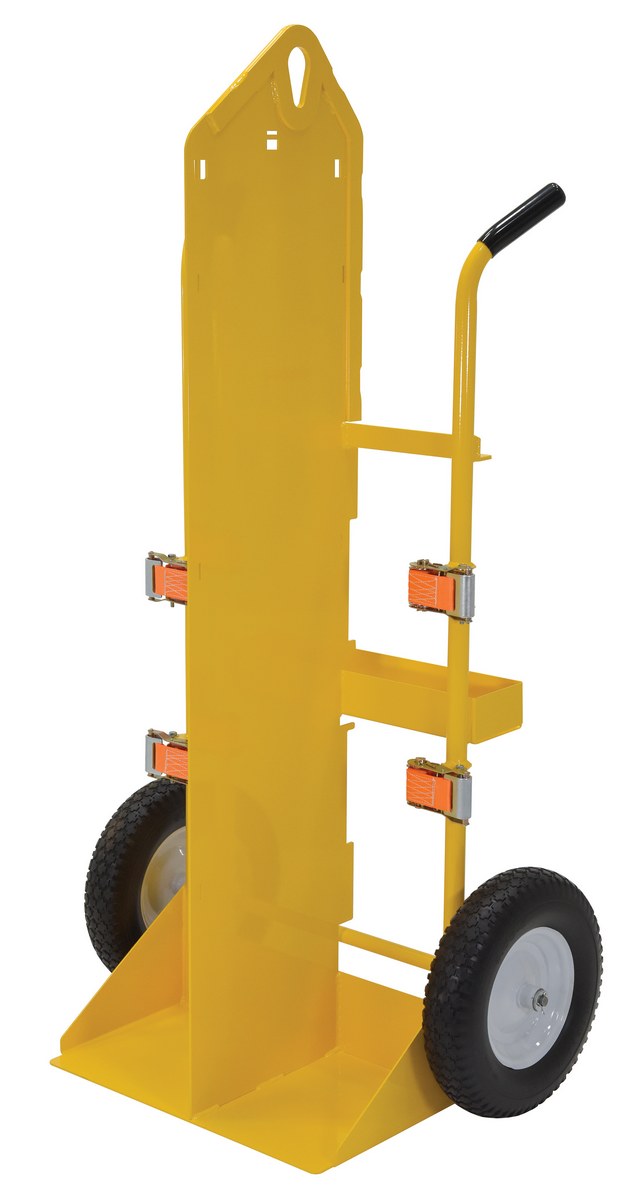

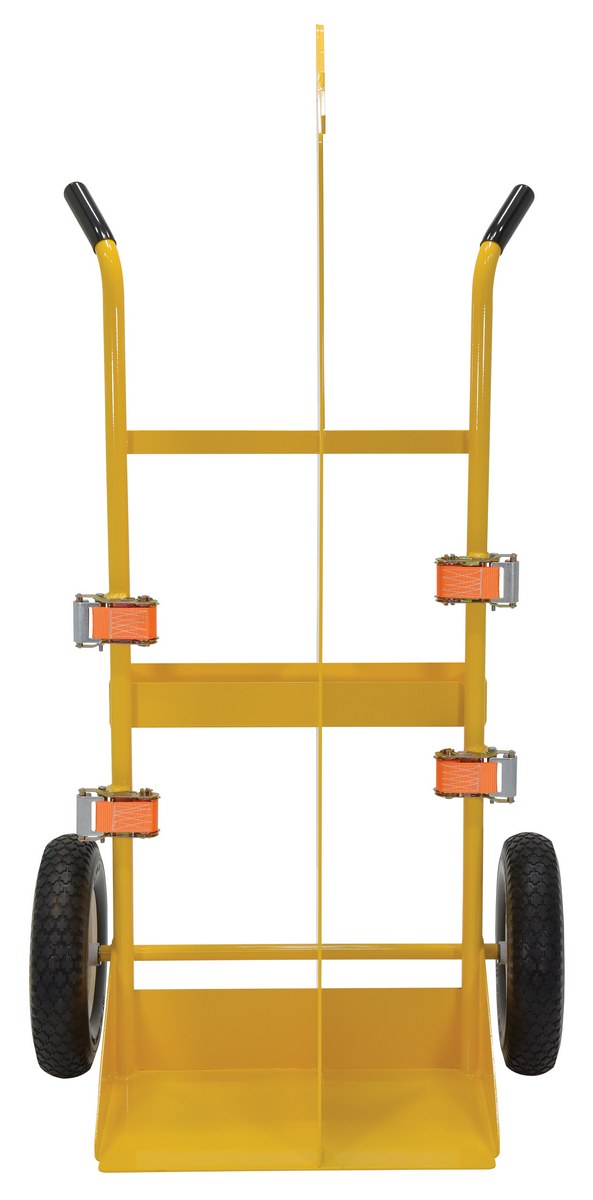

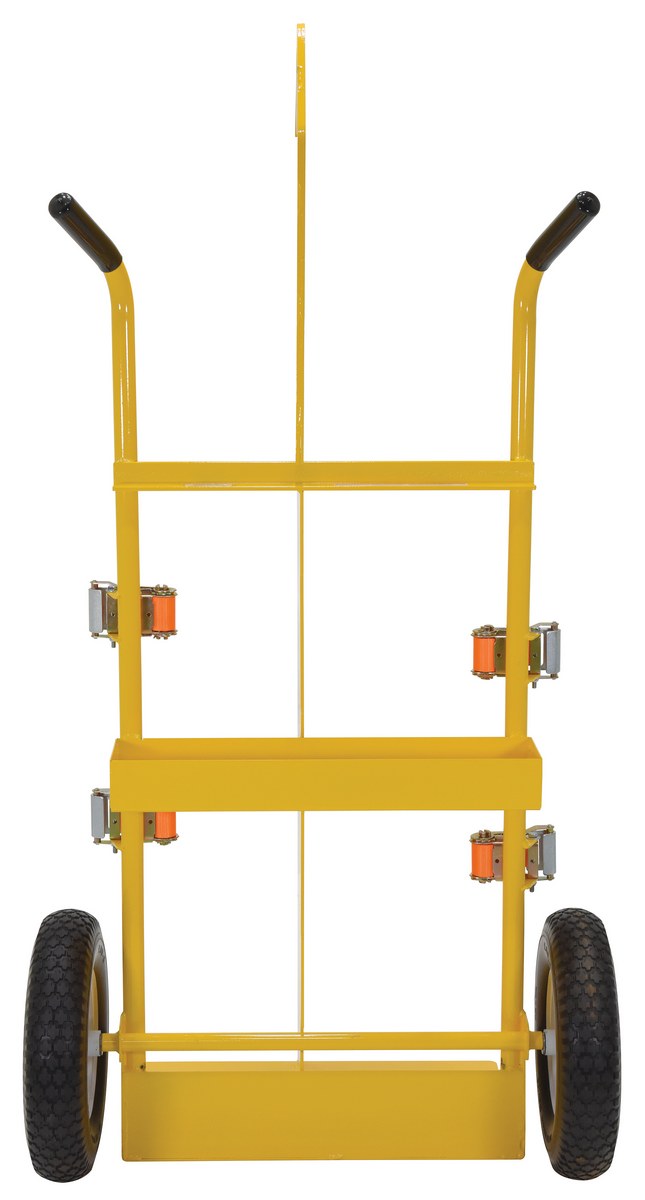

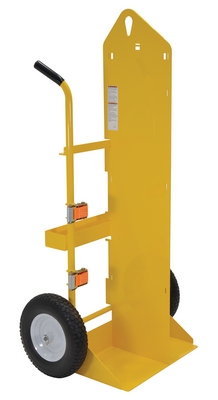

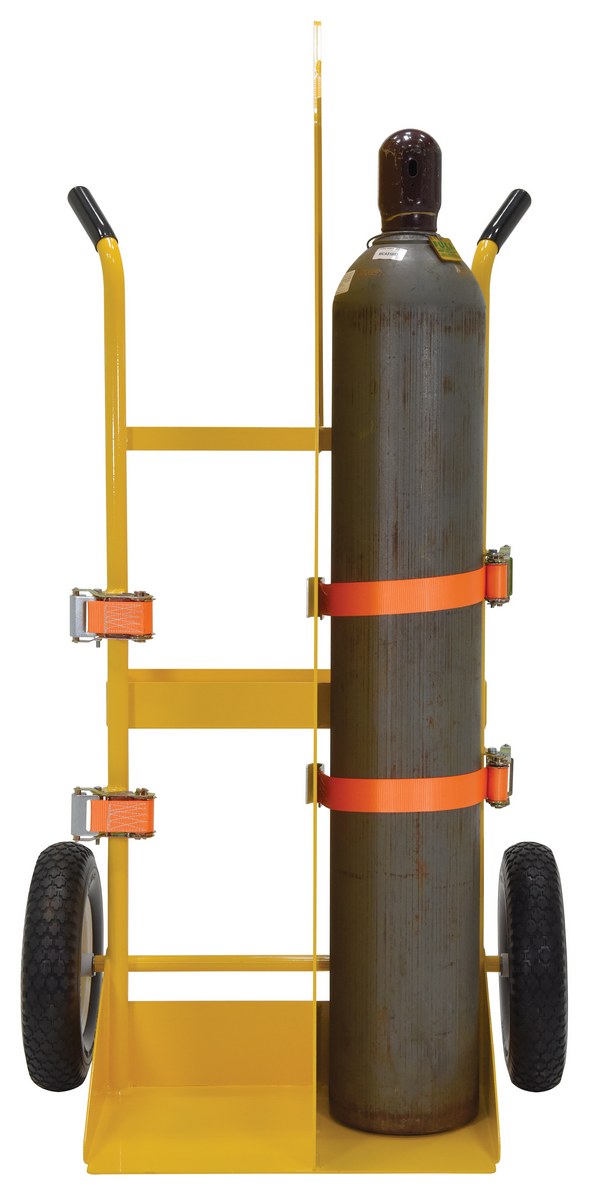

Steel Torch Cart-Lift Eye with Foam Filled Wheels 22-13/16 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow

The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Convenient open-top storage tray. Brackets are included for holding cutting torch and hose. Sturdy handles and large wheels for tilt-n-go portability. Welded steel construction with powder coat finish. Not designed for use as a storage means for gas cylinders.

  • Steel brackets safely hold cutting torch & hoses
  • Cylinder dolly transports cylinders and cutting torch from workstation to workstation
  • Heavy-duty ratchet straps holds tanks in compartment
  • Open-top storage tray conveniently holds tools & other materials
Total Ship Wt.(lbs.): 185 (only 1 package) Size: 34.5"W x 22.8125"L x 66.375"H Color: Yellow

Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 Wheel (qty.): 2
Wheel Width (in.): 2-1/2 Wheel Bearings (in.): 5/8 Wheel Type: Foam Filled
Material Thickness (in.): 7/16 Cylinder Capacity (qty.): 2 Base Plate Usable Quantity/Width (in.): (2) 13-3/8, 10-7/16
Base Plate Length (in.): 14-5/16 Handle Type: Double Includes: Ratchet Straps
Max. Tank Diameter Acetylene (cubic feet): 397, #5 Tank Max. Tank Diameter Oxygen (mL): 260, #T Bottle Tool Tray Length (in.): 24
Tool Tray Width (in.): 5 Tool Tray Height (in.): 3 Maximum Eye Diameter (in.): 2
Overall Width (in.): 34-1/2 Overall Depth (in.): 22-13/16 Overall Height (in.): 66-3/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-EH-FF
CYL-EH-FF

Steel Torch Cart-Lift Eye with Foam Filled Wheels 22-13/16 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow

The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Convenient open-top storage tray. Brackets are included for holding cutting torch and hose. Sturdy handles and large wheels for tilt-n-go portability. Welded steel construction with powder coat finish. Not designed for use as a storage means for gas cylinders.

  • Steel brackets safely hold cutting torch & hoses
  • Cylinder dolly transports cylinders and cutting torch from workstation to workstation
  • Heavy-duty ratchet straps holds tanks in compartment
  • Open-top storage tray conveniently holds tools & other materials
Dimensions: 34.5"W x 22.8125"L x 66.375"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215085588 GTIN: 00691215085588
Warranty: -- Shipping Weight: 185 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Wheel Diameter (in.): 16 Wheel (qty.): 2
Wheel Width (in.): 2-1/2 Wheel Bearings (in.): 5/8 Wheel Type: Foam Filled
Material Thickness (in.): 7/16 Cylinder Capacity (qty.): 2 Base Plate Usable Quantity/Width (in.): (2) 13-3/8, 10-7/16
Base Plate Length (in.): 14-5/16 Handle Type: Double Includes: Ratchet Straps
Max. Tank Diameter Acetylene (cubic feet): 397, #5 Tank Max. Tank Diameter Oxygen (mL): 260, #T Bottle Tool Tray Length (in.): 24
Tool Tray Width (in.): 5 Tool Tray Height (in.): 3 Maximum Eye Diameter (in.): 2
Overall Width (in.): 34-1/2 Overall Depth (in.): 22-13/16 Overall Height (in.): 66-3/8
