CYL-EX-18-E

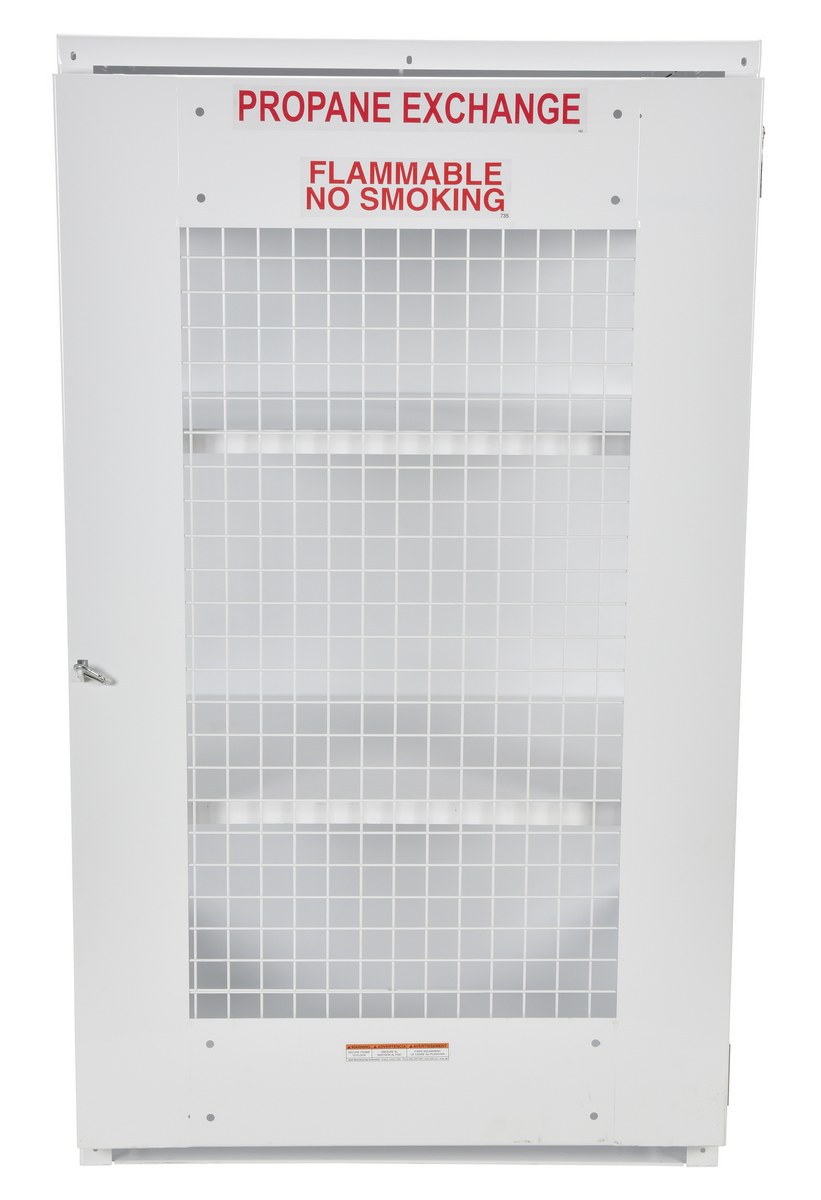

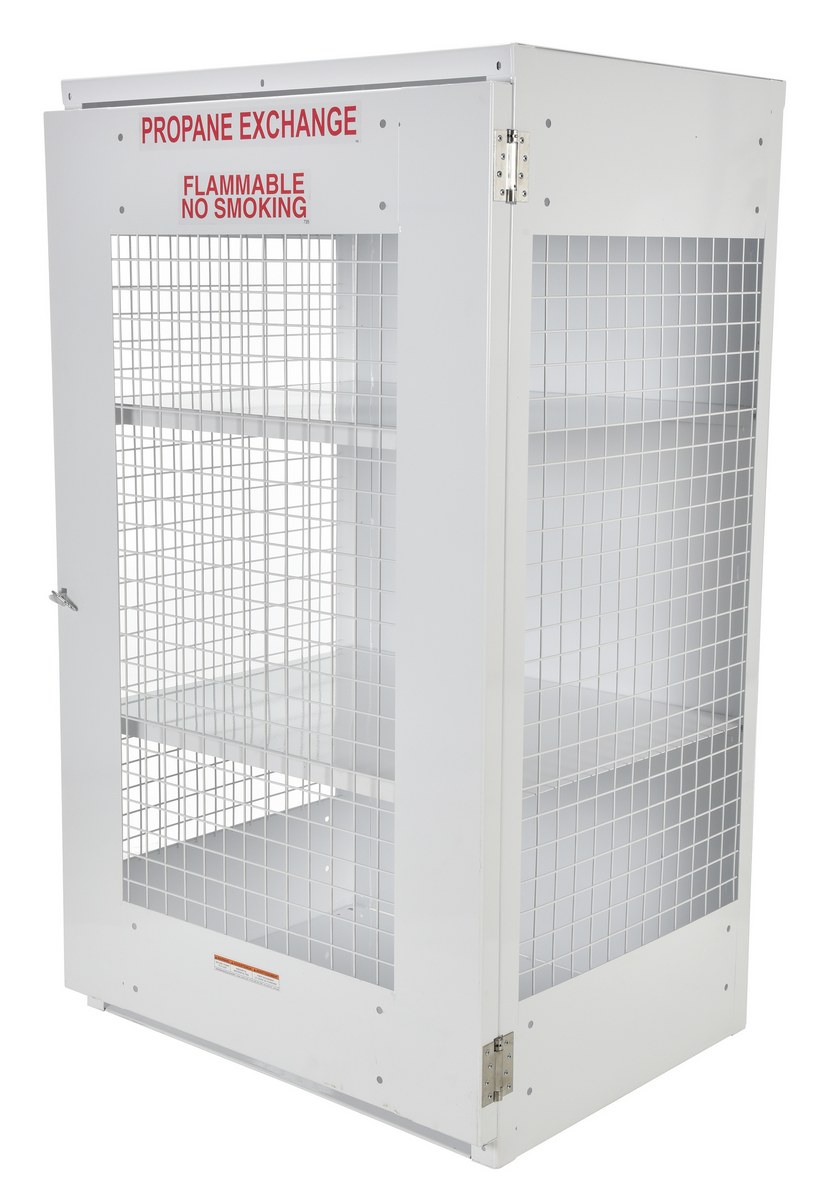

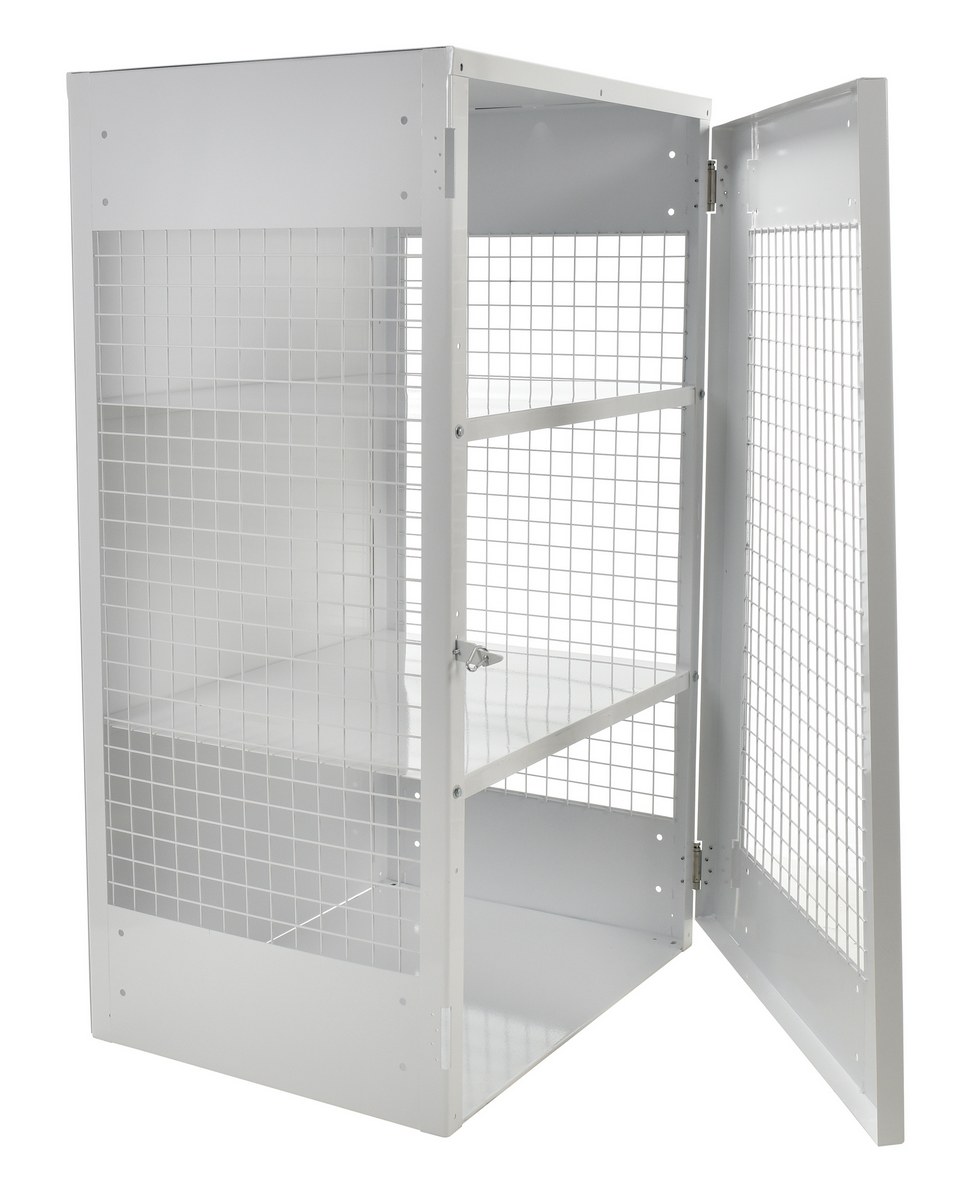

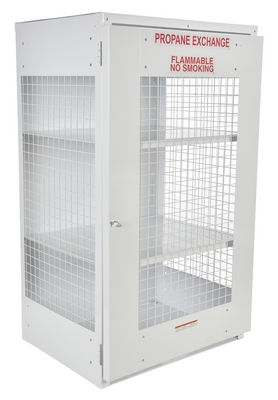

Steel Propane Exchange Cylinder Storage Cabinets with Mesh Door 18 Cylinder Capacity White

Durable steel propane exchange Cylinder storage cabinet for storage of standard propane gas cylinders. The sides are made of expanded steel mesh, the bottom, back and top are made of solid sheet steel. The front door is an expanded steel mesh panel. The door features stainless-steel spring-loaded hinges.

  • Lockable door (padlock not included)
  • Stainless-steel spring-loaded hinges do not rust over time
  • Design allows inside contents to be viewed
  • Expanded steel mesh front door provides added protection
Total Ship Wt.(lbs.): 393 (only 1 package) Size: 40"W x 32.125"L x 68.25"H Color: White

Uniform Capacity (lb.): 510 Shelf Uniform Capacity (lb.): 170 Cylinder Capacity (qty.): 18
Cylinders Per Shelf (qty.): 6 Bottom Shelf Clearance (in.): 21-7/8 Middle Shelf Clearance (in.): 21-1/8
Top Shelf Clearance (in.): 20-3/8 Shelves (qty.): 2 Standard Propane Tank (lb.): 20
Door Material: Expanded Steel Mesh door OSHA Approved: Yes Signage: Propane Exchange, Flammable, No Smoking

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-EX-18-E
CYL-EX-18-E

Steel Propane Exchange Cylinder Storage Cabinets with Mesh Door 18 Cylinder Capacity White

Durable steel propane exchange Cylinder storage cabinet for storage of standard propane gas cylinders. The sides are made of expanded steel mesh, the bottom, back and top are made of solid sheet steel. The front door is an expanded steel mesh panel. The door features stainless-steel spring-loaded hinges.

  • Lockable door (padlock not included)
  • Stainless-steel spring-loaded hinges do not rust over time
  • Design allows inside contents to be viewed
  • Expanded steel mesh front door provides added protection
Dimensions: 40"W x 32.125"L x 68.25"H Sell UOM: EA-Each Color: White
Material: Steel UPC: 691215085632 GTIN: 00691215085632
Warranty: -- Shipping Weight: 393 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 510 Shelf Uniform Capacity (lb.): 170 Cylinder Capacity (qty.): 18
Cylinders Per Shelf (qty.): 6 Bottom Shelf Clearance (in.): 21-7/8 Middle Shelf Clearance (in.): 21-1/8
Top Shelf Clearance (in.): 20-3/8 Shelves (qty.): 2 Standard Propane Tank (lb.): 20
Door Material: Expanded Steel Mesh door OSHA Approved: Yes Signage: Propane Exchange, Flammable, No Smoking
