Model Details

CYL-H-4-KD

Printer Friendly
CYL-H-4-KD

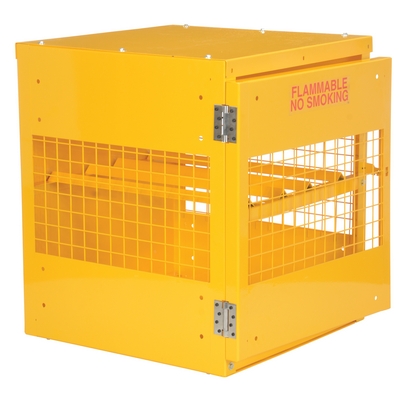

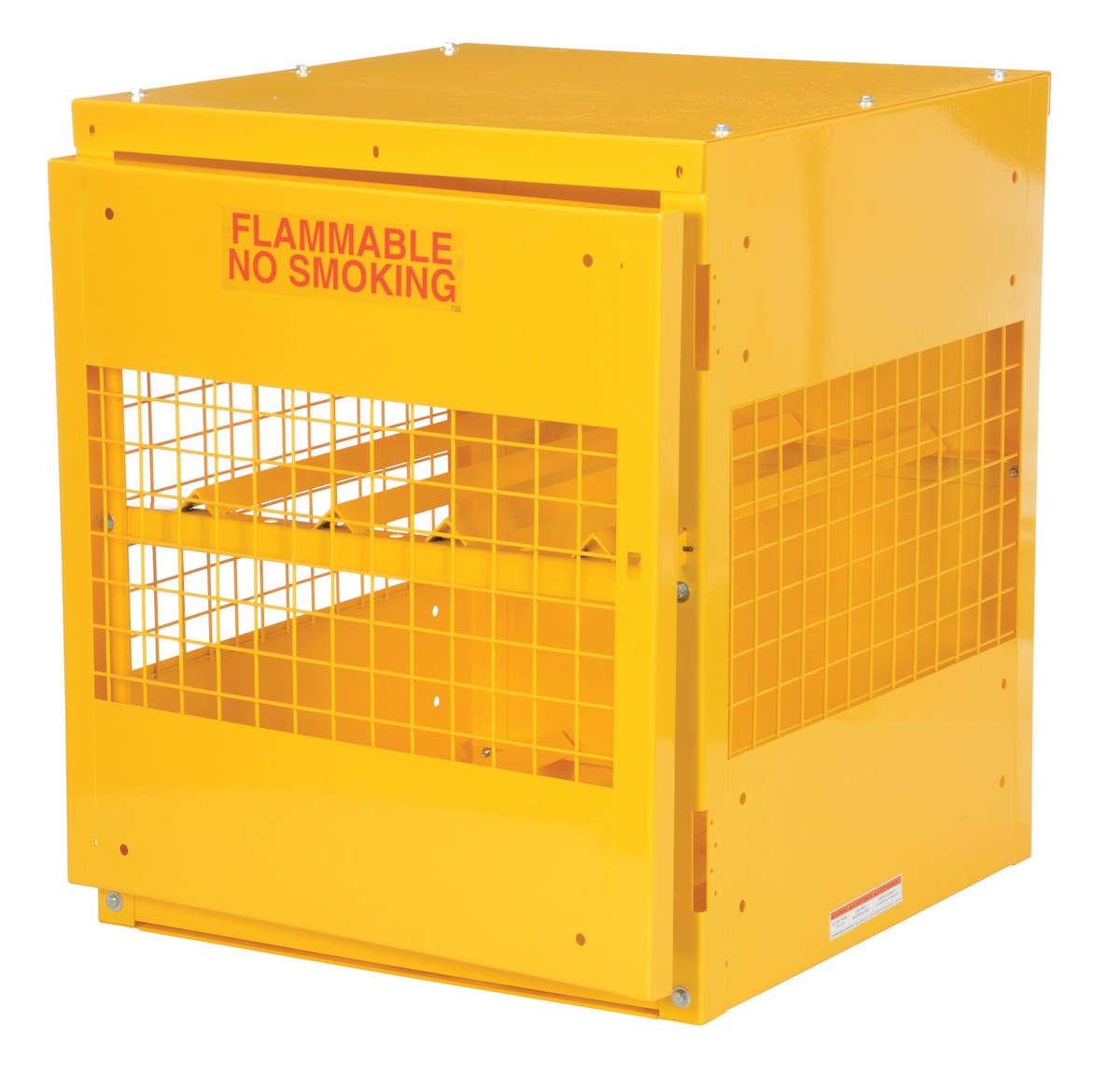

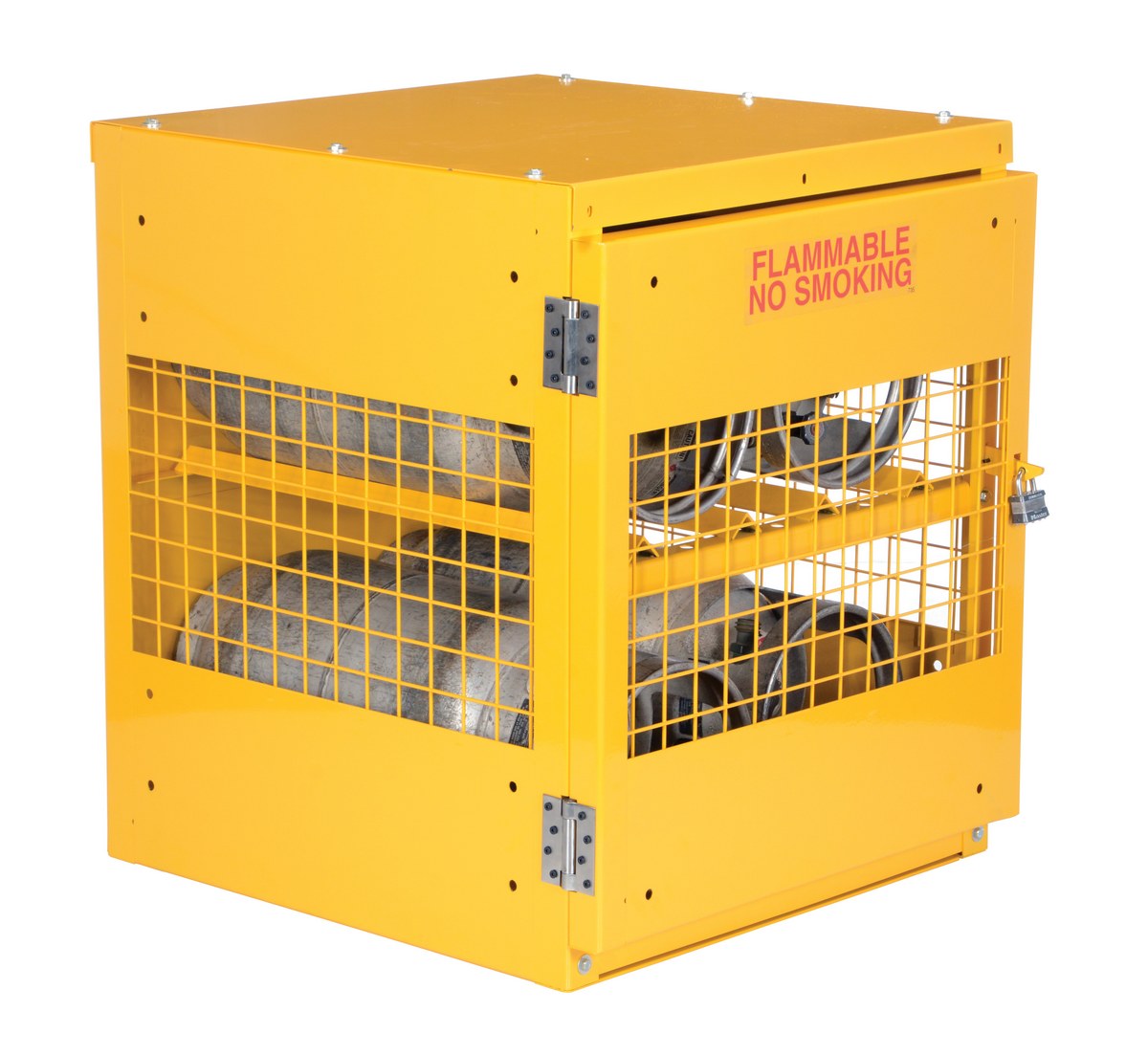

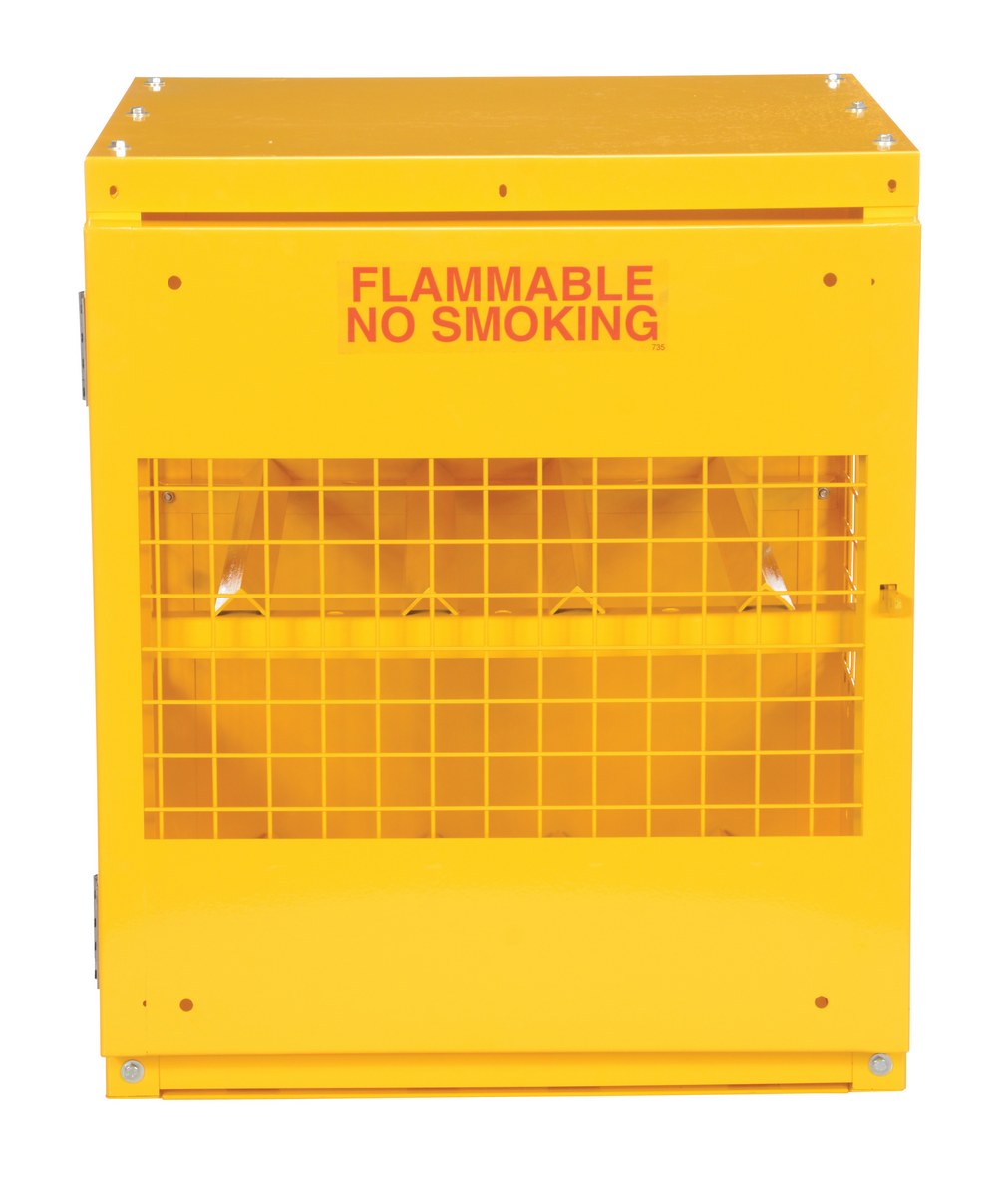

Steel Knockdown Horizontal Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Steel cabinet for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel mesh. Bottom, back and top is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cylinders. Rugged steel construction with safety yellow finish. This cabinet is shipped knock down and requires user assembly.

  • Ideal for horizontal storage of other gas style cylinders
  • Design allows inside contents to be viewed
  • Includes red lettered signage noting "flammable - no smoking"
  • Meets OSHA 1910 110 requirements
Total Ship Wt.(lbs.): 184 (only 1 package) Size: 30"W x 32"L x 35.25"H Color: Yellow

Uniform Capacity (lb.): 180 Shelf Uniform Capacity (lb.): 90 Uniform Cylinder Capacity (qty.): 4
Country of use: USA OSHA: 1910.110 (f)(6)(ii) ANSI: NFPA 55 + 58;
CGA: P-1 Signage: FLAMMABLE NO SMOKING Design: Horizontal

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-H-4-KD
CYL-H-4-KD

Steel Knockdown Horizontal Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Steel cabinet for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel mesh. Bottom, back and top is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cylinders. Rugged steel construction with safety yellow finish. This cabinet is shipped knock down and requires user assembly.

  • Ideal for horizontal storage of other gas style cylinders
  • Design allows inside contents to be viewed
  • Includes red lettered signage noting "flammable - no smoking"
  • Meets OSHA 1910 110 requirements
Dimensions: 30"W x 32"L x 35.25"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215064958 GTIN: 00691215064958
Warranty: -- Shipping Weight: 184 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 180 Shelf Uniform Capacity (lb.): 90 Uniform Cylinder Capacity (qty.): 4
Country of use: USA OSHA: 1910.110 (f)(6)(ii) ANSI: NFPA 55 + 58;
CGA: P-1 Signage: FLAMMABLE NO SMOKING Design: Horizontal
