Model Details

CYL-H8-V510-KD

Printer Friendly
CYL-H8-V510-KD

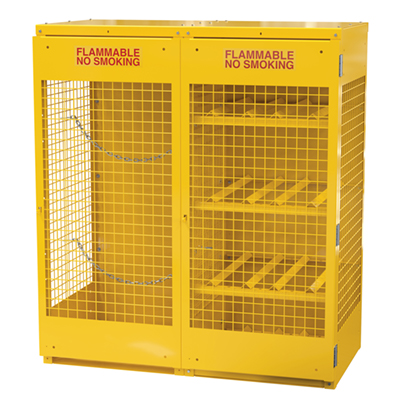

Steel Knock Down Horizontal and Vertical Cylinder Cabinet 32 In. x 60 In. x 68-1/4 In. 8 Horizontal/10 Vertical Capacity Yellow

Steel cabinet for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel mesh. Bottom, back and top is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cylinders. Rugged steel construction with safety yellow finish. This cabinet is shipped knock down and requires user assembly.

  • Meets OSHA 1910 110 (f)(6)(ii) and CSA B-149 2
  • Ideal for vertical storage of other gas style cylinders
  • Includes red lettered signage noting "flammable - no smoking"
  • Includes lockable doors lag holes in base for security
Total Ship Wt.(lbs.): 505 (only 1 package) Size: 60"W x 32"L x 68.25"H Color: Yellow

Uniform Capacity (lb.): 360 Shelf Uniform Capacity (lb.): 90 Uniform Horizontal Cylinder Capacity (qty.): 8
Uniform Vertical Cylinder Capacity (qty.): 10 OSHA: 1910.110 (f)(6)(ii) ANSI: NFPA 55 + 58
CGA: P-1 Signage: FLAMMABLE NO SMOKING

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-H8-V510-KD
CYL-H8-V510-KD

Steel Knock Down Horizontal and Vertical Cylinder Cabinet 32 In. x 60 In. x 68-1/4 In. 8 Horizontal/10 Vertical Capacity Yellow

Steel cabinet for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel mesh. Bottom, back and top is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cylinders. Rugged steel construction with safety yellow finish. This cabinet is shipped knock down and requires user assembly.

  • Meets OSHA 1910 110 (f)(6)(ii) and CSA B-149 2
  • Ideal for vertical storage of other gas style cylinders
  • Includes red lettered signage noting "flammable - no smoking"
  • Includes lockable doors lag holes in base for security
Dimensions: 60"W x 32"L x 68.25"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215103046 GTIN: 00691215103046
Warranty: -- Shipping Weight: 505 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 360 Shelf Uniform Capacity (lb.): 90 Uniform Horizontal Cylinder Capacity (qty.): 8
Uniform Vertical Cylinder Capacity (qty.): 10 OSHA: 1910.110 (f)(6)(ii) ANSI: NFPA 55 + 58
CGA: P-1 Signage: FLAMMABLE NO SMOKING
