Model Details

D-NS-200-LD

D-NS-200-LD

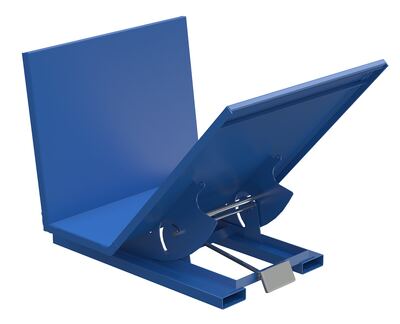

Steel Open Sided Hopper 68-13/16 In. x 353-13/16 In. x 51-13/16 In. 2 Cubic Yard 2000 Lb. Capacity Blue

The open sided hopper is ideal for the material handling industry. A unique design provides an ergonomic solution to transferring and unloading large amounts of oversized items. For best use, lift the loaded or unloaded model by utilizing the fork pockets attached to the underside of the hopper. Upon reaching the destination, simply engage the auto-release lever and the products will flow from the hopper. It then returns to the upright and locked position automatically after being emptied. Hopper must be attached to fork truck when dumping.

  • 2 cubic yard capacity
  • Bumper release for a hands-free unloading
  • Cable is included for manually dumping hopper, if needed
  • Open ended fork pockets
Total Ship Wt.(lbs.): 613 (only 1 package) Size: 53.8125"W x 68.8125"L x 51.8125"H Color: Blue Non-Returnable

Capacity (lb.): 2000 Volume (cu. yds.): 2 Overall Width (in.): 53-13/16
Overall Length (in.): 68-13/16 Overall Height (in.): 51-13/16 Pull Cable length (in.): 48

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: D-NS-200-LD


D-NS-200-LD

Steel Open Sided Hopper 68-13/16 In. x 353-13/16 In. x 51-13/16 In. 2 Cubic Yard 2000 Lb. Capacity Blue

The open sided hopper is ideal for the material handling industry. A unique design provides an ergonomic solution to transferring and unloading large amounts of oversized items. For best use, lift the loaded or unloaded model by utilizing the fork pockets attached to the underside of the hopper. Upon reaching the destination, simply engage the auto-release lever and the products will flow from the hopper. It then returns to the upright and locked position automatically after being emptied. Hopper must be attached to fork truck when dumping.

  • 2 cubic yard capacity
  • Bumper release for a hands-free unloading
  • Cable is included for manually dumping hopper, if needed
  • Open ended fork pockets
Dimensions: 53.8125"W x 68.8125"L x 51.8125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215376310 GTIN: 00691215376310
Warranty: -- Shipping Weight: 613 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Capacity (lb.): 2000 Volume (cu. yds.): 2 Overall Width (in.): 53-13/16
Overall Length (in.): 68-13/16 Overall Height (in.): 51-13/16 Pull Cable length (in.): 48
