Model Details

DCR-205-20

Printer Friendly
DCR-205-20

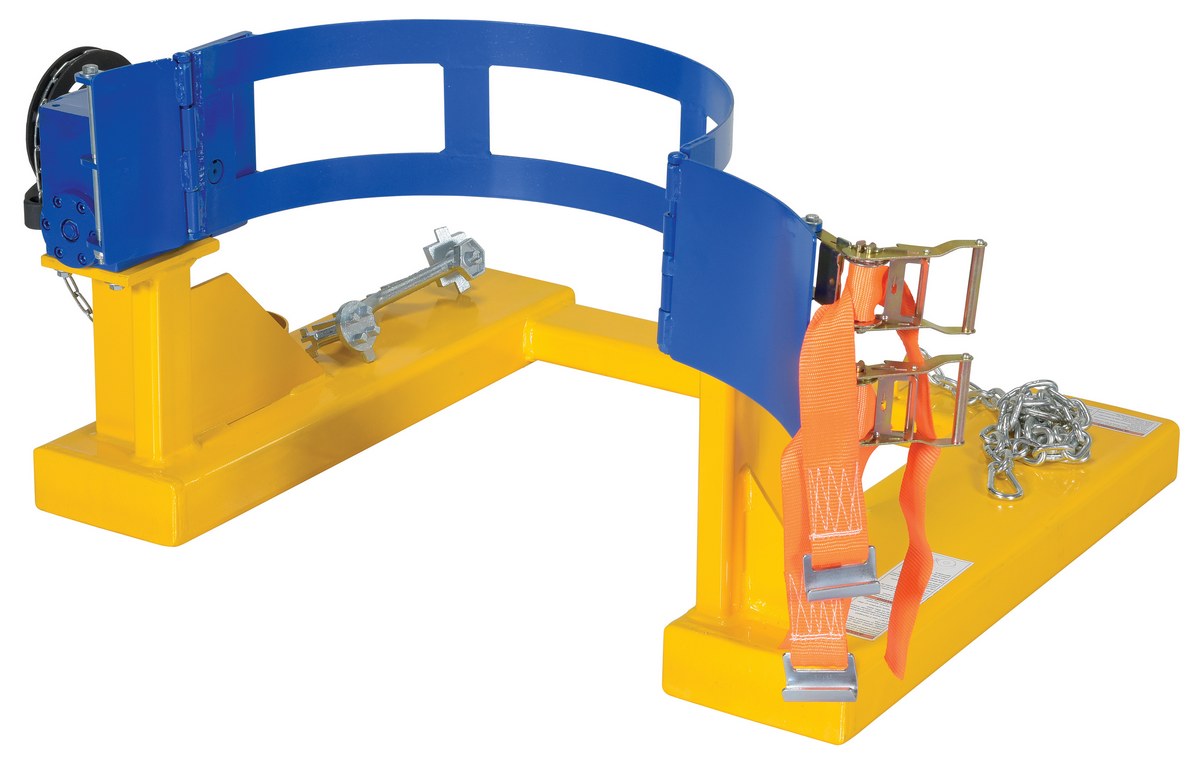

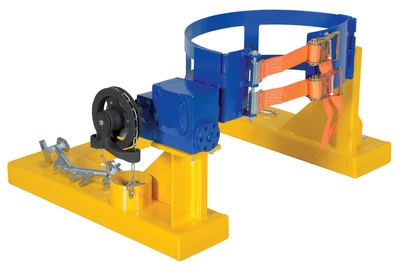

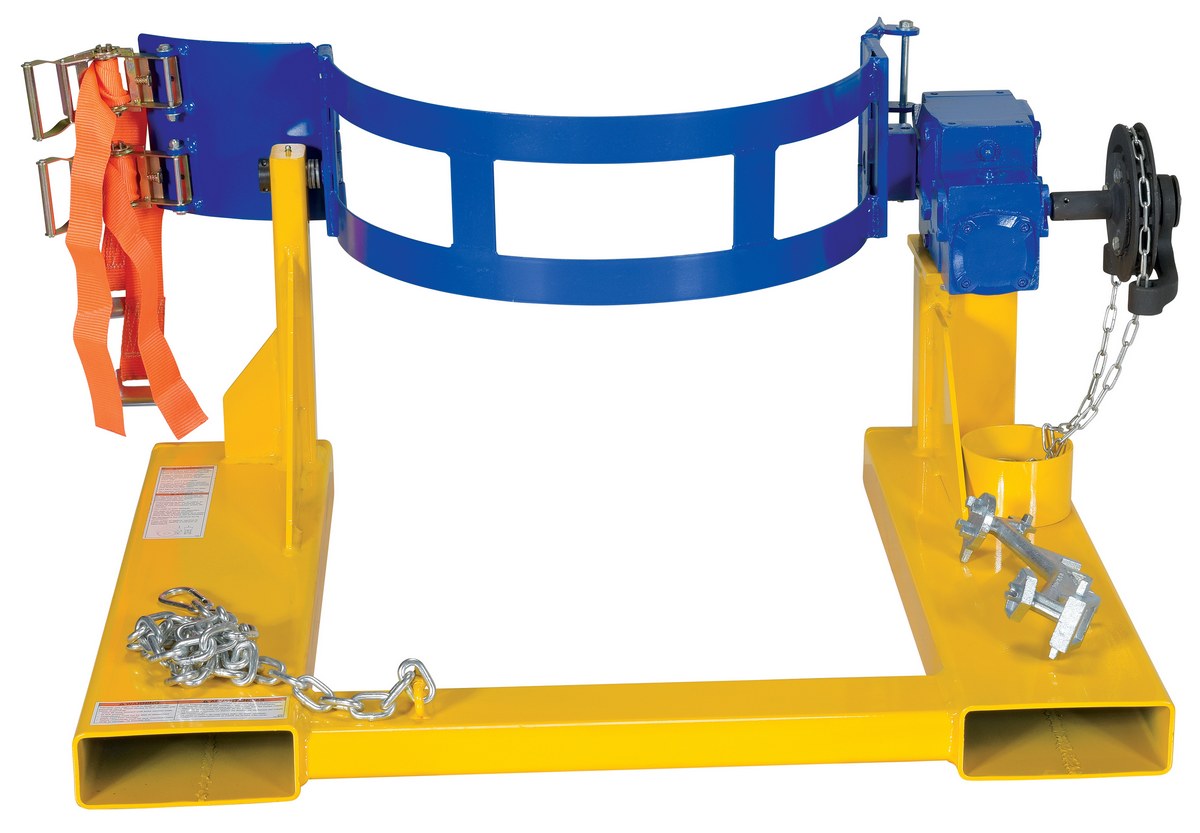

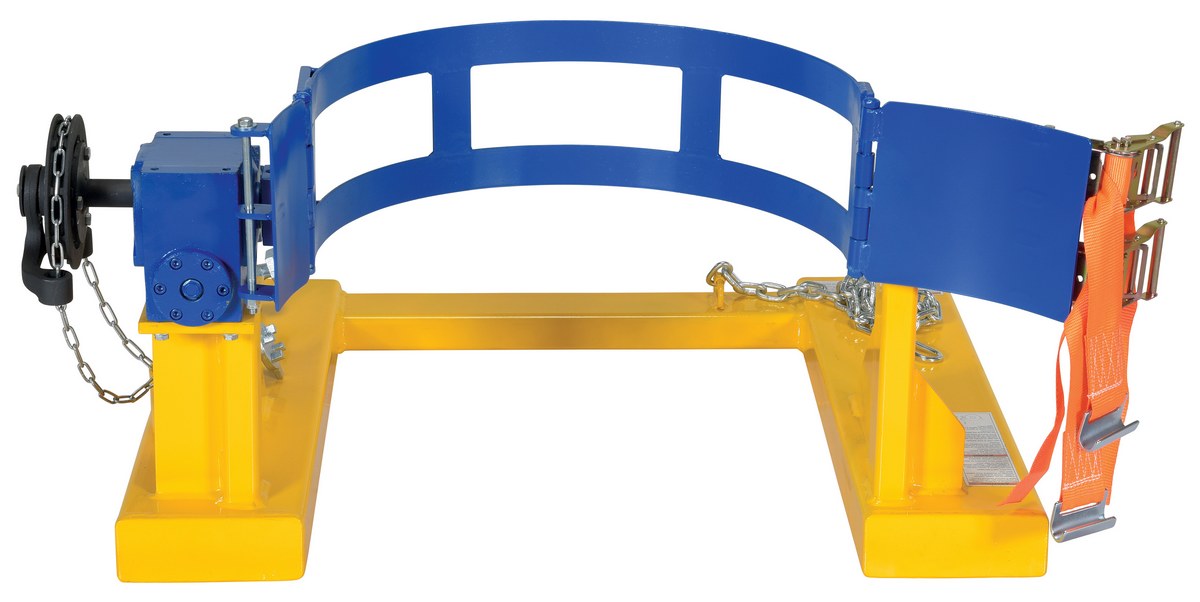

Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 2000 Lb. Capacity Yellow

This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. A dual ratchet strap is used to hold drum in secure manner while transferring. Safety restraint is used to secure unit to fork truck. Bung nut wrench is also included for opening and closing drums. Drum must be full to rotate at rated capacity. Complies with OSHA Gen. Industry rule 1910.178; ANSI B56.1.

  • Drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck
  • Drums are held by a durable chain locking system in order to be secure in place
  • Carrier/rotator is provided with a chain to allow the drum to be rotated from the operator's seat
  • Bung nut wrench is also included for opening and closing drums
Total Ship Wt.(lbs.): 229 (only 1 package) Size: 44.375"W x 30.375"L x 21.6875"H Color: Yellow

Uniform Capacity (lb.): 2,000 Accepts: 55-gallon steel drum Rotation Chain (ft.): 15
Drum Rotation (degree): 360 Fork Pocket Height (in.): 2-5/8 Fork Pocket Width (in.): 7-5/8
Fork Pocket Centers (in.): 32 Crank Turns per 90 degree Rotation (qty.): 15 Safety Chain (in.): 56
Drum Restraint Method: Dual Ratchet Strap Ratchet Strap Height/Length (in.): 2 x 36

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DCR-205-20
DCR-205-20

Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 2000 Lb. Capacity Yellow

This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. A dual ratchet strap is used to hold drum in secure manner while transferring. Safety restraint is used to secure unit to fork truck. Bung nut wrench is also included for opening and closing drums. Drum must be full to rotate at rated capacity. Complies with OSHA Gen. Industry rule 1910.178; ANSI B56.1.

  • Drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck
  • Drums are held by a durable chain locking system in order to be secure in place
  • Carrier/rotator is provided with a chain to allow the drum to be rotated from the operator's seat
  • Bung nut wrench is also included for opening and closing drums
Dimensions: 44.375"W x 30.375"L x 21.6875"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215054508 GTIN: 00691215054508
Warranty: -- Shipping Weight: 229 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Accepts: 55-gallon steel drum Rotation Chain (ft.): 15
Drum Rotation (degree): 360 Fork Pocket Height (in.): 2-5/8 Fork Pocket Width (in.): 7-5/8
Fork Pocket Centers (in.): 32 Crank Turns per 90 degree Rotation (qty.): 15 Safety Chain (in.): 56
Drum Restraint Method: Dual Ratchet Strap Ratchet Strap Height/Length (in.): 2 x 36
