Model Details

DCR-205-8

Printer Friendly
DCR-205-8

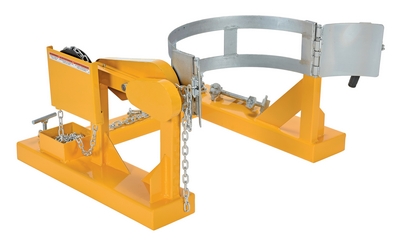

Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 800 Lb. Capacity Yellow

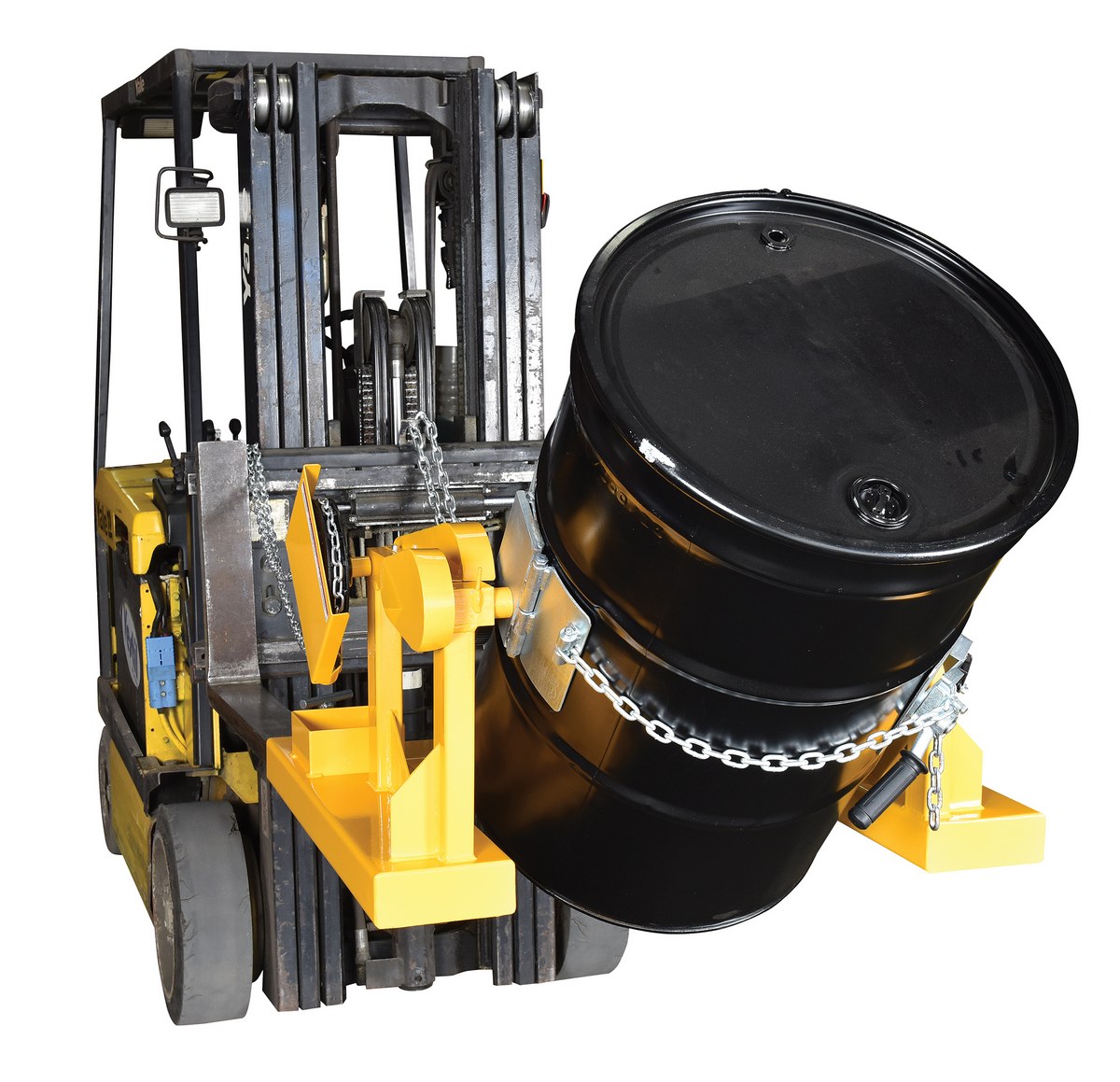

This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. Drum must be full to rotate at rated capacity. Complies with OSHA Gen. Industry rule 1910.178; ANSI B56.1.

  • Fork Truck drum carrier/rotator is for handling steel drums efficiently
  • Chain locking system holds drums securely for ideal operation
  • Additional chain allows the drum to be rotated from operator's seat
  • Includes a bung nut wrench for opening and closing drums effectively

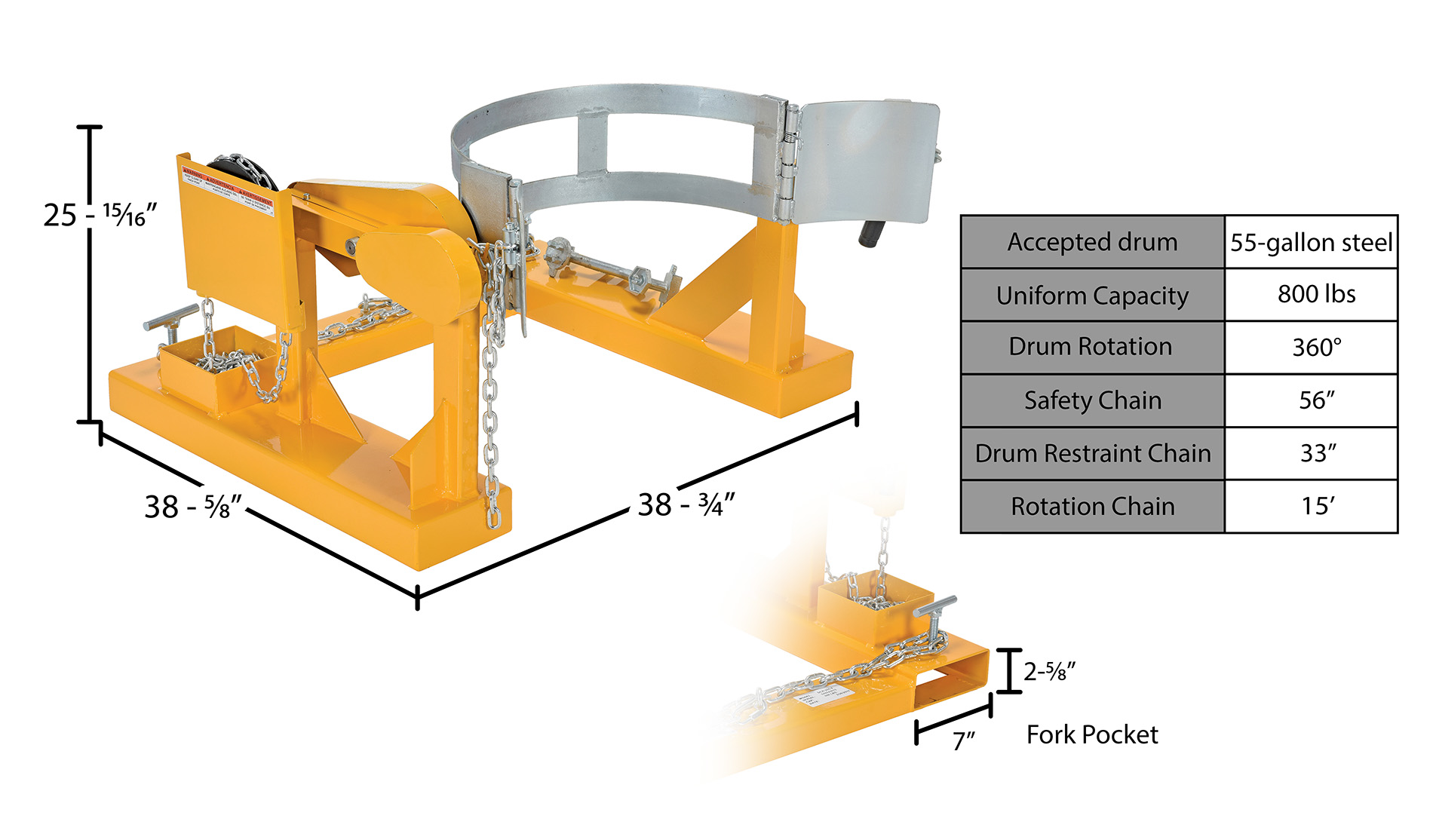

Total Ship Wt.(lbs.): 228 (only 1 package) Size: 38.75"W x 38.625"L x 25.9375"H Color: Yellow

Uniform Capacity (lb.): 800 Accepts: 55-gallon steel drum Rotation Chain (ft.): 15
Drum Rotation (degree): 360 Fork Pocket Height (in.): 2-5/8 Fork Pocket Width (in.): 7
Fork Pocket Centers (in.): 31-3/8 Crank Turns per 90 degree Rotation (qty.): 10 Safety Chain (in.): 56
Drum Restraint Method: Chain Drum Restraint Chain Length (in.): 33 Drum Cradle Finish: Zinc Plated

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DCR-205-8
DCR-205-8

Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 800 Lb. Capacity Yellow

This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. Drum must be full to rotate at rated capacity. Complies with OSHA Gen. Industry rule 1910.178; ANSI B56.1.

  • Fork Truck drum carrier/rotator is for handling steel drums efficiently
  • Chain locking system holds drums securely for ideal operation
  • Additional chain allows the drum to be rotated from operator's seat
  • Includes a bung nut wrench for opening and closing drums effectively
Dimensions: 38.75"W x 38.625"L x 25.9375"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215012799 GTIN: 00691215012799
Warranty: -- Shipping Weight: 228 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Accepts: 55-gallon steel drum Rotation Chain (ft.): 15
Drum Rotation (degree): 360 Fork Pocket Height (in.): 2-5/8 Fork Pocket Width (in.): 7
Fork Pocket Centers (in.): 31-3/8 Crank Turns per 90 degree Rotation (qty.): 10 Safety Chain (in.): 56
Drum Restraint Method: Chain Drum Restraint Chain Length (in.): 33 Drum Cradle Finish: Zinc Plated
