Model Details

DGS-55-D

Printer Friendly
DGS-55-D

Steel Deluxe Single Drum Gripper 55 Gallon 43-3/16 In x 28 In x 7-1/8 In 1500 Lb. Capacity Yellow

The drum gripper makes it easy to pick up one open head (with lid installed and secured) and closed head steel drum without leaving the seat of the fork truck. Simply slip the forks into the fork pocket, fasten the safety restraint and the drum gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. Features hinged folding design for storage and adjustable-width arms for use with steel drums. Safety restraint included. Welded steel construction. Powder coat finish.

  • Unique drum release design automatically releases drum by lowering forks
  • Heavy-duty welded steel construction provides long lasting rugged use
  • Knuckle grip design securely grabs steel drums
  • Fold-up arms provide convenient storage

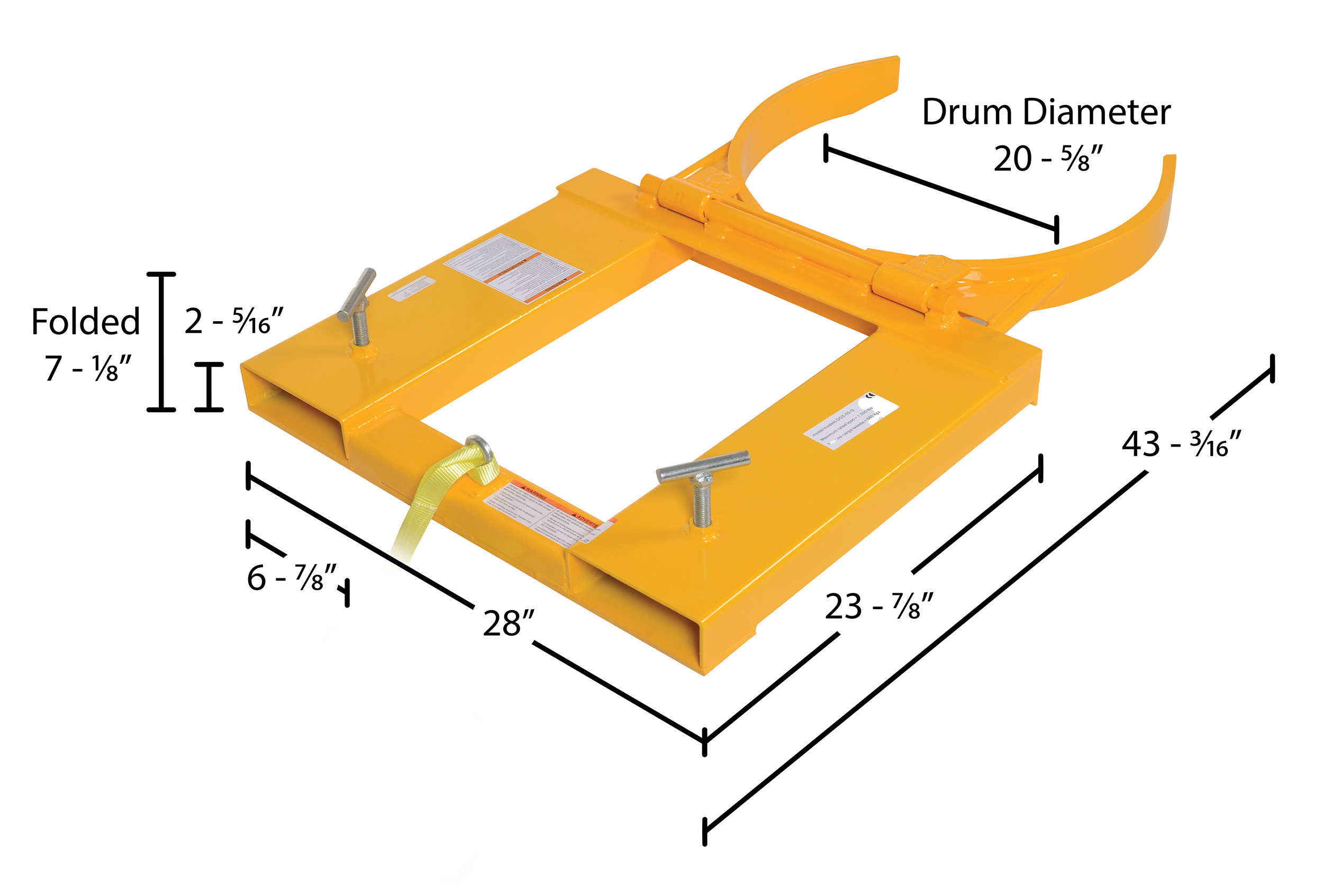

Total Ship Wt.(lbs.): 110 (only 1 package) Size: 28"W x 43.1875"L x 7.125"H Color: Yellow

Uniform Capacity (lb.): 1,500 Accepts: (1) 55-gallon steel drums Fork Pocket on Center (in.): 20-1/4
Fork Pocket Width (in.): 7-1/8 Fork Pocket Height (in.): 2-1/16 Fork Pocket Length (in.): 23-5/8
Type: Fold-up

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DGS-55-D
DGS-55-D

Steel Deluxe Single Drum Gripper 55 Gallon 43-3/16 In x 28 In x 7-1/8 In 1500 Lb. Capacity Yellow

The drum gripper makes it easy to pick up one open head (with lid installed and secured) and closed head steel drum without leaving the seat of the fork truck. Simply slip the forks into the fork pocket, fasten the safety restraint and the drum gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. Features hinged folding design for storage and adjustable-width arms for use with steel drums. Safety restraint included. Welded steel construction. Powder coat finish.

  • Unique drum release design automatically releases drum by lowering forks
  • Heavy-duty welded steel construction provides long lasting rugged use
  • Knuckle grip design securely grabs steel drums
  • Fold-up arms provide convenient storage
Dimensions: 28"W x 43.1875"L x 7.125"H Sell UOM: EA-Each Color: Yellow
Material: Welded Steel UPC: 691215013253 GTIN: 00691215013253
Warranty: -- Shipping Weight: 110 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Accepts: (1) 55-gallon steel drums Fork Pocket on Center (in.): 20-1/4
Fork Pocket Width (in.): 7-1/8 Fork Pocket Height (in.): 2-1/16 Fork Pocket Length (in.): 23-5/8
Type: Fold-up
