Model Details

DIE-2430-48

Printer Friendly
DIE-2430-48

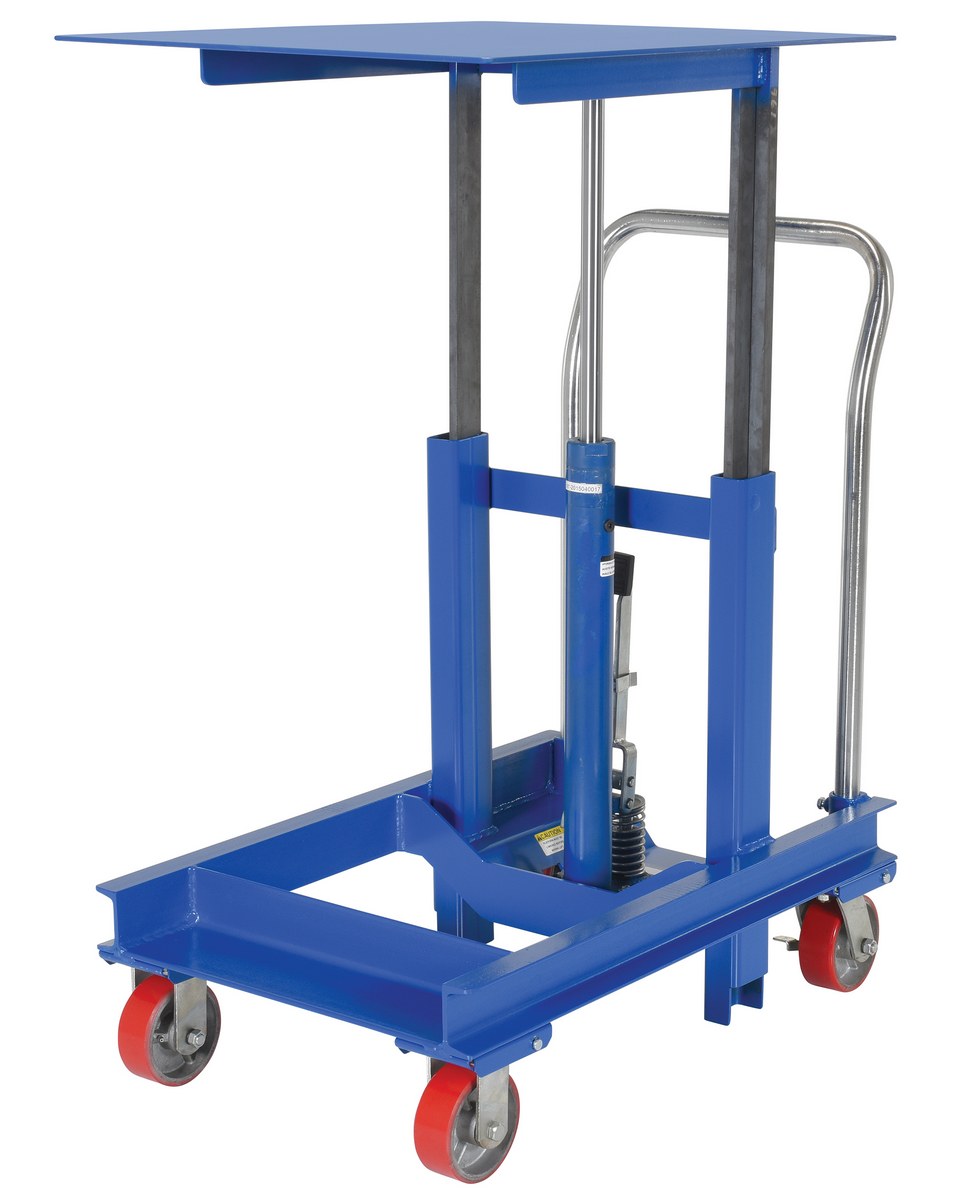

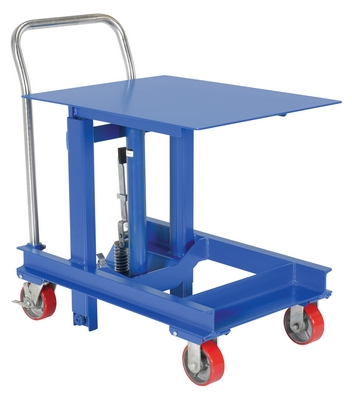

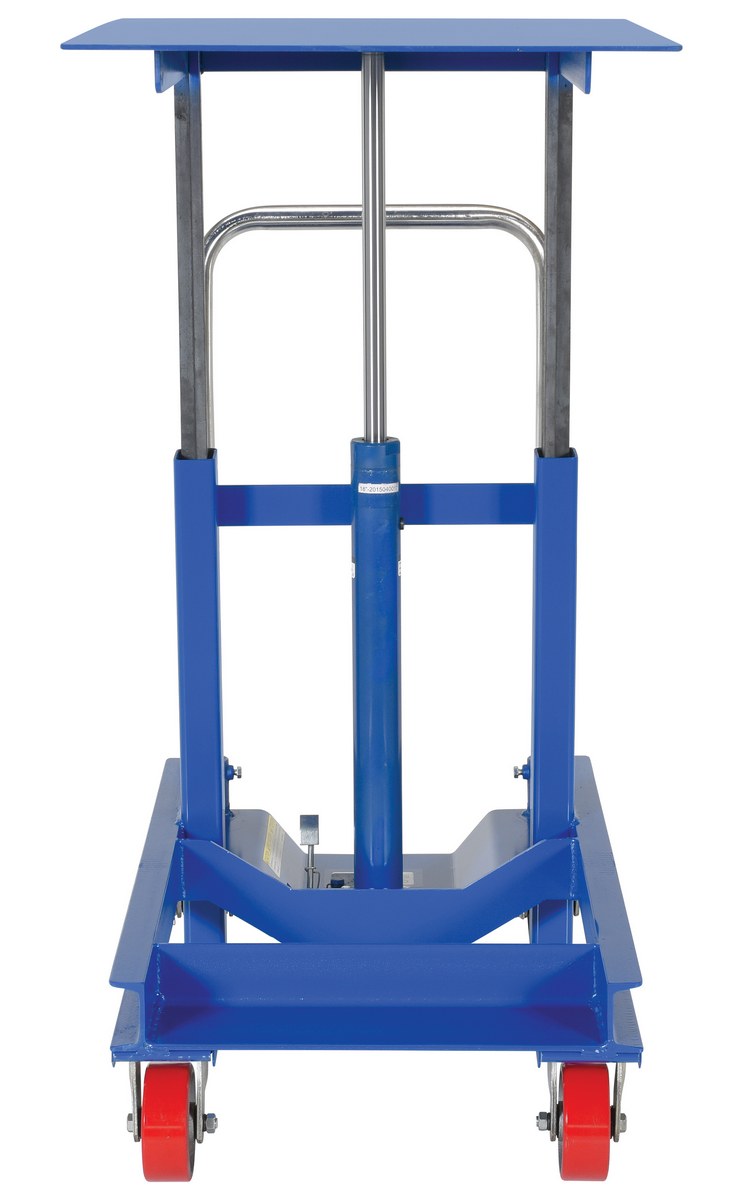

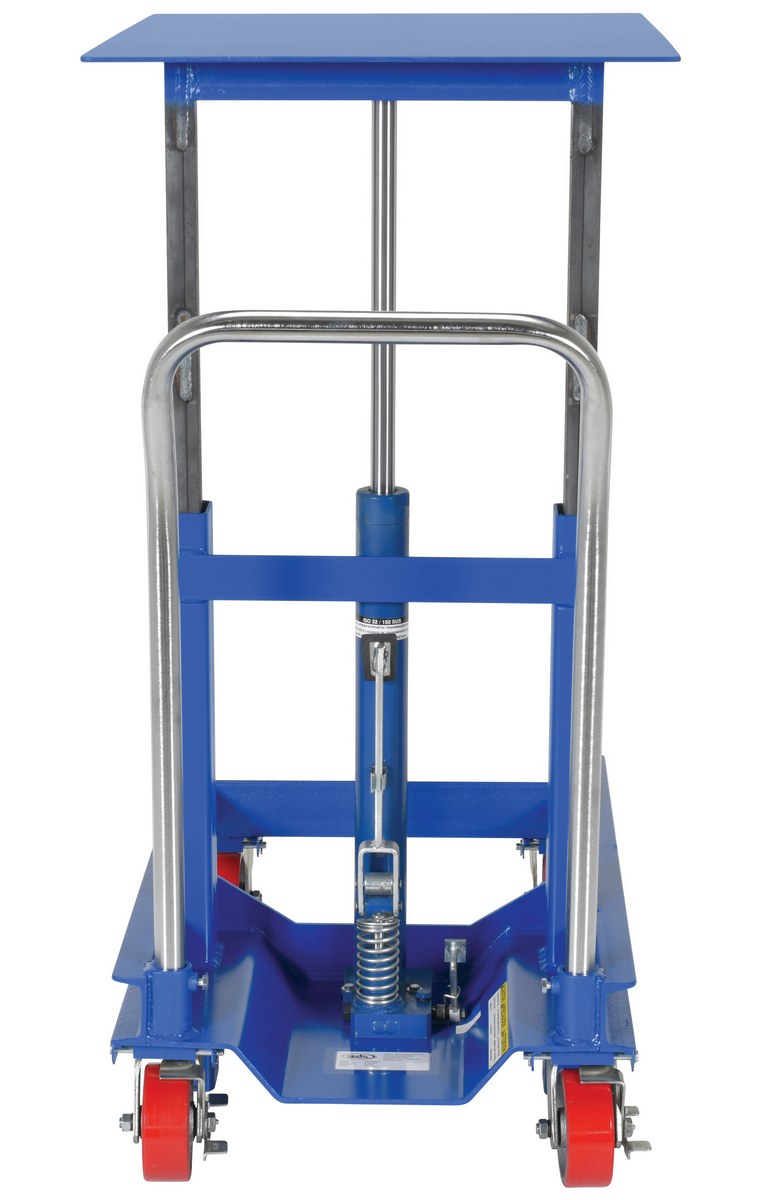

Steel Ergonomic Manual Die Table 24 In. x 30 In. Platform 2000 Lb. Capacity Blue

The die table is designed to lift heavy equipment to ergonomic working heights. Table is manually pushed from area to area. The all welded construction will provide years of service and hard work. The small frame size allows unit to access hard to reach locations.

  • hydraulic foot pump and lift cylinder
  • Features a lift cylinder for smooth and easy lifting
  • Steel structure and table top
  • Unit rolls smoothly on two rigid and two swivel with side brake casters standard.
Total Ship Wt.(lbs.): 295 (only 1 package) Size: 24"W x 36.5"L x 37.6875"H Color: Blue

Uniform Capacity (lb.): 2,000 Platform Width (in.): 24 Platform Length (in.): 30
Lowered Height (in.): 30 Raised Height (in.): 48 Handle Height (in.): 37-11/16
Caster Quantity/Diameter/Width (in.): (4) 5x 2 Caster Material: Poly-On-Steel Caster Type: (2) Rigid (2) Swivel with side brake

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DIE-2430-48
DIE-2430-48

Steel Ergonomic Manual Die Table 24 In. x 30 In. Platform 2000 Lb. Capacity Blue

The die table is designed to lift heavy equipment to ergonomic working heights. Table is manually pushed from area to area. The all welded construction will provide years of service and hard work. The small frame size allows unit to access hard to reach locations.

  • hydraulic foot pump and lift cylinder
  • Features a lift cylinder for smooth and easy lifting
  • Steel structure and table top
  • Unit rolls smoothly on two rigid and two swivel with side brake casters standard.
Dimensions: 24"W x 36.5"L x 37.6875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215067195 GTIN: 00691215067195
Warranty: -- Shipping Weight: 295 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Platform Width (in.): 24 Platform Length (in.): 30
Lowered Height (in.): 30 Raised Height (in.): 48 Handle Height (in.): 37-11/16
Caster Quantity/Diameter/Width (in.): (4) 5x 2 Caster Material: Poly-On-Steel Caster Type: (2) Rigid (2) Swivel with side brake
