Model Details

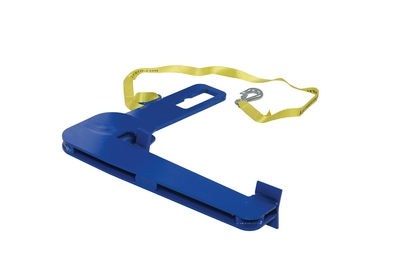

DL-31

DL-31

Steel Drum Lifter Fork/Chain 20-13/16 In x 4-1/16 In x 22-1/4 In 1500 Lb. Capacity Blue

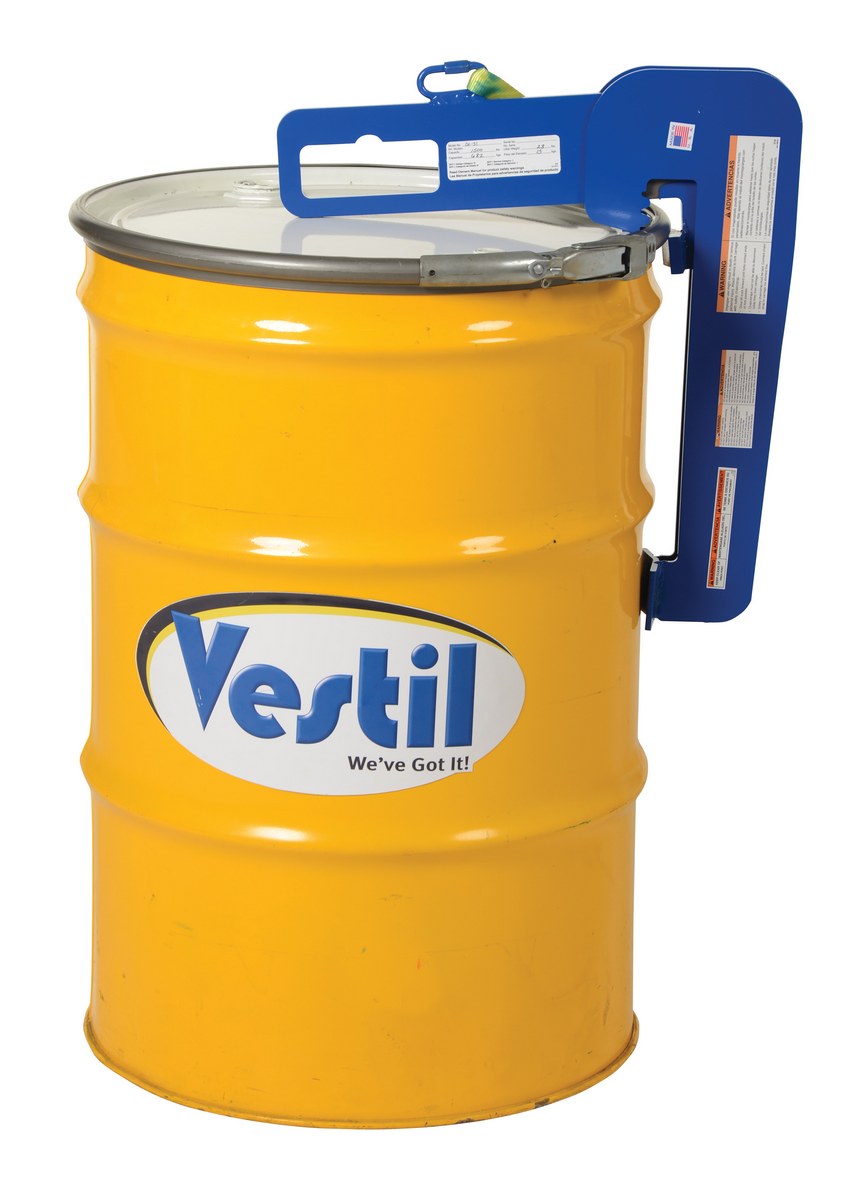

This Drum Lifter may be used to lift steel drums with either an overhead chain or fork truck. Lifter is designed to lift drum from top lip, includes a locking mechanism to prevent the unit from falling off the drum. Designed exclusively for lifting closed & open-head drums with a secured lid installed.

  • Lifter is designed to lift drum from top lip
  • Use with either an overhead chain or fork truck for optimal use
  • Lift 30 and 55 gallon steel drums with ease in industrial applications
  • Includes a locking mechanism to prevent the unit from falling off
Total Ship Wt.(lbs.): 30 (only 1 package) Size: 4.0625"W x 20.8125"L x 22.25"H Color: Blue

Uniform Capacity (lb.): 1,500 Accepts: 30 & 55-gallon steel drums Fork/Hook Opening Width (in.): 5-1/2
Hook Opening Height (in.): 2-1/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: DL-31


DL-31

Steel Drum Lifter Fork/Chain 20-13/16 In x 4-1/16 In x 22-1/4 In 1500 Lb. Capacity Blue

This Drum Lifter may be used to lift steel drums with either an overhead chain or fork truck. Lifter is designed to lift drum from top lip, includes a locking mechanism to prevent the unit from falling off the drum. Designed exclusively for lifting closed & open-head drums with a secured lid installed.

  • Lifter is designed to lift drum from top lip
  • Use with either an overhead chain or fork truck for optimal use
  • Lift 30 and 55 gallon steel drums with ease in industrial applications
  • Includes a locking mechanism to prevent the unit from falling off
Dimensions: 4.0625"W x 20.8125"L x 22.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215013642 GTIN: 00691215013642
Warranty: -- Shipping Weight: 30 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Accepts: 30 & 55-gallon steel drums Fork/Hook Opening Width (in.): 5-1/2
Hook Opening Height (in.): 2-1/16
