Model Details

DRUM-GRAB

Printer Friendly
DRUM-GRAB

Ductile Iron Secure Overhead Drum Lifter 21 In. x 22-1/2 In. x 12 In. 2200 Lb. Capacity Blue / Yellow

The three-arm secure grip overhead Drum Lifter is designed exclusively for lifting closed-head and open-head 55 gallon steel drums with a secured lid installed (not for use on open-head steel drums without a lid). Unit is designed for quick and easy one person operation. This product works on select 55 gallon plastic & fiber drums with a top lip strong enough to hold the weight of the drum. Designed for quick and easy one person operation with drum in a vertical position. The narrow profile design is great for picking up drums packed close together. The three-arm ductile-iron design offers maximum strength and simplicity allowing the centering of the drum under the lifter. The polyurethane "spring" loop keeps the lifter securely engaged to the drum which is especially beneficial when using the lifter in a rough environment. Unit must be manually disengaged from drum when finished with use. Patented design with a large lifting ring for use with most overhead lifting mechanisms. This drum grabber was designed in Australia winning several awards. Complies with OSHA Gen. Industry rule 1910.179; ASME B30.20.

  • Designed to securely lift closed & open-head 55 gallon steel drums with lid
  • One person design makes for quick and easy operation
  • Three-arm ductile-iron design offers maximum strength and simplicity
  • Narrow profile easily picks up drums packed close together
Total Ship Wt.(lbs.): 20 (only 1 package) Size: 22.5"W x 21"L x 12"H Color: Blue / Yellow

Lifting Capacity Closed Head Drum (lb.): 2200 Lifting Capacity Open Head Drum (lb.): 1100 Arm Numbers: 3

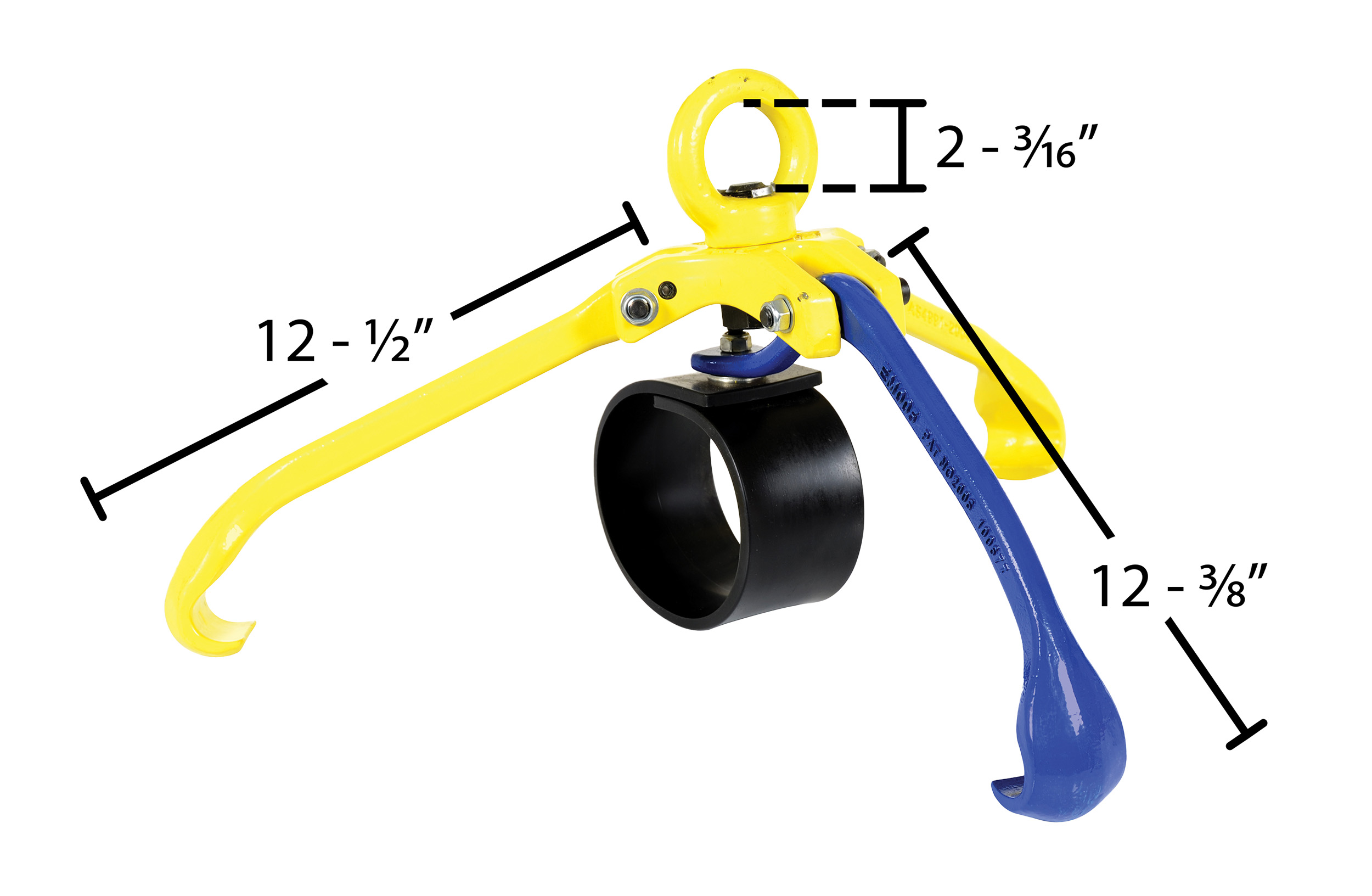

Works With: Closed & Open Head 55 Gallon Drums Stationary Grab Arm Length (in.): 12-1/2 Movable Arm Length (in.): 12-3/8
Eye Inner Diameter (in.): 2-1/4 Drum Diameter (in.): 24

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: DRUM-GRAB
DRUM-GRAB

Ductile Iron Secure Overhead Drum Lifter 21 In. x 22-1/2 In. x 12 In. 2200 Lb. Capacity Blue / Yellow

The three-arm secure grip overhead Drum Lifter is designed exclusively for lifting closed-head and open-head 55 gallon steel drums with a secured lid installed (not for use on open-head steel drums without a lid). Unit is designed for quick and easy one person operation. This product works on select 55 gallon plastic & fiber drums with a top lip strong enough to hold the weight of the drum. Designed for quick and easy one person operation with drum in a vertical position. The narrow profile design is great for picking up drums packed close together. The three-arm ductile-iron design offers maximum strength and simplicity allowing the centering of the drum under the lifter. The polyurethane "spring" loop keeps the lifter securely engaged to the drum which is especially beneficial when using the lifter in a rough environment. Unit must be manually disengaged from drum when finished with use. Patented design with a large lifting ring for use with most overhead lifting mechanisms. This drum grabber was designed in Australia winning several awards. Complies with OSHA Gen. Industry rule 1910.179; ASME B30.20.

  • Designed to securely lift closed & open-head 55 gallon steel drums with lid
  • One person design makes for quick and easy operation
  • Three-arm ductile-iron design offers maximum strength and simplicity
  • Narrow profile easily picks up drums packed close together
Dimensions: 22.5"W x 21"L x 12"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Ductile Iron UPC: 691215099660 GTIN: 00691215099660
Warranty: -- Shipping Weight: 20 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Lifting Capacity Closed Head Drum (lb.): 2200 Lifting Capacity Open Head Drum (lb.): 1100 Arm Numbers: 3
Works With: Closed & Open Head 55 Gallon Drums Stationary Grab Arm Length (in.): 12-1/2 Movable Arm Length (in.): 12-3/8
Eye Inner Diameter (in.): 2-1/4 Drum Diameter (in.): 24
