DSL-300

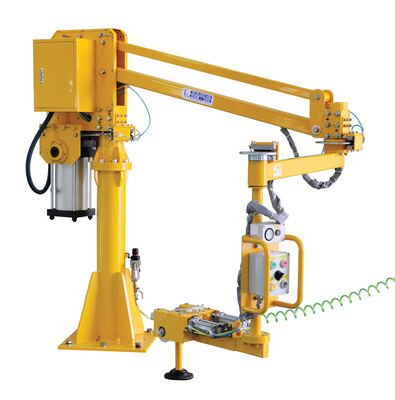

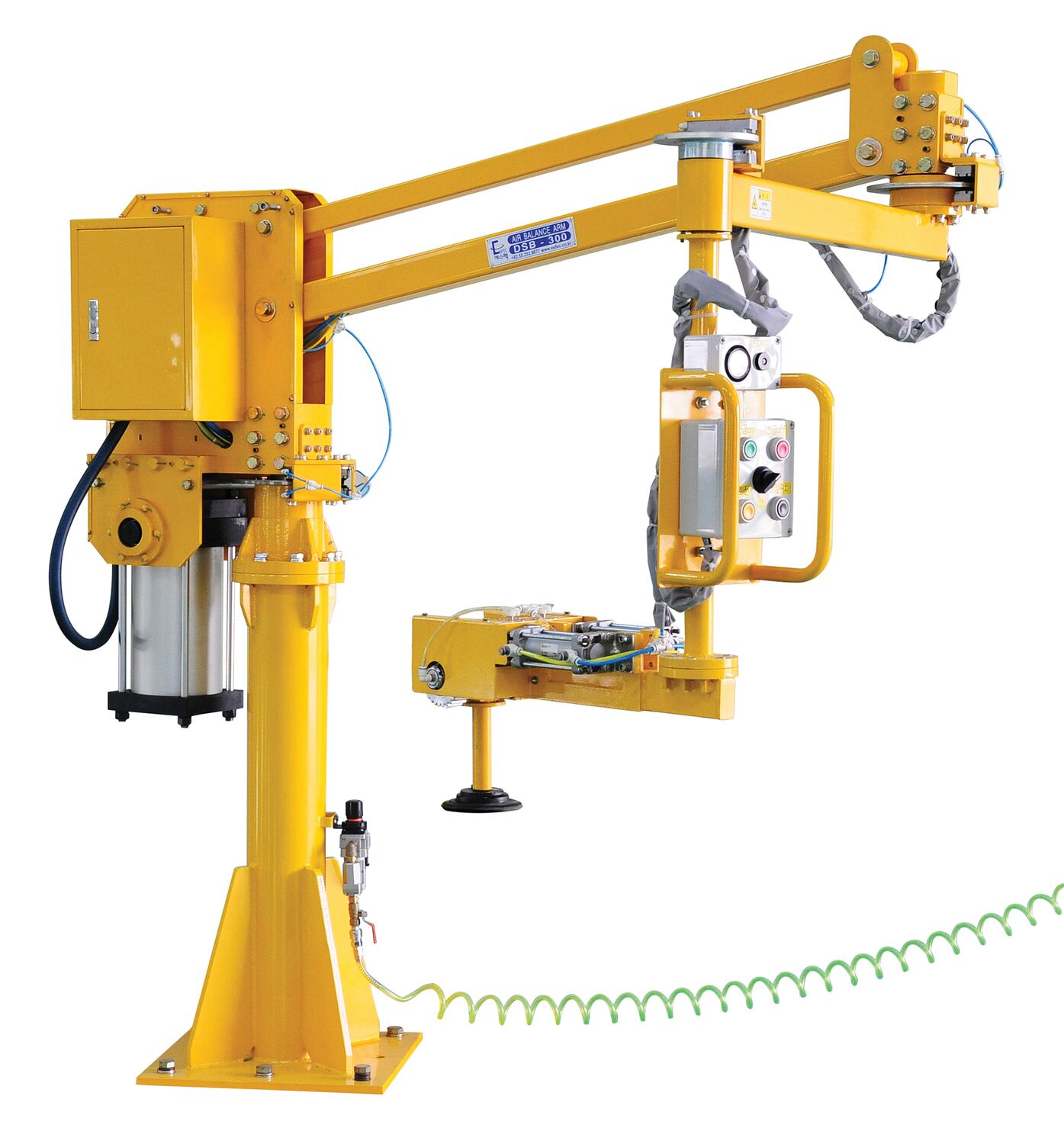

Steel Air Balance Jib Lifter Floor Mounted Maximum Arm Length 78-1/4 In. 250 Lb. Capacity Yellow

The air balancer Jib Lifter achieves high performance, excellent safety, and low cost in the handling of heavy materials. Designed to effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. This is a floor mount model.

  • Performance, safety, low cost, and ideal for heavy materials
  • Handle materials in a three dimensional work space
  • Push-button hand control operates the pneumatic cylinder
  • Position the load by raising and lowering the cable
Total Ship Wt.(lbs.): 697 (only 1 package) Size: "W x "L x "H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 47-1/4 Maximum Arm Length (in.): 78-1/4
Arm Rotation (degree): 360 Air Pressure (psi): 100

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DSL-300
DSL-300

Steel Air Balance Jib Lifter Floor Mounted Maximum Arm Length 78-1/4 In. 250 Lb. Capacity Yellow

The air balancer Jib Lifter achieves high performance, excellent safety, and low cost in the handling of heavy materials. Designed to effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. This is a floor mount model.

  • Performance, safety, low cost, and ideal for heavy materials
  • Handle materials in a three dimensional work space
  • Push-button hand control operates the pneumatic cylinder
  • Position the load by raising and lowering the cable
Dimensions: Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215076708 GTIN: 00691215076708
Warranty: -- Shipping Weight: 697 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: Korea
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 47-1/4 Maximum Arm Length (in.): 78-1/4
Arm Rotation (degree): 360 Air Pressure (psi): 100
