Model Details

E-MT-10-C

Printer Friendly
E-MT-10-C

Steel Geared Eye Manual Trolley 10000 Lb. Capacity Orange

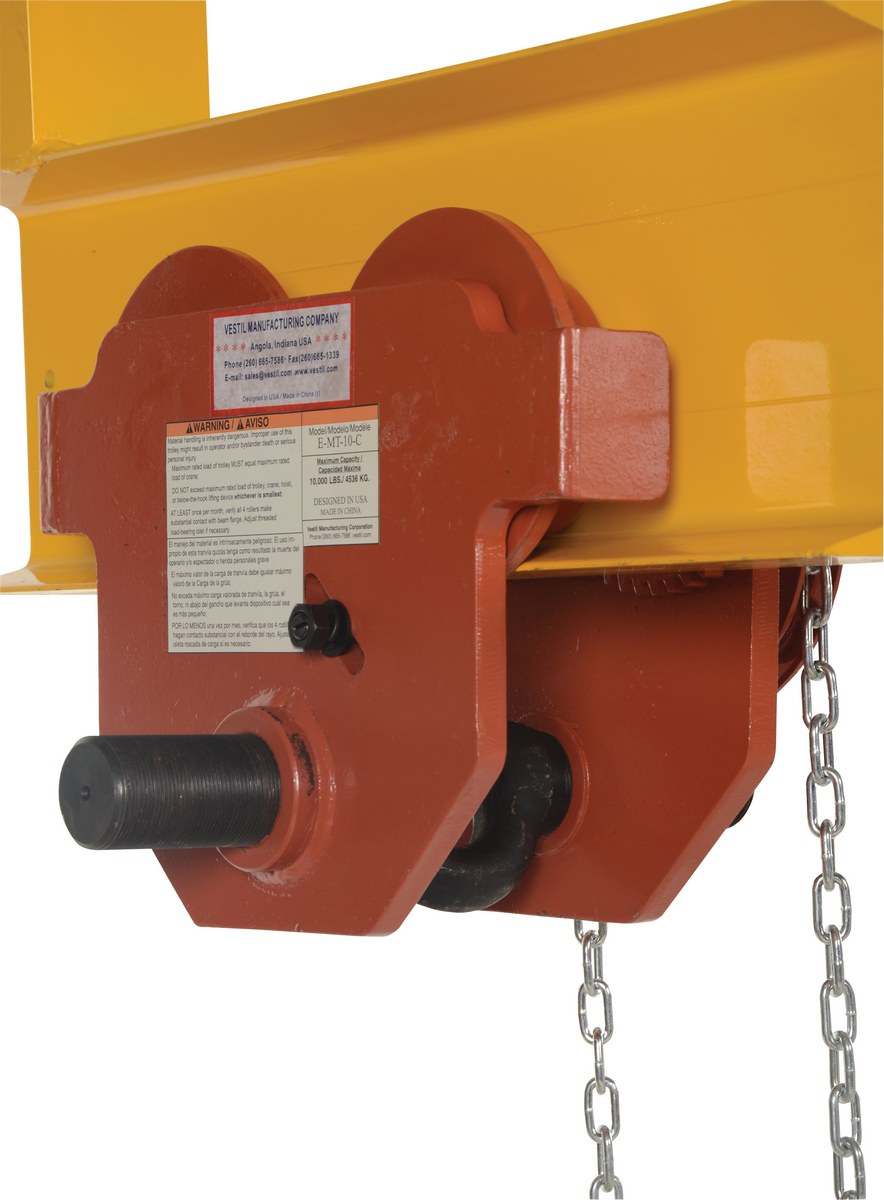

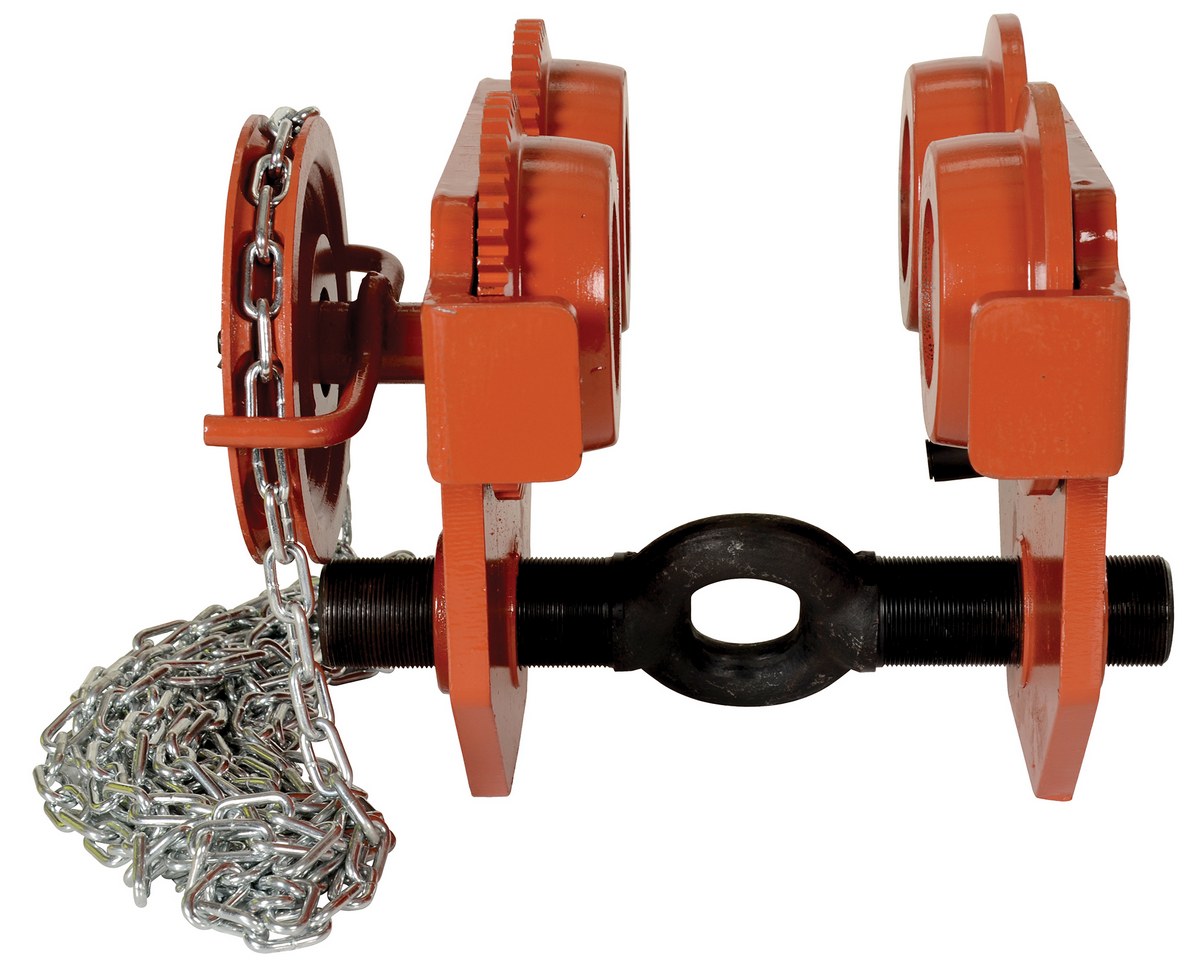

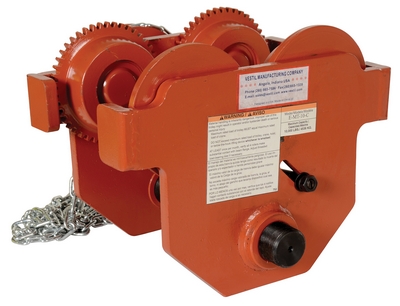

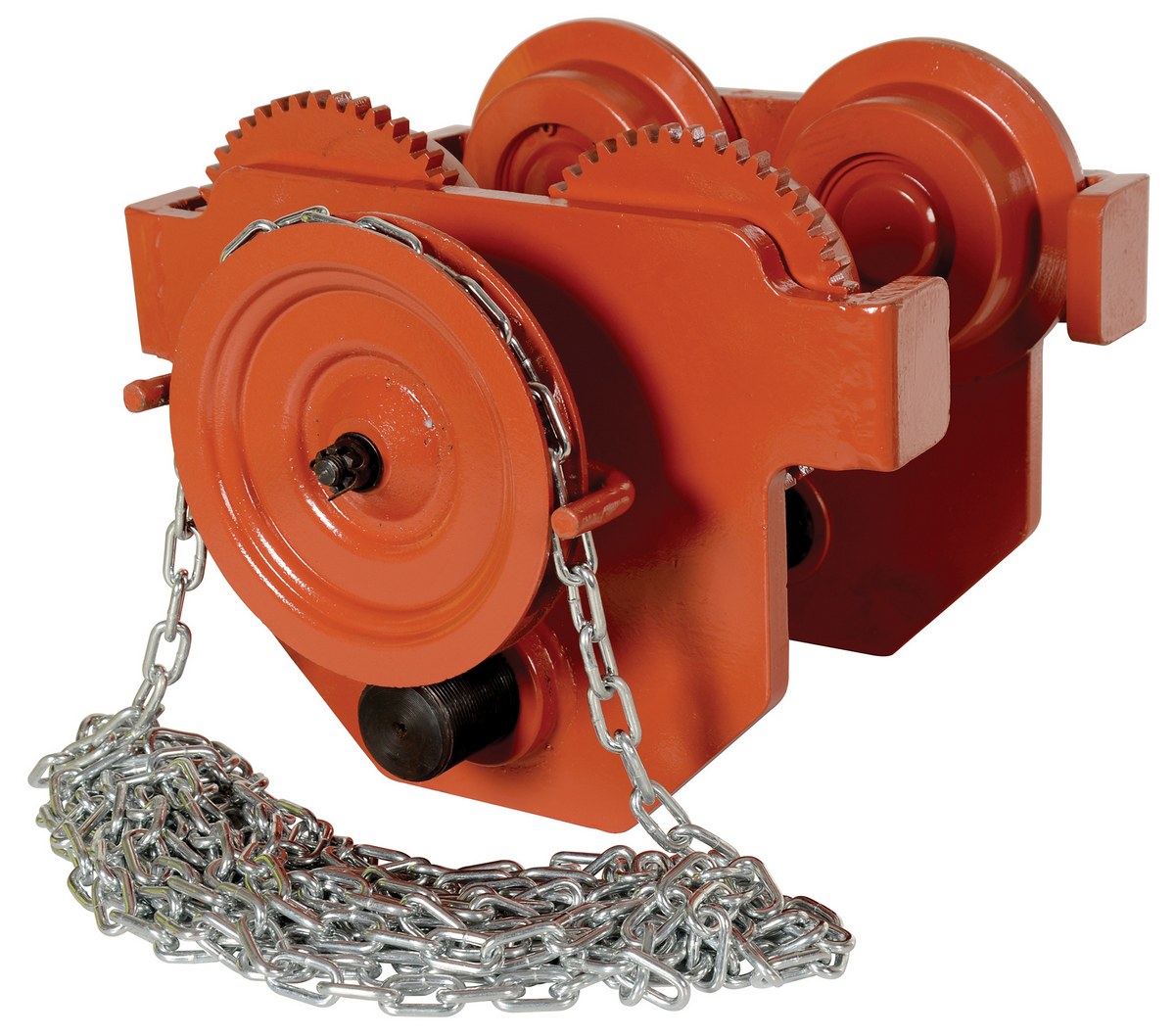

This low profile manual trolley has been designed to quickly install on virtually any S, H, W and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once the hoist (not included) is attached, the center rod cannot be rotated which prevents the trolley width from accidentally changing. This geared trolley is ideal for when precise positioning of the trolley is required. It includes four (4) rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). The trolley features steel construction and a painted finish.

  • Special design works with S, H, W and M type I-beams
  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life
Total Ship Wt.(lbs.): 103 (only 1 package) Size: 14.125"W x 14.625"L x 11.75"H Color: Orange

Uniform Capacity (lb.): 10,000 Fits Beam Flange Width (in.): 3 to 9 Headroom (in.): 8-5/8
Operation: Manual Chain Gear

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: E-MT-10-C
E-MT-10-C

Steel Geared Eye Manual Trolley 10000 Lb. Capacity Orange

This low profile manual trolley has been designed to quickly install on virtually any S, H, W and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once the hoist (not included) is attached, the center rod cannot be rotated which prevents the trolley width from accidentally changing. This geared trolley is ideal for when precise positioning of the trolley is required. It includes four (4) rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). The trolley features steel construction and a painted finish.

  • Special design works with S, H, W and M type I-beams
  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life
Dimensions: 14.125"W x 14.625"L x 11.75"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215066358 GTIN: 00691215066358
Warranty: -- Shipping Weight: 103 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 10,000 Fits Beam Flange Width (in.): 3 to 9 Headroom (in.): 8-5/8
Operation: Manual Chain Gear
