Model Details

E-MT-6

Printer Friendly
E-MT-6

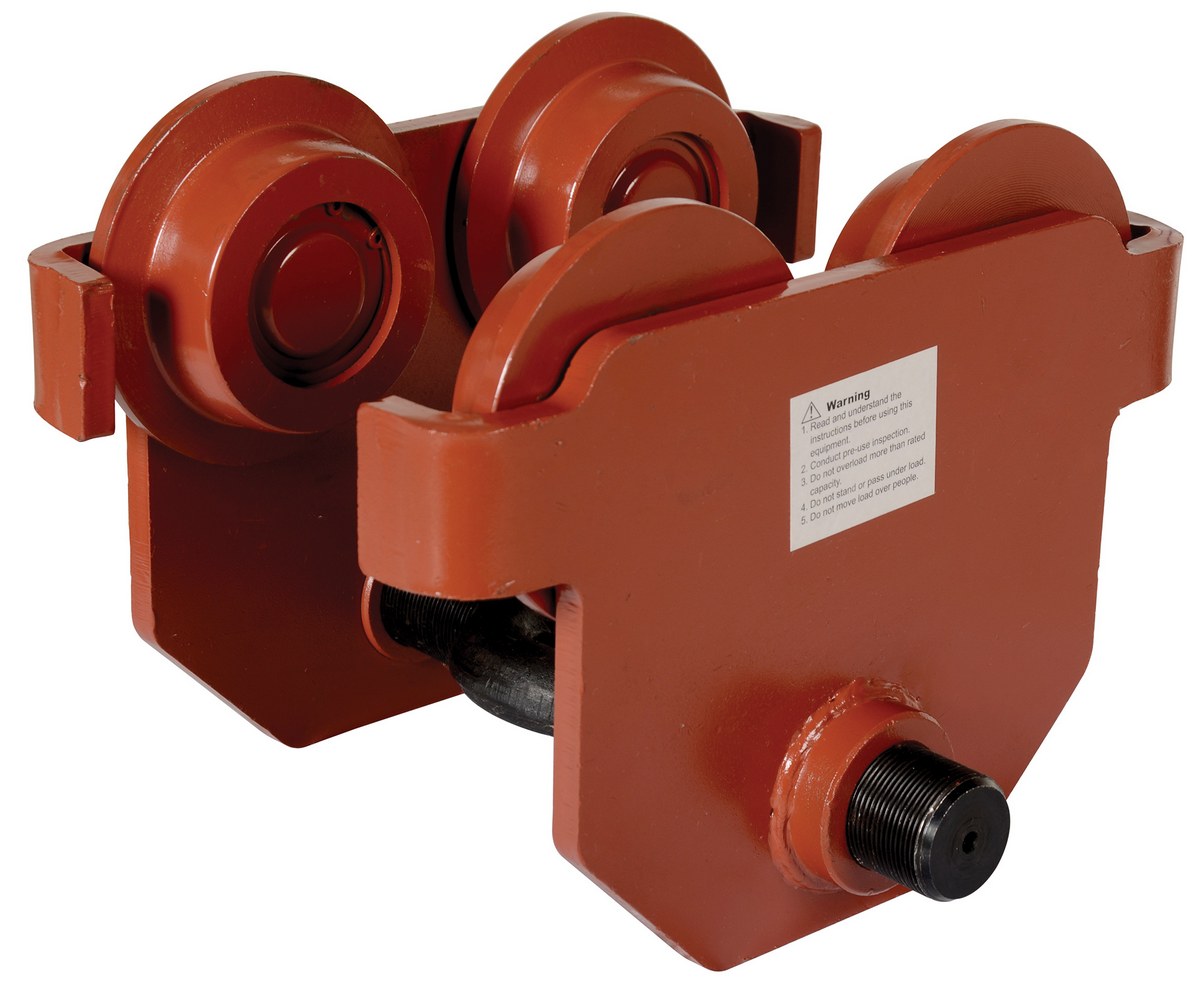

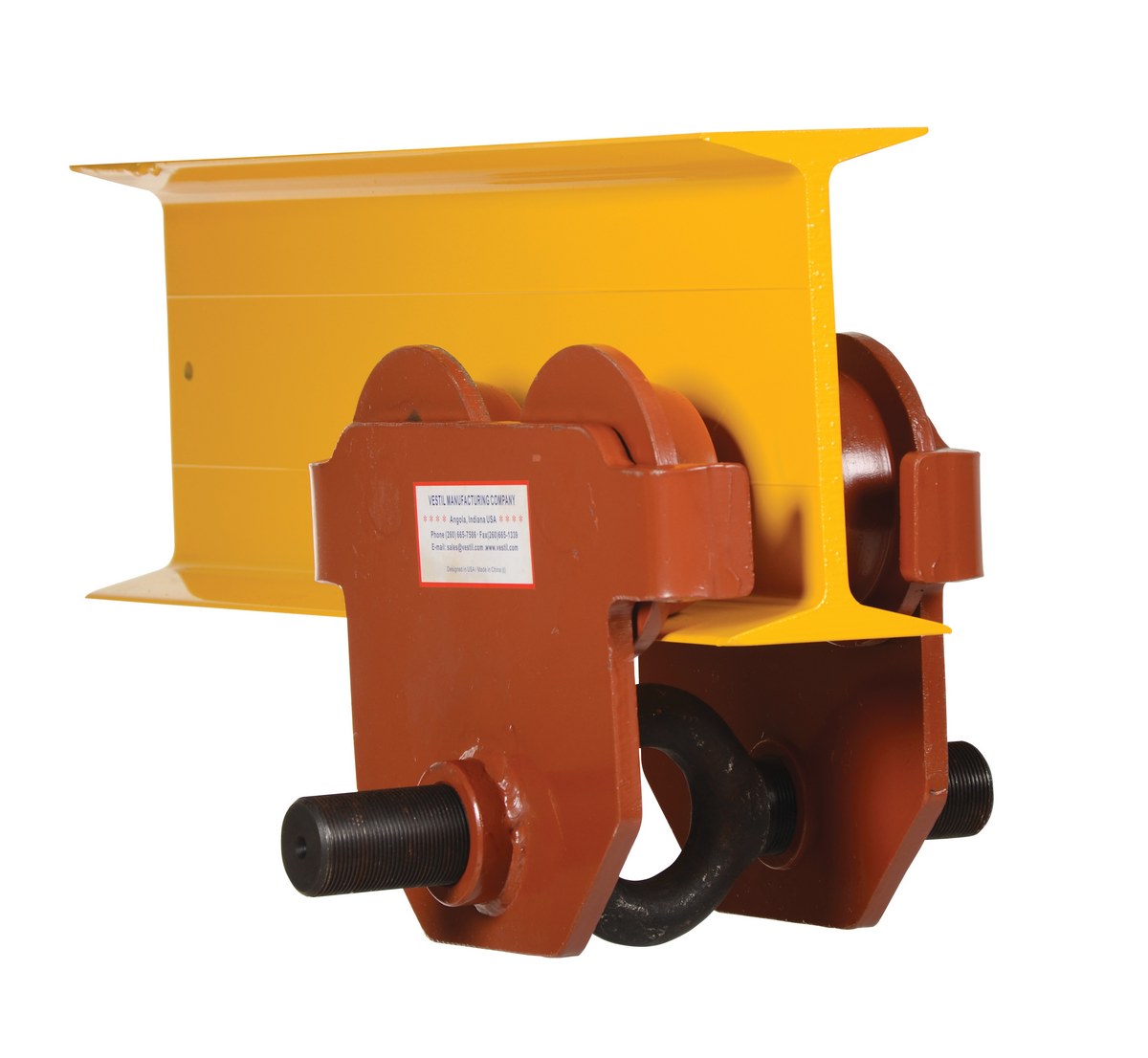

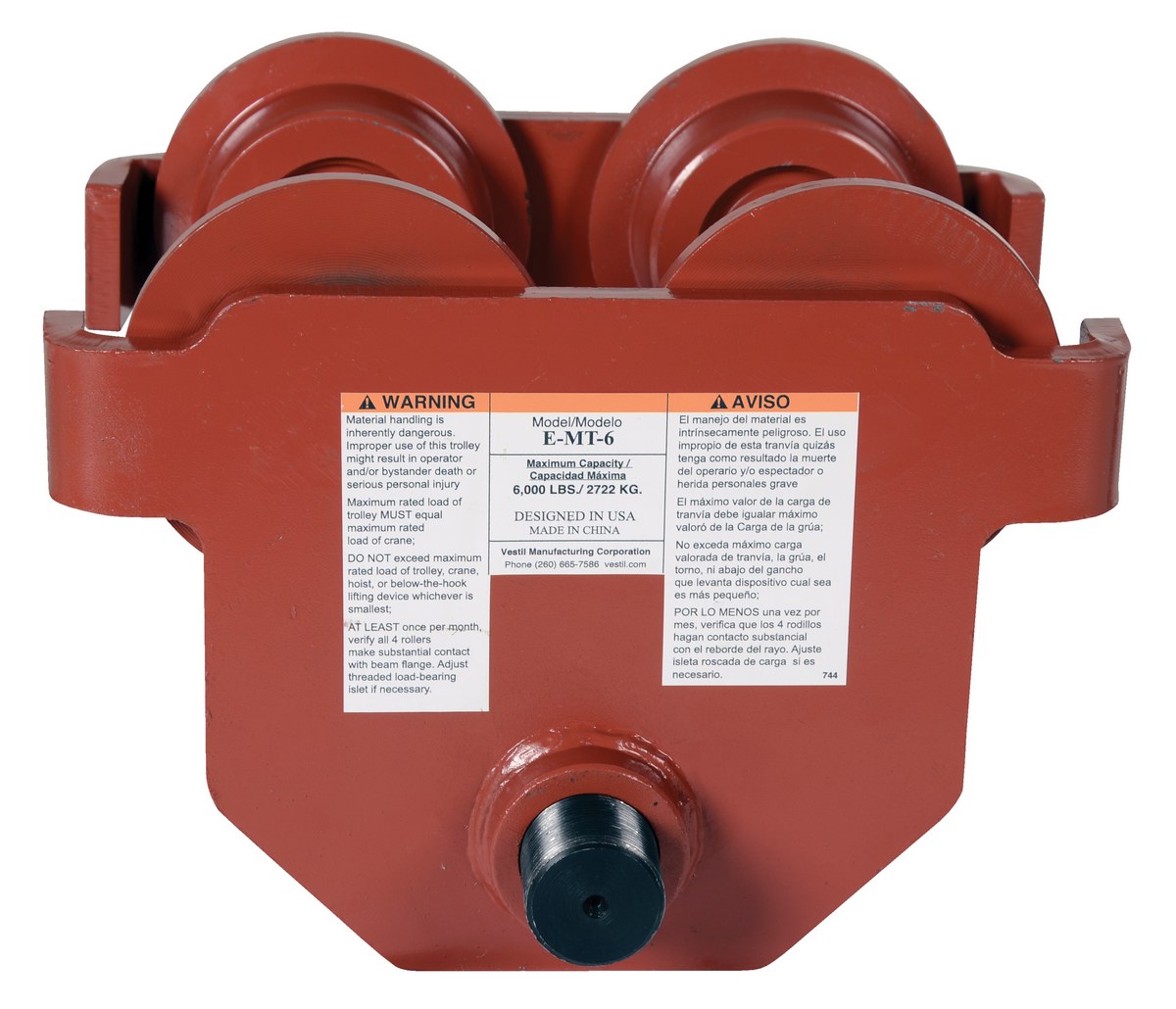

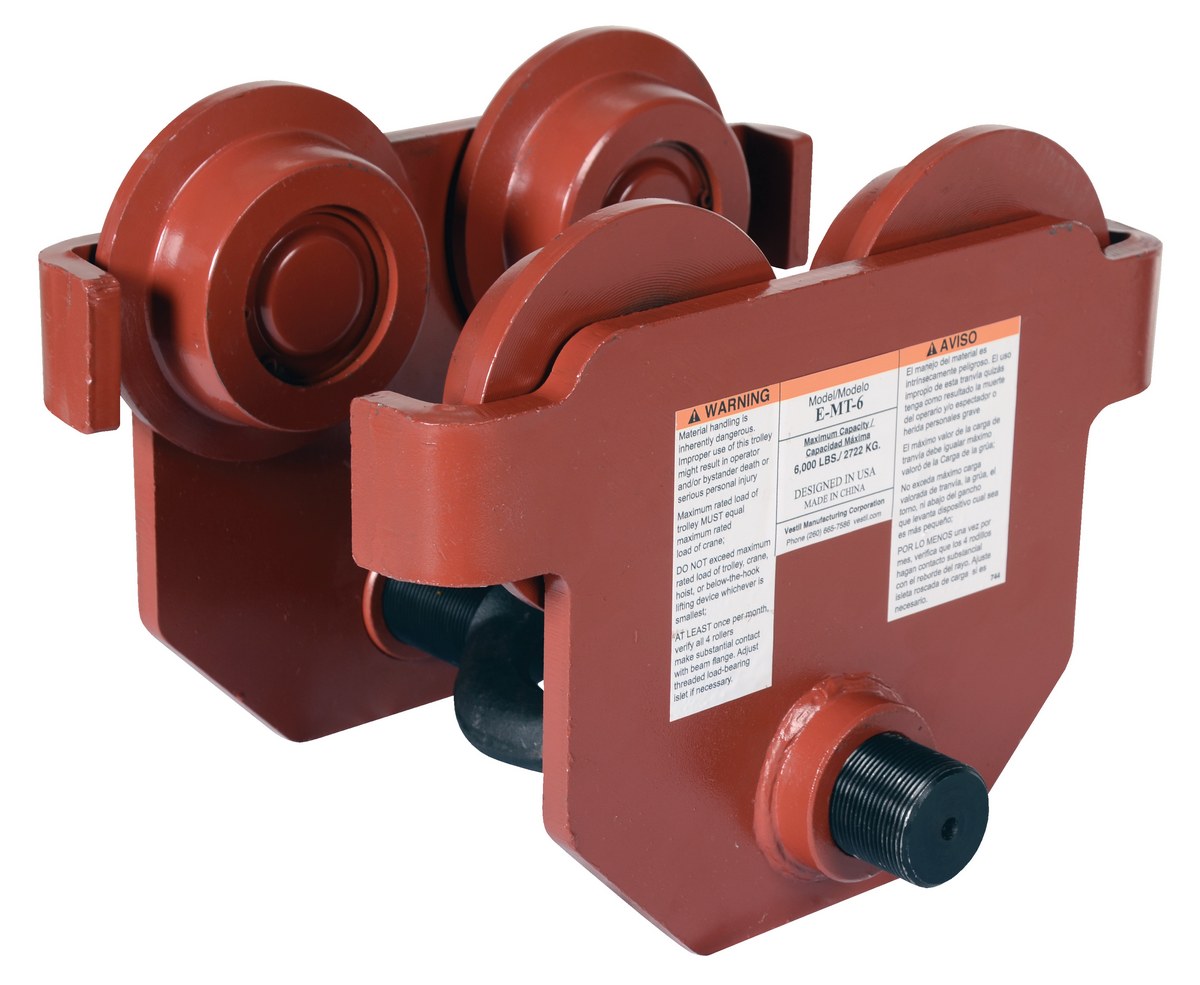

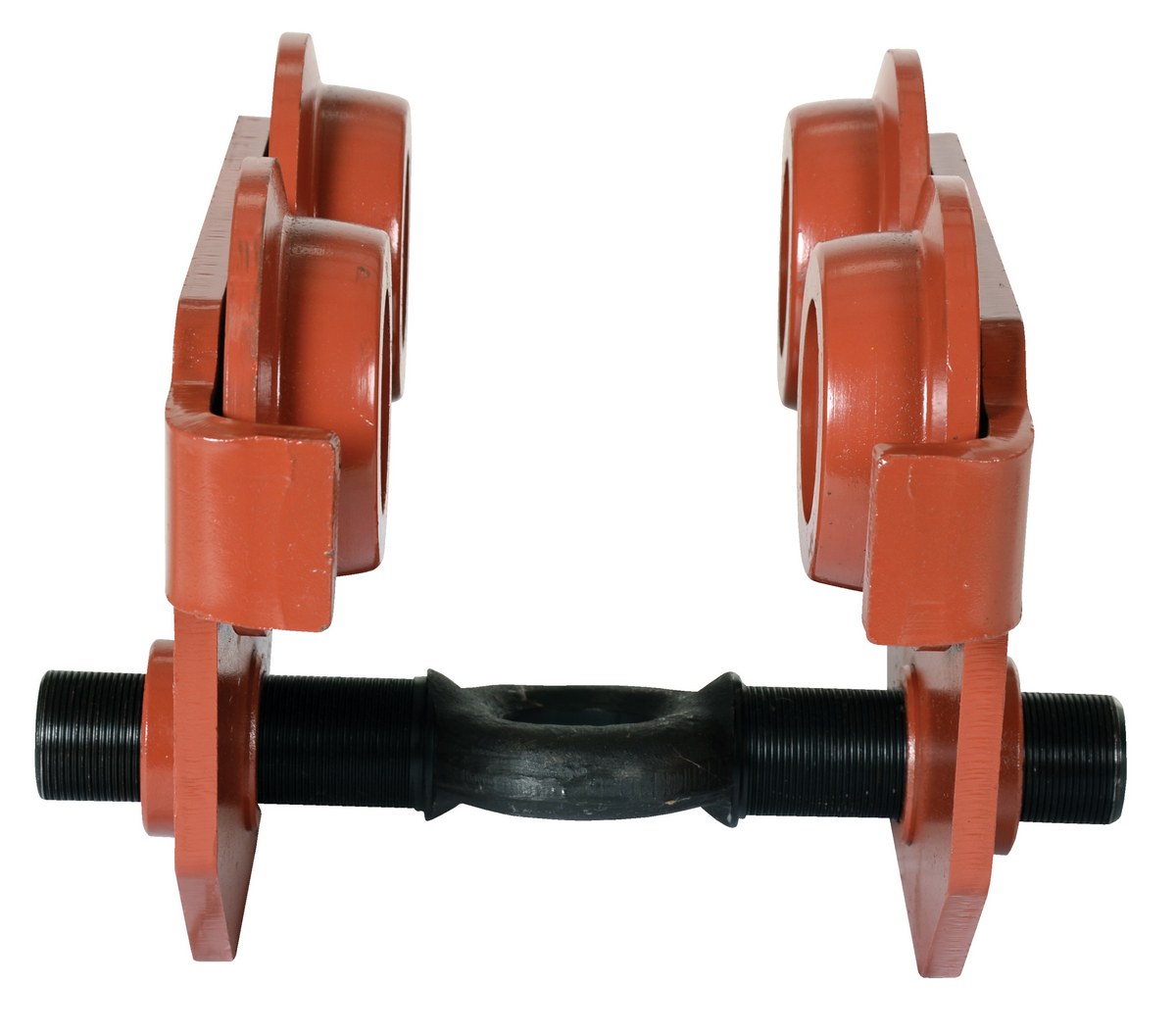

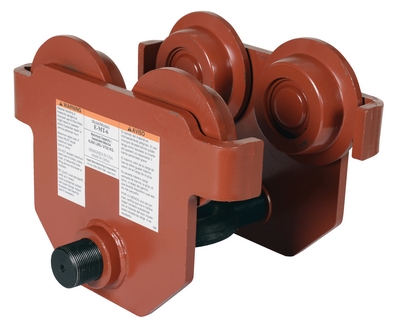

Steel Push Eye Manual Trolley 6000 Lb. Capacity Orange

This low profile manual trolley has been designed to quickly install on virtually any S, H, W and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once the hoist (not included) is attached, the center rod cannot be rotated which prevents the trolley width from accidentally changing. This push trolley includes four (4) rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). The trolley features steel construction and a painted finish.

  • Special design works with S, H, W and M type I-beams
  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life
Total Ship Wt.(lbs.): 52 (only 1 package) Size: 13"W x 12.75"L x 9.375"H Color: Orange

Uniform Capacity (lb.): 6,000 Fits Beam Flange Width (in.): 3 to 8-5/8 Headroom (in.): 3-3/8
Operation: Manual Push

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: E-MT-6
E-MT-6

Steel Push Eye Manual Trolley 6000 Lb. Capacity Orange

This low profile manual trolley has been designed to quickly install on virtually any S, H, W and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once the hoist (not included) is attached, the center rod cannot be rotated which prevents the trolley width from accidentally changing. This push trolley includes four (4) rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). The trolley features steel construction and a painted finish.

  • Special design works with S, H, W and M type I-beams
  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life
Dimensions: 13"W x 12.75"L x 9.375"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215018654 GTIN: 00691215018654
Warranty: -- Shipping Weight: 52 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6,000 Fits Beam Flange Width (in.): 3 to 8-5/8 Headroom (in.): 3-3/8
Operation: Manual Push
