Model Details

EHLT-3648-5-44

Printer Friendly
EHLT-3648-5-44

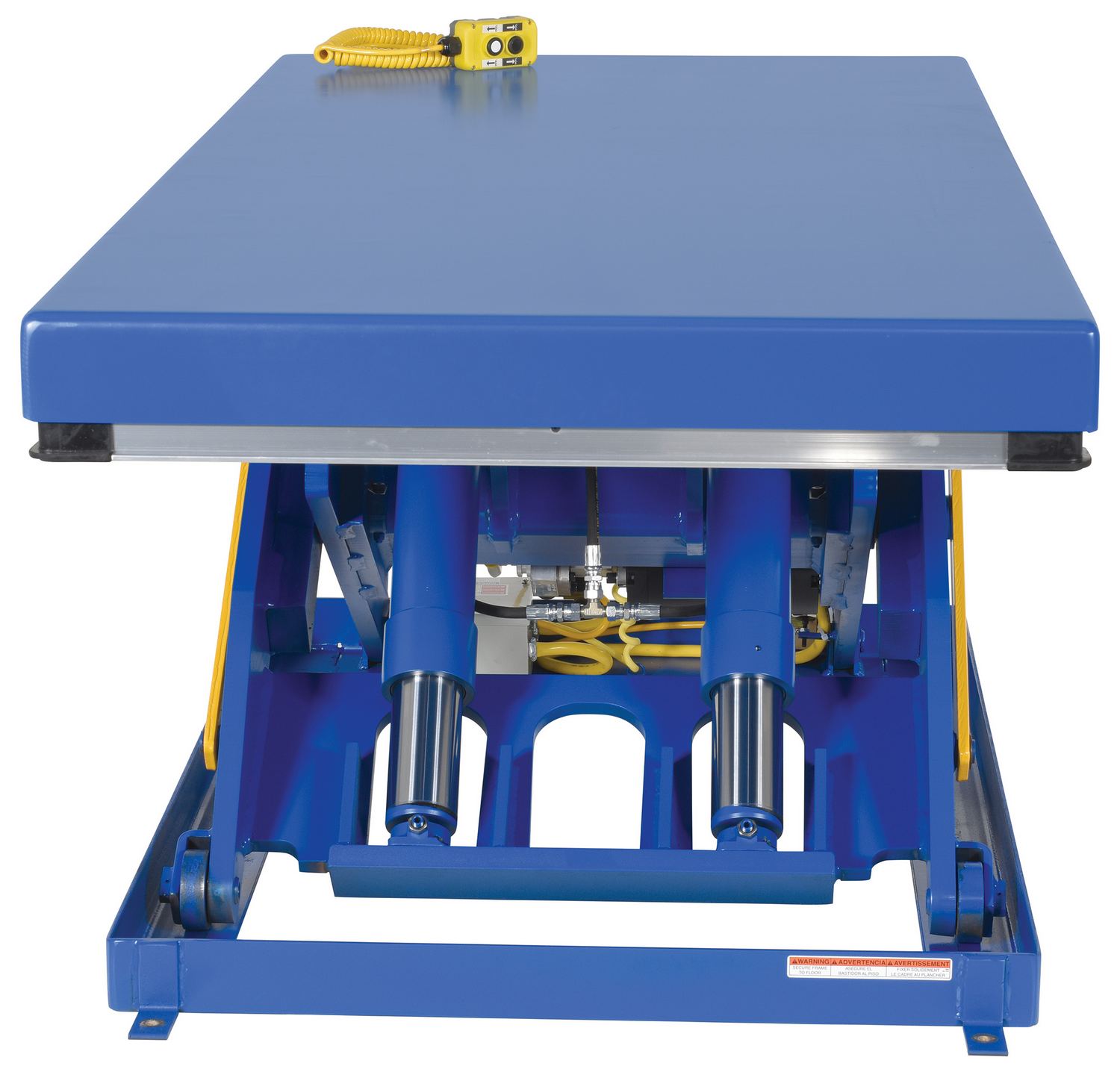

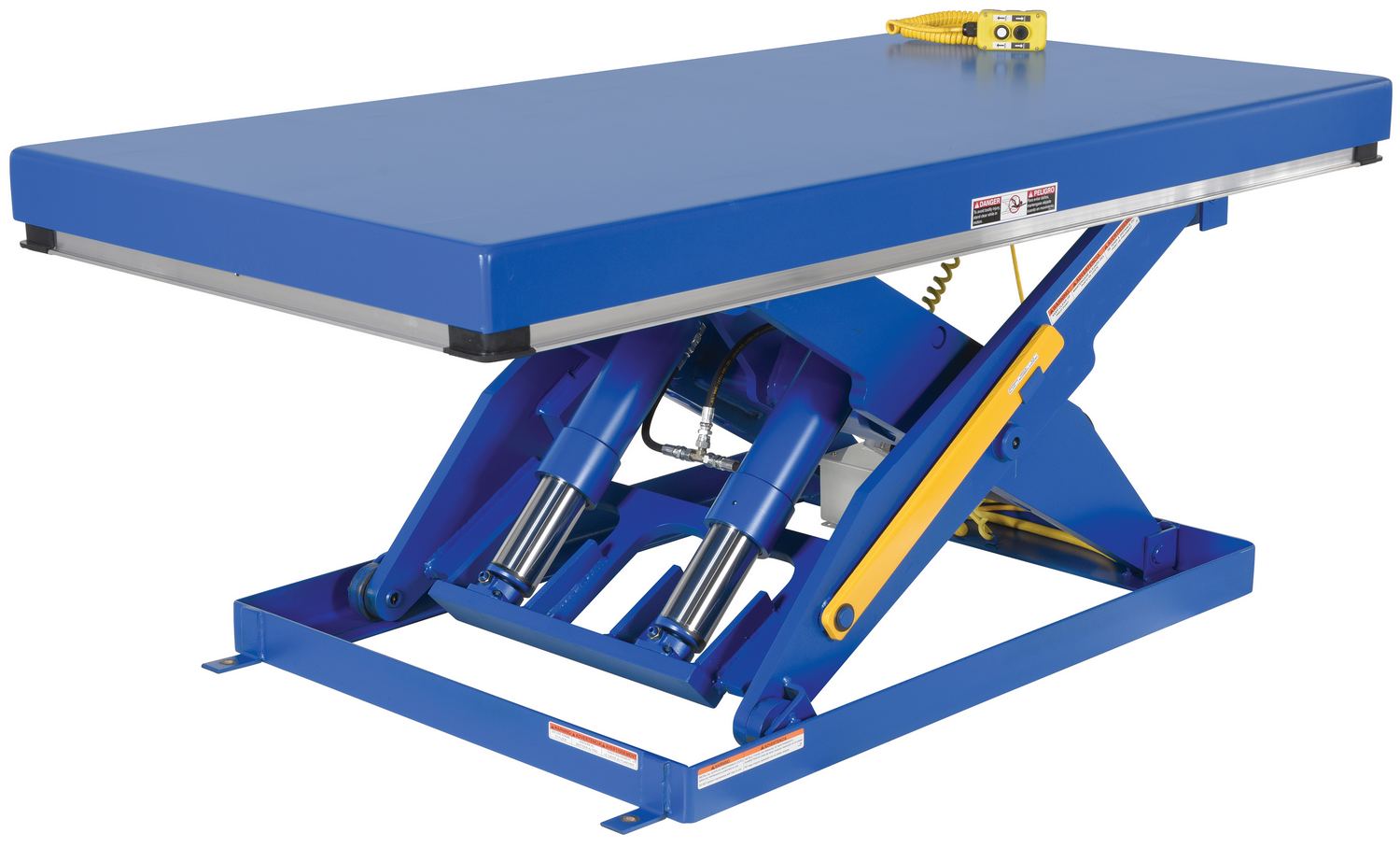

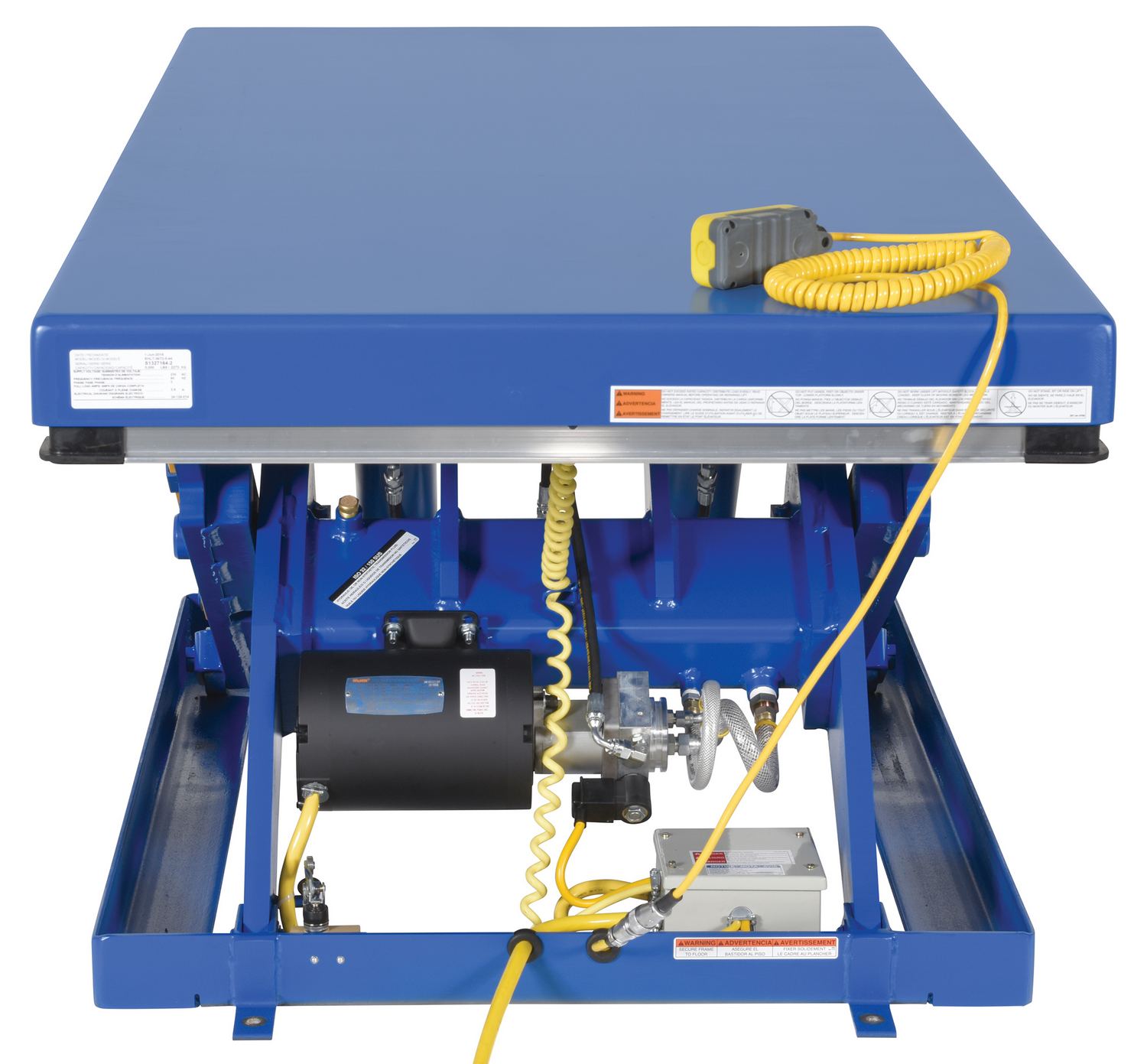

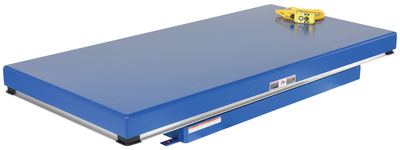

Steel Electric Hydraulic Lift Table 36 In. x 48 In. 5000 Lb. Capacity Blue

The electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table, fused push button control, internal safety velocity fuse to maintain platform height in the event of hose or fitting failure, integral maintenance prop, adjustable upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available. Contact factory if platform dimensions are crucial.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
Total Ship Wt.(lbs.): 1094 (only 1 package) Size: 36.375"W x 54"L x 8"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 5000 Travel Time (sec.): 32 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
Raised Height (in.): 44 Lowered Height (in.): 8 Platform Width/Length (in.): 36-3/8 x 48-3/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLT-3648-5-44
EHLT-3648-5-44

Steel Electric Hydraulic Lift Table 36 In. x 48 In. 5000 Lb. Capacity Blue

The electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table, fused push button control, internal safety velocity fuse to maintain platform height in the event of hose or fitting failure, integral maintenance prop, adjustable upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available. Contact factory if platform dimensions are crucial.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
Dimensions: 36.375"W x 54"L x 8"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215086271 GTIN: 00691215086271
Warranty: -- Shipping Weight: 1094 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 5000 Travel Time (sec.): 32 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
Raised Height (in.): 44 Lowered Height (in.): 8 Platform Width/Length (in.): 36-3/8 x 48-3/8
