Model Details

EHLT-4848-3-43-PSS

Printer Friendly
EHLT-4848-3-43-PSS

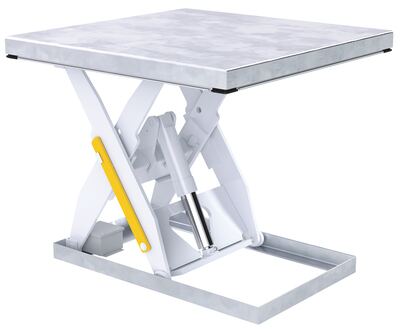

Partially Stainless Steel Electric Hydraulic Lift Table 48 In. x 48 In. 3000 Lb. Capacity Blue/Silver

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points during the lowering of the table, safety velocity fuse to maintain platform height in the event of hose or fitting failure, 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop the table at maximum height. A 2HP, 460V, 3 phase, 60 Hz totally enclosed motor is standard with additional voltage options available. This unit has a 3000 psi hydraulic component rating.

  • Partially stainless steel construction for durability
  • Large platform to handle large awkward sized material
  • AC powered for constant power supply functionality
  • Remote control capability to create distance between personnel and table
Total Ship Wt.(lbs.): 841 (only 1 package) Size: 48.375"W x 51"L x 7"H Color: Silver (Frame, Deck), White (Leg Set) Non-Returnable

Uniform Capacity (lb.): 3,000 Travel Time (sec.): 16 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
Raised Height (in.): 43 Lowered Height (in.): 7 Platform Width/Length (in.): 48-3/8 X 48-3/8
Frame and Deck Material: Stainless Steel Greasable Pins and Roller Material: Stainless Steel Scissor Legset Material: Carbon Steel with Powder Coat White Finish
Stainless Steel Finish: Unpolished Mill Finish Overall Length (in.): 51

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLT-4848-3-43-PSS
EHLT-4848-3-43-PSS

Partially Stainless Steel Electric Hydraulic Lift Table 48 In. x 48 In. 3000 Lb. Capacity Blue/Silver

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points during the lowering of the table, safety velocity fuse to maintain platform height in the event of hose or fitting failure, 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop the table at maximum height. A 2HP, 460V, 3 phase, 60 Hz totally enclosed motor is standard with additional voltage options available. This unit has a 3000 psi hydraulic component rating.

  • Partially stainless steel construction for durability
  • Large platform to handle large awkward sized material
  • AC powered for constant power supply functionality
  • Remote control capability to create distance between personnel and table
Dimensions: 48.375"W x 51"L x 7"H Sell UOM: EA-Each Color: Silver (Frame, Deck), White (Leg Set)
Material: 304 Stainless Steel (Frame, Deck), Carbon Steel (Leg Set) UPC: 691215319775 GTIN: 00691215319775
Warranty: -- Shipping Weight: 841 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 3,000 Travel Time (sec.): 16 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
Raised Height (in.): 43 Lowered Height (in.): 7 Platform Width/Length (in.): 48-3/8 X 48-3/8
Frame and Deck Material: Stainless Steel Greasable Pins and Roller Material: Stainless Steel Scissor Legset Material: Carbon Steel with Powder Coat White Finish
Stainless Steel Finish: Unpolished Mill Finish Overall Length (in.): 51
