Model Details

EHLT-WSI-3248-1.5-36

Not Yet Available, Coming Soon, Contact Vestil for Specifics

Printer Friendly
EHLT-WSI-3248-1.5-36

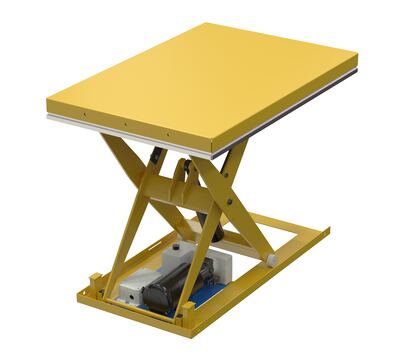

Steel Electric Hydraulic Scissor Table 32"x48" With Internal Power Unit 1,500 Lb. Capacity Yellow

The work station electric hydraulic scissor table is designed to raise products up to an ergonomic working height. It maximizes safety with minimum space requirements and is ideal for all types of manufacturing and warehouse facilities. The 460V 3-phase internal power unit comes with a standard hand control. An electric toe guard also comes standard for pinch point protection.

  • Open design, functional from all four sides
  • Emergency safety-stop hydraulic fuses
  • 13 Second travel time (based on 3 phase motor)
  • Lengthy 8' hand pendant cord
Total Ship Wt.(lbs.): 356 (only 1 package) Size: 31.4375"W x 47.5"L x 36"H Color: Yellow

Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 Travel Time (sec.): 13
Standard Voltage/Phase: 460/3 Controller Cord Length (ft): 8 Frame Material: Steel
Overload Protection: Yes Operation Method: Push Button

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLT-WSI-3248-1.5-36
EHLT-WSI-3248-1.5-36

Steel Electric Hydraulic Scissor Table 32"x48" With Internal Power Unit 1,500 Lb. Capacity Yellow

The work station electric hydraulic scissor table is designed to raise products up to an ergonomic working height. It maximizes safety with minimum space requirements and is ideal for all types of manufacturing and warehouse facilities. The 460V 3-phase internal power unit comes with a standard hand control. An electric toe guard also comes standard for pinch point protection.

  • Open design, functional from all four sides
  • Emergency safety-stop hydraulic fuses
  • 13 Second travel time (based on 3 phase motor)
  • Lengthy 8' hand pendant cord
Dimensions: 31.4375"W x 47.5"L x 36"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215376655 GTIN: 00691215376655
Warranty: -- Shipping Weight: 356 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: USA
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1500 Lower/Raised Height (in.): 7 to 36 Travel Time (sec.): 13
Standard Voltage/Phase: 460/3 Controller Cord Length (ft): 8 Frame Material: Steel
Overload Protection: Yes Operation Method: Push Button
