Model Details

EHLTD-4848-2-70

Printer Friendly
EHLTD-4848-2-70

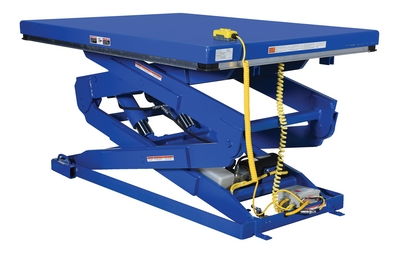

Steel Double Leg Scissor Lift Table 48 In. x 48 In. 2000 Lb. Capacity Blue

The double scissor lift table can achieve the extra reach you're looking for. The full featured electric scissor table is used by all types of manufacturing and warehouse facilities. The safety features include an electric toe guard to protect pinch points during lowering of the table, brass safety velocity fuse to maintain platform height in the event of a hose or fitting failure, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed with additional voltage options available.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
Total Ship Wt.(lbs.): 1214 (only 1 package) Size: 48.375"W x 48.375"L x 10"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2000 Travel Time (sec.): 16 Vertical Travel (in.): 60
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push-Button Hand Control: 24V AC
Raised Height (in.): 70 Lowered Height (in.): 10 Platform Width/Length (in.): 48-3/8 x 48-3/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTD-4848-2-70
EHLTD-4848-2-70

Steel Double Leg Scissor Lift Table 48 In. x 48 In. 2000 Lb. Capacity Blue

The double scissor lift table can achieve the extra reach you're looking for. The full featured electric scissor table is used by all types of manufacturing and warehouse facilities. The safety features include an electric toe guard to protect pinch points during lowering of the table, brass safety velocity fuse to maintain platform height in the event of a hose or fitting failure, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed with additional voltage options available.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
Dimensions: 48.375"W x 48.375"L x 10"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215086400 GTIN: 00691215086400
Warranty: -- Shipping Weight: 1214 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2000 Travel Time (sec.): 16 Vertical Travel (in.): 60
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push-Button Hand Control: 24V AC
Raised Height (in.): 70 Lowered Height (in.): 10 Platform Width/Length (in.): 48-3/8 x 48-3/8
