Model Details

EHLTGT-4452-4-36

Printer Friendly
EHLTGT-4452-4-36

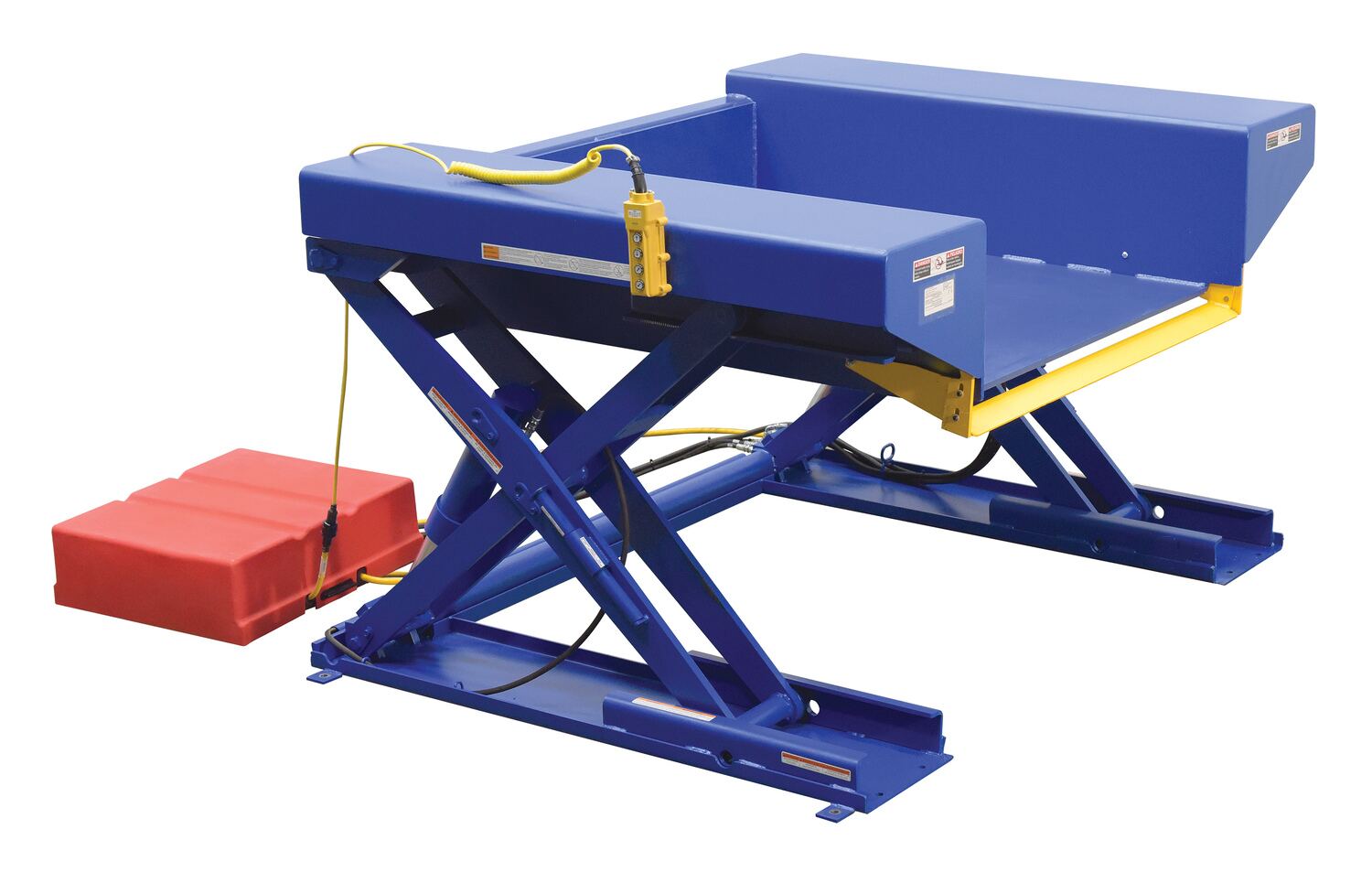

Steel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 52 In. 4000 Lb. Capacity Blue

A ground lift and tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. A remote power unit with hand-held control is standard.

  • A variety of tilt angles for optimum ergonomic positions
  • Large capacity for handling loads both big and small
  • Simple installation for quick and immediate use
  • Lowered height allows pallet and hand trucks to load and unload easily
Total Ship Wt.(lbs.): 2230 (only 1 package) Size: 76.25"W x 60.375"L x 86.9375"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Lowered Height (in.): 1/2 Raised Height (in.): 34
Platform Width (in.): 44 Platform Length (in.): 52-3/4 Hand Held Control: 4 Button NEMA 4 Pendant
Pendant Coil Cord (ft): 8 Voltage/Phase: 460/3 Power: AC
Hertz: 60 Remote Power Unit (in): 24-1/2 x 22-1/2 x 7-1/2 High Back Plate (in): 12
Max Tilt Angle: 45 degrees

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTGT-4452-4-36
EHLTGT-4452-4-36

Steel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 52 In. 4000 Lb. Capacity Blue

A ground lift and tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. A remote power unit with hand-held control is standard.

  • A variety of tilt angles for optimum ergonomic positions
  • Large capacity for handling loads both big and small
  • Simple installation for quick and immediate use
  • Lowered height allows pallet and hand trucks to load and unload easily
Dimensions: 76.25"W x 60.375"L x 86.9375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215323178 GTIN: 00691215323178
Warranty: -- Shipping Weight: 2230 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 4000 Lowered Height (in.): 1/2 Raised Height (in.): 34
Platform Width (in.): 44 Platform Length (in.): 52-3/4 Hand Held Control: 4 Button NEMA 4 Pendant
Pendant Coil Cord (ft): 8 Voltage/Phase: 460/3 Power: AC
Hertz: 60 Remote Power Unit (in): 24-1/2 x 22-1/2 x 7-1/2 High Back Plate (in): 12
Max Tilt Angle: 45 degrees
