Model Details

EHN-40-C-AH

EHN-40-C-AH

Steel Air and Hand Pump Hydraulic Shop Crane 4000 Lb. Capacity Yellow

This crane allows one person to maneuver product from location to location, and then lift it with everyday factory air. If air is temporarily unavailable, lift product with the hand pump hydraulic option. Air raises unit 7" to 8" per second. Hand pump raises units 1/2" per stroke. Units roll on 3-1/2." x 1-1/4." Cast steel casters, (4) swivel in back (2) rigid in front. The hoist offers heavy-duty lifting power, while optimizing space when in the folded position.

  • Telescopic boom with four settings for different lifting heights and capacities
  • Boom is raised and lowered with a manual hydraulic hand pump
  • High-capacity hydraulic cylinder provides for faster lifting action
  • Features a large diameter ram to withstand angled loads when lifting

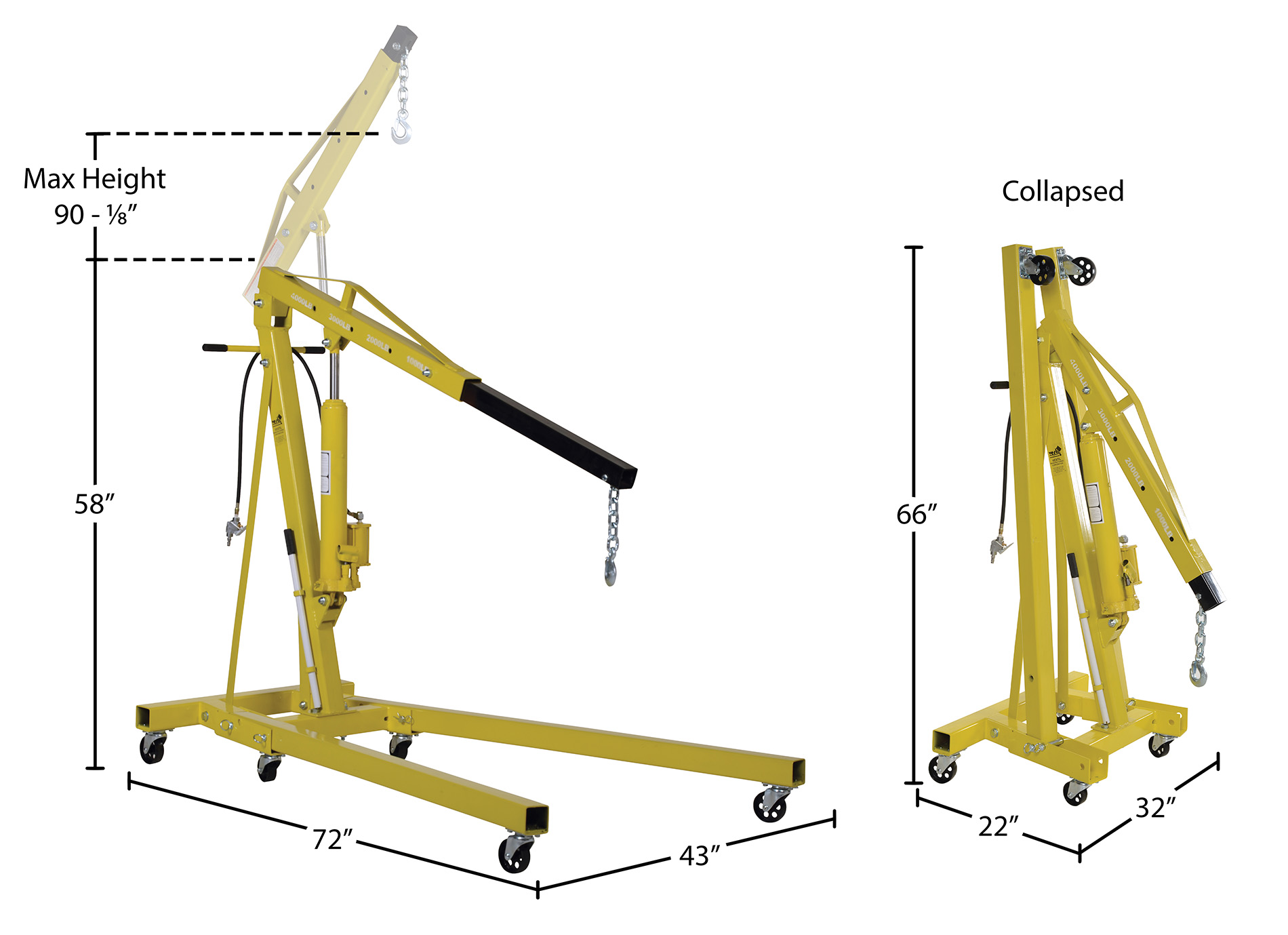

Total Ship Wt.(lbs.): 249 (only 1 package) Size: 43"W x 72"L x 58"H Color: Yellow

Uniform Capacity (lb.): 4,000 Leg Design: Foldable 4,000 Capacity Reach (in.): 39
4,000 Capacity Boom Height (in.): 21 to 86 3,000 Capacity Reach (in.): 46 3,000 Capacity Boom Height (in.): 15 to 91
2,000 Capacity Reach (in.): 53 2,000 Capacity Boom Height (in.): 9 to 97 1,000 Capacity Reach (in.): 61
1,000 Capacity Boom Height (in.): 3 to 102 (2) Front and (2) Rear Caster Diameter (in.): 3-1/2 (2) Front and (2) Rear Caster Width (in.): 1-1/4
Middle Caster Diameter (in.): 3 Middle Caster Width (in.): 1-1/4 Caster Type: Swivel
Caster Material: Cast Steel Chain Length w/ Hook (in.): 11 Collapsed Width (in.): 32
Collapsed Length (in.): 22 Collapsed Height (in.): 66 Crane Brakes: No
Finish: Powder Coat Hook Type: Eye (Non-Swivel) Hook Opening (in.): 1
Hook Material: Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHN-40-C-AH


EHN-40-C-AH

Steel Air and Hand Pump Hydraulic Shop Crane 4000 Lb. Capacity Yellow

This crane allows one person to maneuver product from location to location, and then lift it with everyday factory air. If air is temporarily unavailable, lift product with the hand pump hydraulic option. Air raises unit 7" to 8" per second. Hand pump raises units 1/2" per stroke. Units roll on 3-1/2." x 1-1/4." Cast steel casters, (4) swivel in back (2) rigid in front. The hoist offers heavy-duty lifting power, while optimizing space when in the folded position.

  • Telescopic boom with four settings for different lifting heights and capacities
  • Boom is raised and lowered with a manual hydraulic hand pump
  • High-capacity hydraulic cylinder provides for faster lifting action
  • Features a large diameter ram to withstand angled loads when lifting
Dimensions: 43"W x 72"L x 58"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215049368 GTIN: 00691215049368
Warranty: -- Shipping Weight: 249 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Leg Design: Foldable 4,000 Capacity Reach (in.): 39
4,000 Capacity Boom Height (in.): 21 to 86 3,000 Capacity Reach (in.): 46 3,000 Capacity Boom Height (in.): 15 to 91
2,000 Capacity Reach (in.): 53 2,000 Capacity Boom Height (in.): 9 to 97 1,000 Capacity Reach (in.): 61
1,000 Capacity Boom Height (in.): 3 to 102 (2) Front and (2) Rear Caster Diameter (in.): 3-1/2 (2) Front and (2) Rear Caster Width (in.): 1-1/4
Middle Caster Diameter (in.): 3 Middle Caster Width (in.): 1-1/4 Caster Type: Swivel
Caster Material: Cast Steel Chain Length w/ Hook (in.): 11 Collapsed Width (in.): 32
Collapsed Length (in.): 22 Collapsed Height (in.): 66 Crane Brakes: No
Finish: Powder Coat Hook Type: Eye (Non-Swivel) Hook Opening (in.): 1
Hook Material: Steel
