Model Details

ELH-30-5

Printer Friendly
ELH-30-5

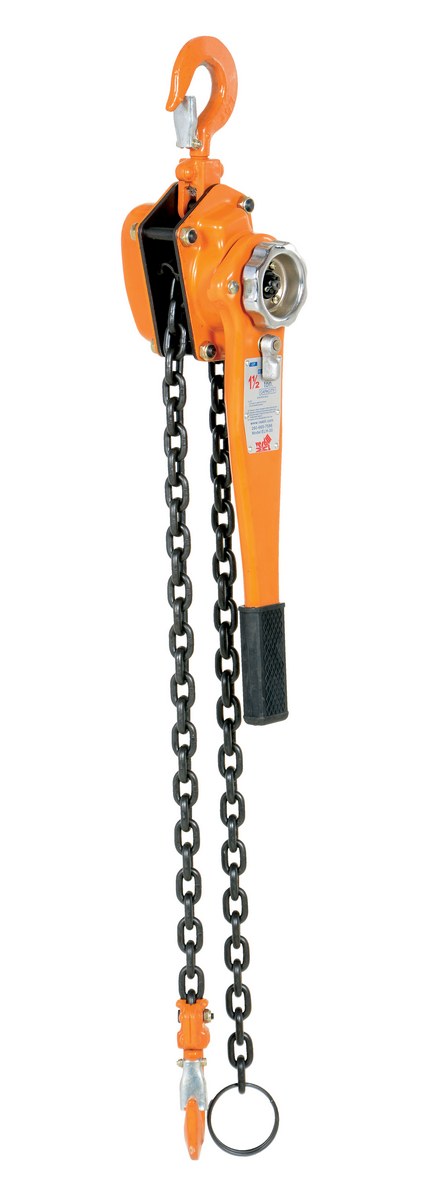

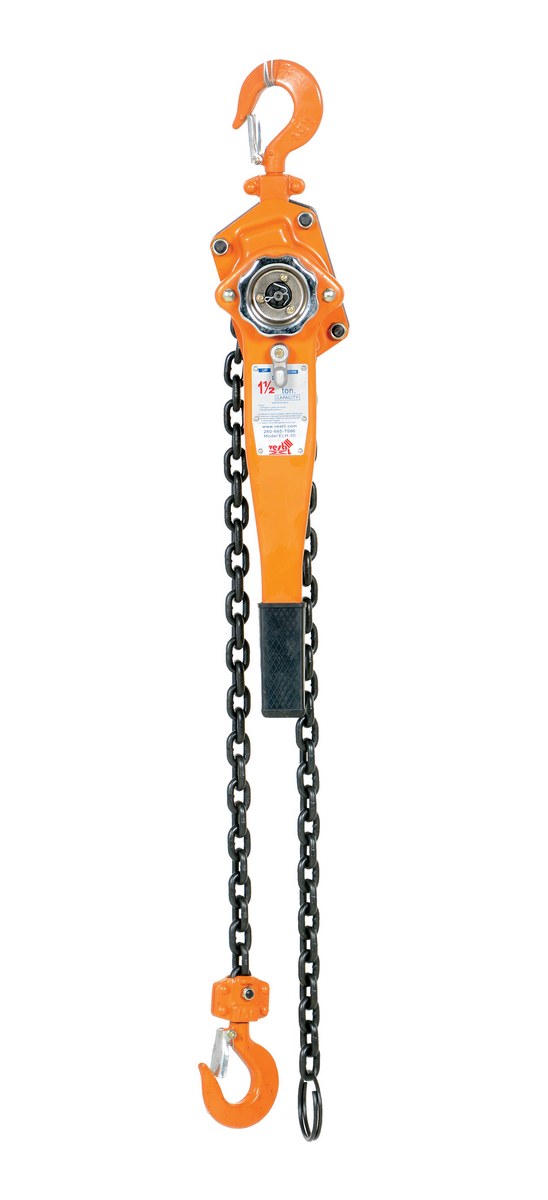

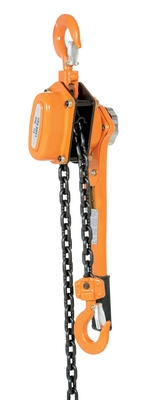

Steel Economy Lever Hoist 5 Ft. Chain Length 3000 Lb. Capacity Orange

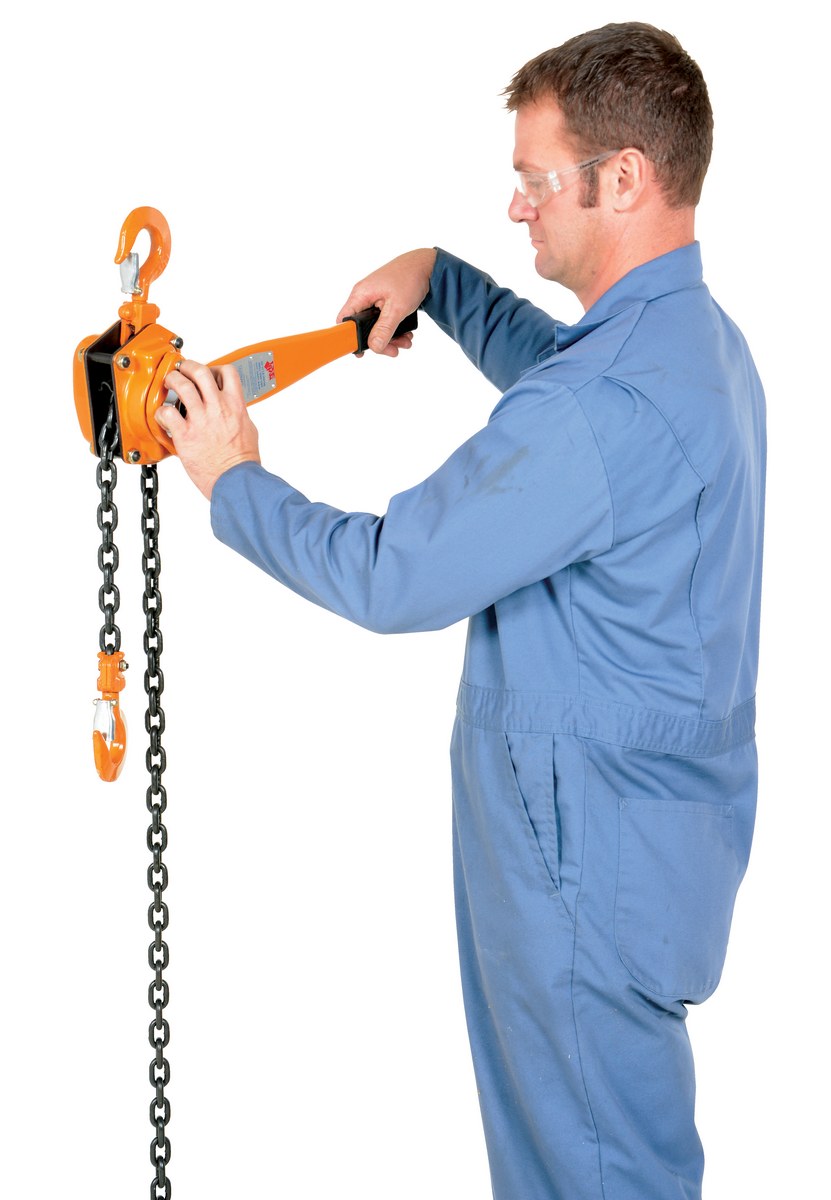

The economy lever hoist is ideal for lifting and pulling applications. It features a completely enclosed Weston-type automatic brake system for precise load positioning. This hoist is constructed from cold-formed stamped steel, which confers great strength, impact resistance and long product life. Durable baked enamel paint shields non-wearing parts from environmental damage. Single-hand "free chaining" is simple and convenient allowing smooth, trouble-free operation in the vertical or horizontal position. Both the swivel hooks include deformation indicators. Every chain hoist is issued with an individual test certificate.

  • 360 degree lever handle rotation
  • Includes rugged 12 pocket tool storage bag
  • Tested to one-hundred fifty (150) percent of the rated capacity
  • Meets applicable ASME B30.21 specifications
Total Ship Wt.(lbs.): 28 (only 1 package) Size: 5.5"W x 20"L x 7.5"H Color: Orange

Uniform Capacity (lb.): 3,000 Standard Lift (ft.): 5 Minimum Distance Between Hooks (in.): 15
Handle Length (in.): 16 Rotation (degrees): 360 Brake Type: Weston
Alloy Steel Chain Rated Grade: 80 Lever Resistance (lb.): 48

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: ELH-30-5
ELH-30-5

Steel Economy Lever Hoist 5 Ft. Chain Length 3000 Lb. Capacity Orange

The economy lever hoist is ideal for lifting and pulling applications. It features a completely enclosed Weston-type automatic brake system for precise load positioning. This hoist is constructed from cold-formed stamped steel, which confers great strength, impact resistance and long product life. Durable baked enamel paint shields non-wearing parts from environmental damage. Single-hand "free chaining" is simple and convenient allowing smooth, trouble-free operation in the vertical or horizontal position. Both the swivel hooks include deformation indicators. Every chain hoist is issued with an individual test certificate.

  • 360 degree lever handle rotation
  • Includes rugged 12 pocket tool storage bag
  • Tested to one-hundred fifty (150) percent of the rated capacity
  • Meets applicable ASME B30.21 specifications
Dimensions: 5.5"W x 20"L x 7.5"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215018258 GTIN: 00691215018258
Warranty: -- Shipping Weight: 28 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3,000 Standard Lift (ft.): 5 Minimum Distance Between Hooks (in.): 15
Handle Length (in.): 16 Rotation (degrees): 360 Brake Type: Weston
Alloy Steel Chain Rated Grade: 80 Lever Resistance (lb.): 48
