Model Details

EPT-2547-30-SCL-AGM

EPT-2547-30-SCL-AGM

Steel Electric Pallet Truck with Scale 25 In. x 47 In. 3,300 Lb. Capacity

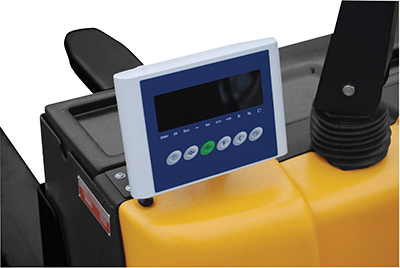

The electric pallet truck with scale can verify inbound and outbound freight right on your pallet truck and then move your loads with ease. The LCD scale and function keys (zero, tare, net/gross, print, LB/KG), displays weight in 1 pound increments within trucks rated capacity. The scale display operates on standard alkaline batteries (best accuracy is 0.01 percent of maximum calibrated weight). The scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. An individual can raise and lower loads with a push of a button. The unit makes it easy to maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods provide long service. The high torque DC drive and lift motor handles heavy duty jobs, while the ergonomic handle features an easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip raise and lower buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction
Total Ship Wt.(lbs.): 702 (only 1 package) Size: 28.5"W x 66"L x 49"H Color: Black / Yellow Non-Returnable

Overall Fork Width (in.): 25 Overall Fork Width (in.): 47 Uniform Capacity (lb.): 3000
Lowered Height (in.): 3-3/8 Raised Height (in.): 8 Battery Type: (2) AGM
DC Motor Voltage: 24 Battery Charger: 120V Input, 24V/10 amp Turn Radius (in.): 52
Drive KW: 0.7 Lift Motor KW: 1.3 Operation at Full Charge (hours): 3 to 4
Operation When Used Intermittently (hours): 8 Drive Wheel Diameter (in.): 10 Drive Wheel Width (in): 3-1/8
Load Roller Diameter (in.): 2-3/4 Load Roller Width (in.): 3 Stabilizing Roller Diameter (in.): 1-1/2
Stabilizing Roller Width (in.): 3 Wheel & Roller Type: Poly on Steel

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EPT-2547-30-SCL-AGM


EPT-2547-30-SCL-AGM

Steel Electric Pallet Truck with Scale 25 In. x 47 In. 3,300 Lb. Capacity

The electric pallet truck with scale can verify inbound and outbound freight right on your pallet truck and then move your loads with ease. The LCD scale and function keys (zero, tare, net/gross, print, LB/KG), displays weight in 1 pound increments within trucks rated capacity. The scale display operates on standard alkaline batteries (best accuracy is 0.01 percent of maximum calibrated weight). The scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. An individual can raise and lower loads with a push of a button. The unit makes it easy to maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods provide long service. The high torque DC drive and lift motor handles heavy duty jobs, while the ergonomic handle features an easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip raise and lower buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction
Dimensions: 28.5"W x 66"L x 49"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215086653 GTIN: 00691215086653
Warranty: -- Shipping Weight: 702 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Overall Fork Width (in.): 25 Overall Fork Width (in.): 47 Uniform Capacity (lb.): 3000
Lowered Height (in.): 3-3/8 Raised Height (in.): 8 Battery Type: (2) AGM
DC Motor Voltage: 24 Battery Charger: 120V Input, 24V/10 amp Turn Radius (in.): 52
Drive KW: 0.7 Lift Motor KW: 1.3 Operation at Full Charge (hours): 3 to 4
Operation When Used Intermittently (hours): 8 Drive Wheel Diameter (in.): 10 Drive Wheel Width (in): 3-1/8
Load Roller Diameter (in.): 2-3/4 Load Roller Width (in.): 3 Stabilizing Roller Diameter (in.): 1-1/2
Stabilizing Roller Width (in.): 3 Wheel & Roller Type: Poly on Steel
