Model Details

FDG-30

FDG-30

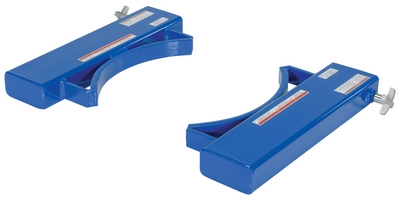

Steel Fork Mounted Drum Gripper 30 Gallon 800 Lb. Capacity Blue

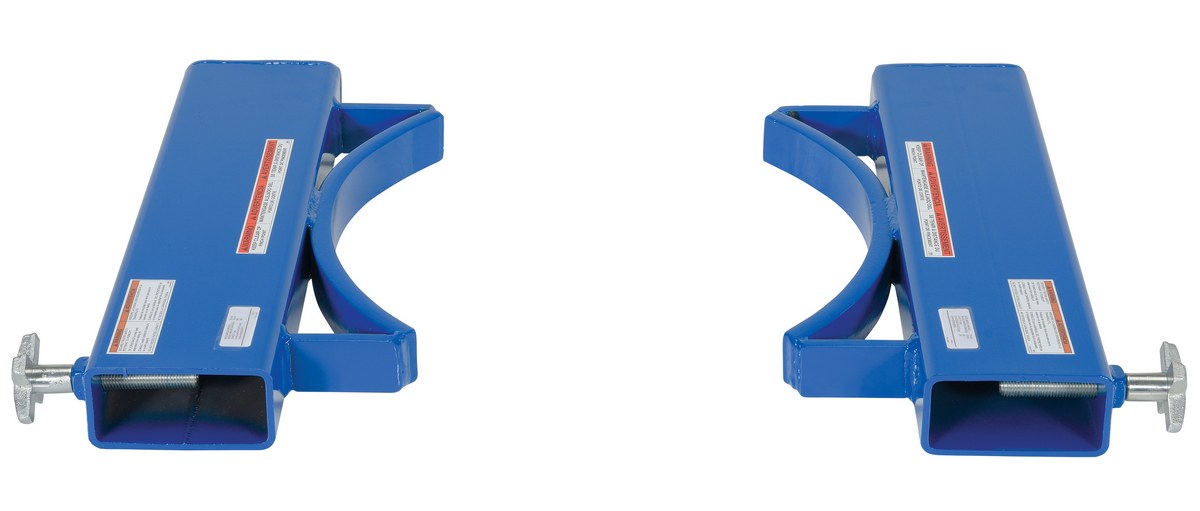

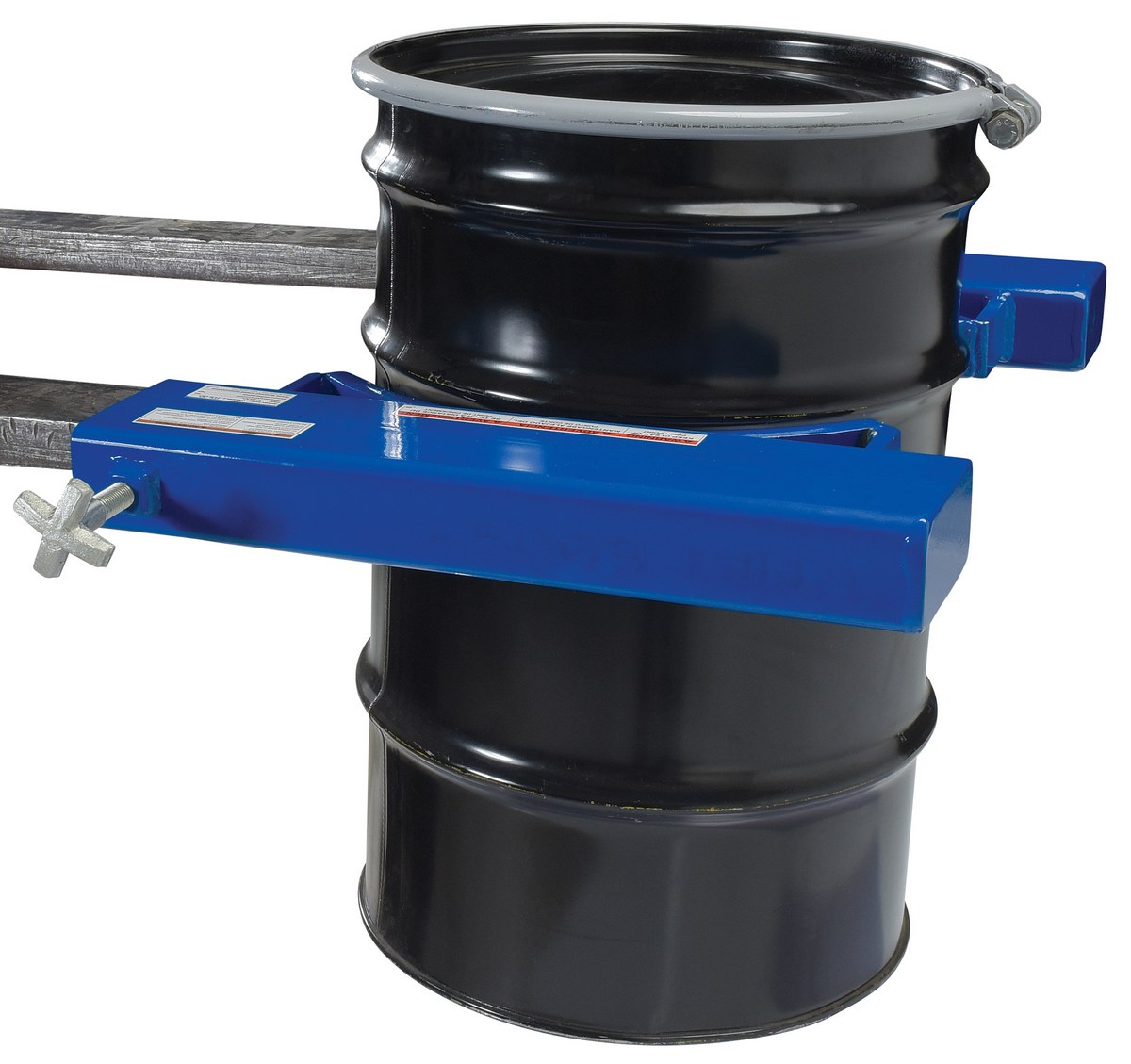

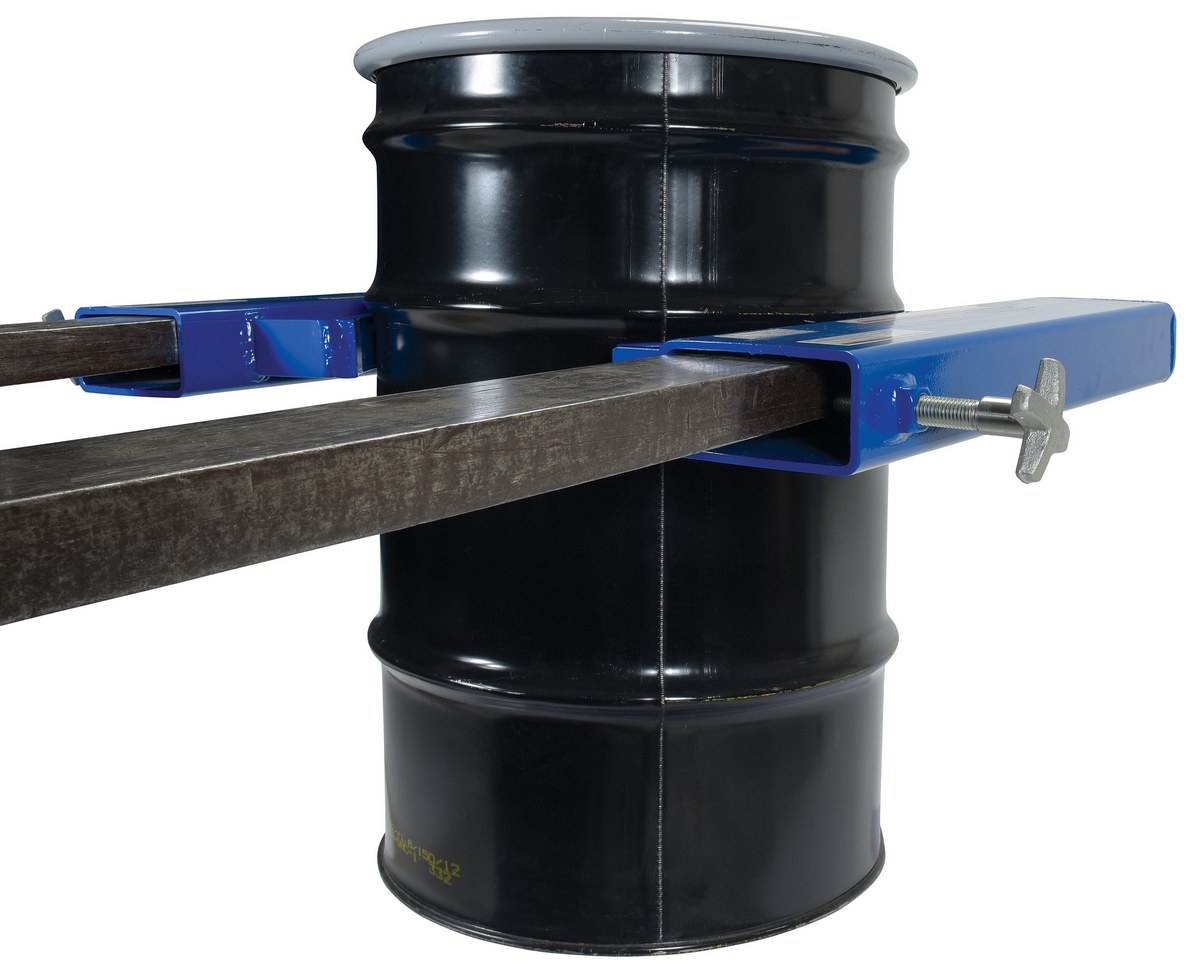

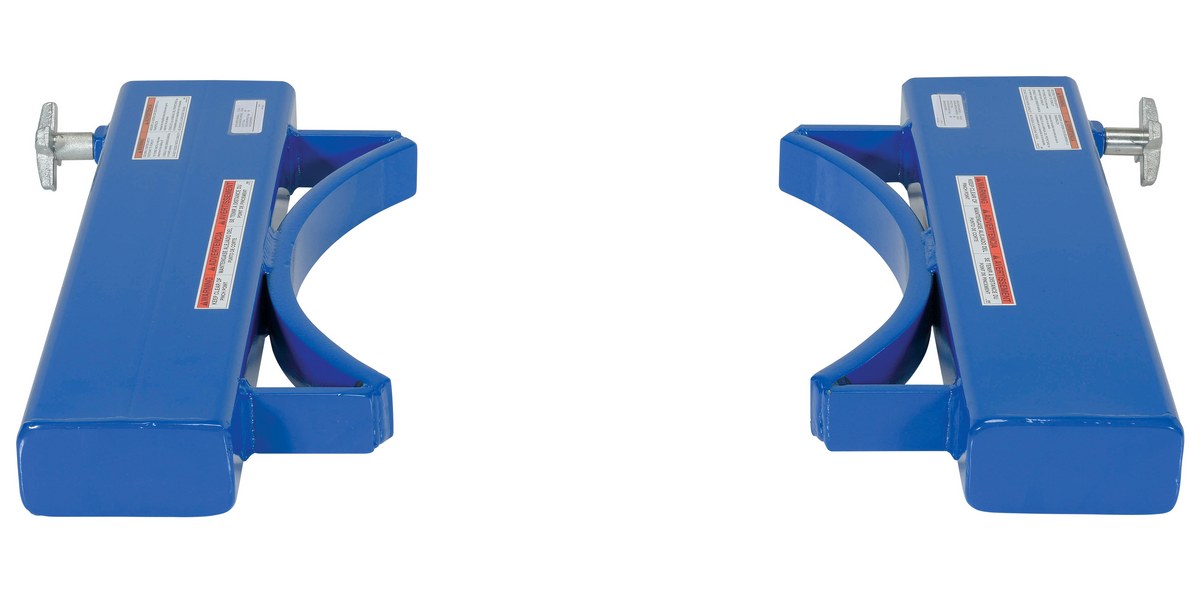

This pair of Fork Mounted drum grippers are designed for use with fork trucks fitted with hydraulic lateral fork positions only. Easily attaches to your forks for easy drum positioning. Available for use with steel drums. Secure to forks with friction-lock screw mechanism.

  • Drum gripper is designed for use with fork trucks fitted with hydraulic lateral fork positions
  • Easily attaches to forks for easy drum positioning
  • Available for use with steel drums
  • Secure to forks with friction-lock screw mechanism
Total Ship Wt.(lbs.): 80 (Multiple Packages: P1: 40 lbs + P2: 40 lbs) Size: 16.3125"W x 24"L x 3"H Color: Blue

Uniform Capacity (lb.): 800 Accepts: 30-gallon steel drum Usable Fork Opening Height (in.): 2-1/2
Usable Fork Opening Width (in.): 5-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FDG-30


FDG-30

Steel Fork Mounted Drum Gripper 30 Gallon 800 Lb. Capacity Blue

This pair of Fork Mounted drum grippers are designed for use with fork trucks fitted with hydraulic lateral fork positions only. Easily attaches to your forks for easy drum positioning. Available for use with steel drums. Secure to forks with friction-lock screw mechanism.

  • Drum gripper is designed for use with fork trucks fitted with hydraulic lateral fork positions
  • Easily attaches to forks for easy drum positioning
  • Available for use with steel drums
  • Secure to forks with friction-lock screw mechanism
Dimensions: 16.3125"W x 24"L x 3"H Sell UOM: PR-Pair Color: Blue
Material: Welded Steel UPC: 691215019323 GTIN: 00691215019323
Warranty: -- Shipping Weight: 40 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Uniform Capacity (lb.): 800 Accepts: 30-gallon steel drum Usable Fork Opening Height (in.): 2-1/2
Usable Fork Opening Width (in.): 5-1/2
