Model Details

FE-5-108-P

Printer Friendly
FE-5-108-P

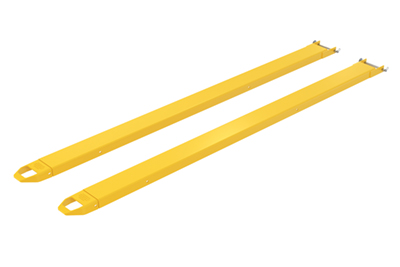

Steel Pin Style Fork Extensions 5 In. x 108 In. 4000 Lb. Capacity Yellow

Provide the extra support needed to lift long or large objects with a fork truck using a pair of fork extensions. Welded steel construction with cast steel tips. Powder coat yellow finish. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the existing fork. The rear spacer makes loading pallets into rear of trailer conveniently and easily. Practical for pushing pallets two or three deep into a trailer. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability
Total Ship Wt.(lbs.): 214 (only 1 package) Size: 9.5"W x 111.625"L x 2.3125"H Color: Yellow

Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 108 Fits Fork Extension Inside Height (in.): 2
Fits Fork Extension Inside Width (in.): 5 Usable Fork Extension Inside Width (in.): 5-1/2 Mount Style: Pin Style
Steel Thickness (in.): 5/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FE-5-108-P
FE-5-108-P

Steel Pin Style Fork Extensions 5 In. x 108 In. 4000 Lb. Capacity Yellow

Provide the extra support needed to lift long or large objects with a fork truck using a pair of fork extensions. Welded steel construction with cast steel tips. Powder coat yellow finish. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the existing fork. The rear spacer makes loading pallets into rear of trailer conveniently and easily. Practical for pushing pallets two or three deep into a trailer. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability
Dimensions: 9.5"W x 111.625"L x 2.3125"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215120166 GTIN: 00691215120166
Warranty: -- Shipping Weight: 214 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 108 Fits Fork Extension Inside Height (in.): 2
Fits Fork Extension Inside Width (in.): 5 Usable Fork Extension Inside Width (in.): 5-1/2 Mount Style: Pin Style
Steel Thickness (in.): 5/16
