Model Details

FHS-4-10

Printer Friendly
FHS-4-10

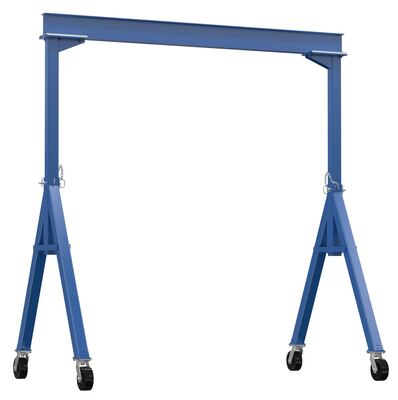

Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 4000 Lb. Capacity Blue

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

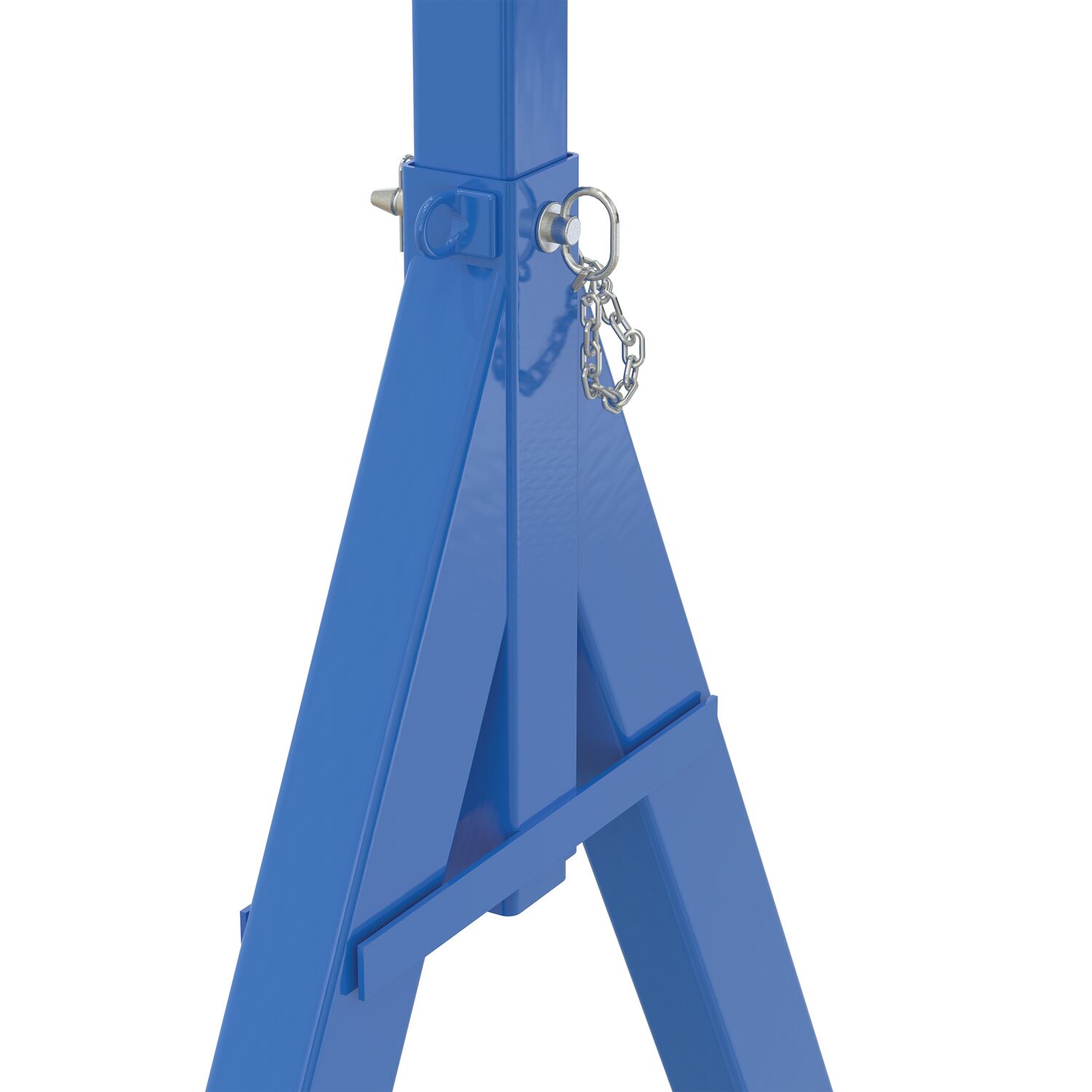

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

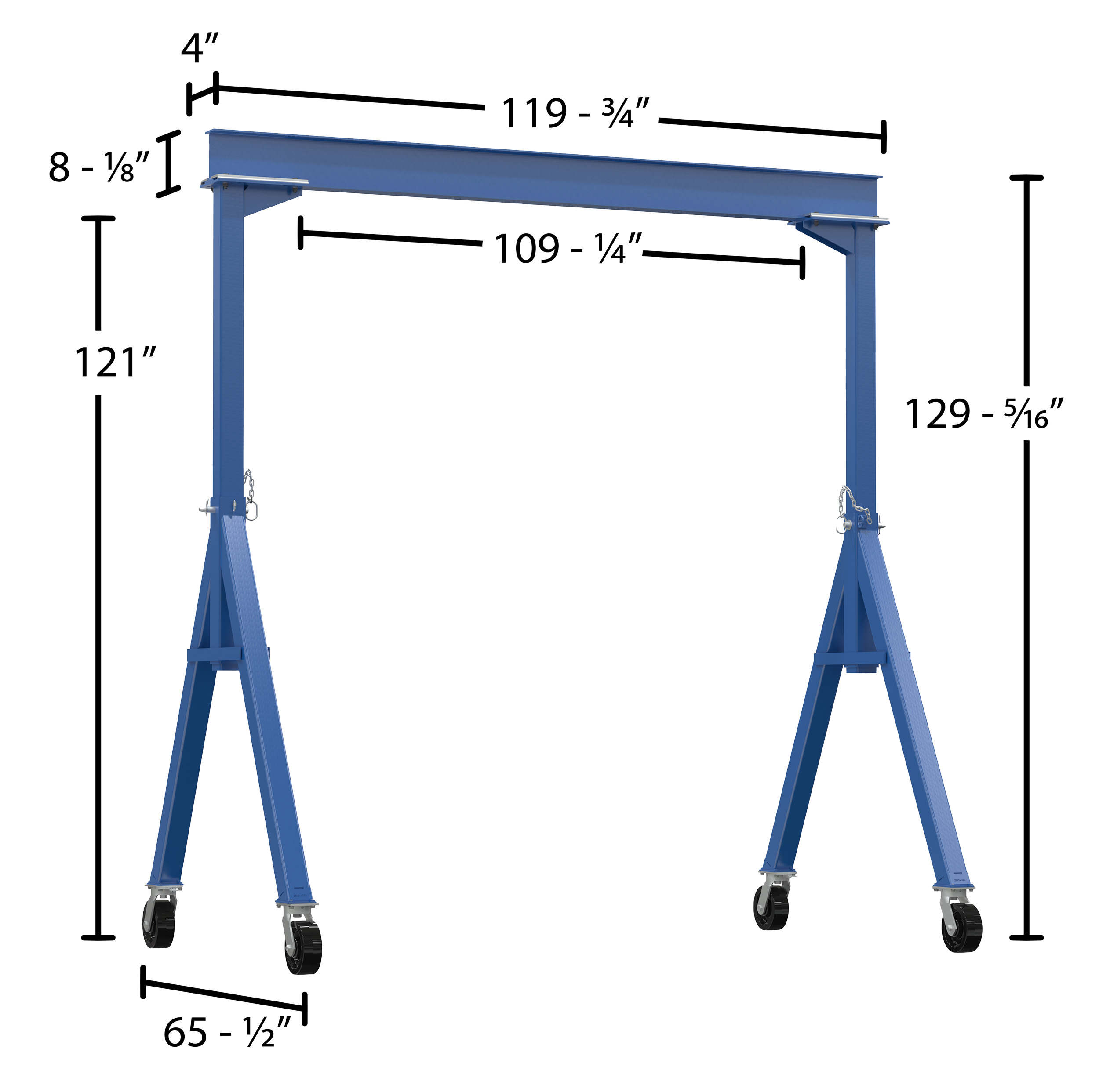

Total Ship Wt.(lbs.): 816 (Multiple Packages: P1: 625 lbs + P2: 191 lbs) Size: 64.5"W x 119.75"L x 128.3125"H Color: Blue

Uniform Capacity (lb.): 4,000 Overall I-Beam Length (ft.): 10 Overall I-Beam Height (in.): 8-1/8
I-Beam Flange Width (in.): 4 Under I-Beam to Ground (in.): 120 Base Width (in.): 64-1/2

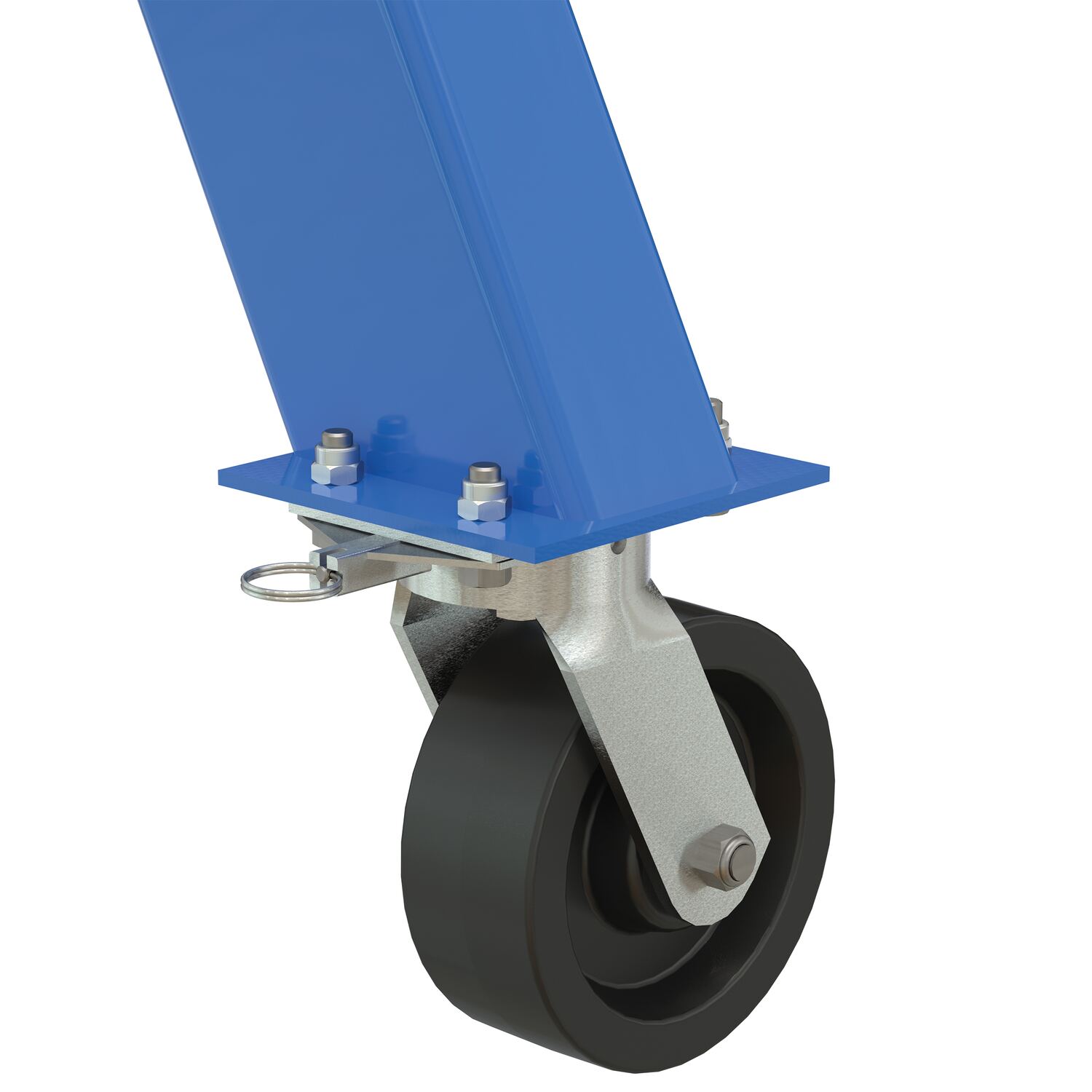

Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: Swivel (4) Position Locking Casters w/ Roller bearings Caster Material: Phenolic
Usable Length (in.): 89--3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHS-4-10
FHS-4-10

Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 4000 Lb. Capacity Blue

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Dimensions: 64.5"W x 119.75"L x 128.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215020305 GTIN: 00691215020305
Warranty: -- Shipping Weight: 625 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Overall I-Beam Length (ft.): 10 Overall I-Beam Height (in.): 8-1/8
I-Beam Flange Width (in.): 4 Under I-Beam to Ground (in.): 120 Base Width (in.): 64-1/2
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: Swivel (4) Position Locking Casters w/ Roller bearings Caster Material: Phenolic
Usable Length (in.): 89--3/4
