Model Details

FHS-4-15-PNU

Printer Friendly
FHS-4-15-PNU

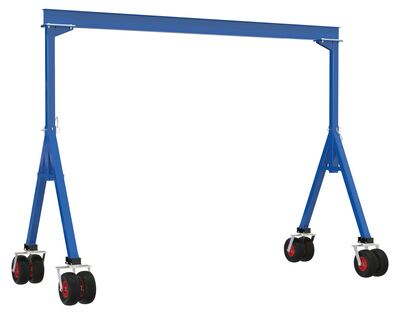

Steel Fixed Height Gantry Crane with Pneumatic Rubber Casters 15 Ft. 4000 Lb. Capacity Blue

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

  • Quick relocation ability
  • Pinned connections for quick set up and take down
  • Blue liquid paint finish
  • Smooth rolling with four swivel pneumatic casters
Total Ship Wt.(lbs.): 1058 (Multiple Packages: P1: 800 lbs + P2: 258 lbs) Size: 84.375"W x 190.75"L x 140.125"H Color: Blue

Uniform Capacity (lbs): 4000 Overall I-Beam Length (ft.): 15 Overall I-Beam Height (ft.): 8.125
I-Beam Flange Width (in.): 4 Under I-Beam Range (in.): 132 Base Width (in.): 84-3/8
Caster Quantity/Diameter/Width (in.): (4) 16 x 16 Caster Type: (4) Swivel Caster Material: RUBBER
Caster Top Plate (in.): 4x4.5 w/ adaptor plate Usable Trolley Travel Distance (in.): 149.75 Increment Height Adjustment (in.):

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHS-4-15-PNU
FHS-4-15-PNU

Steel Fixed Height Gantry Crane with Pneumatic Rubber Casters 15 Ft. 4000 Lb. Capacity Blue

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

  • Quick relocation ability
  • Pinned connections for quick set up and take down
  • Blue liquid paint finish
  • Smooth rolling with four swivel pneumatic casters
Dimensions: 84.375"W x 190.75"L x 140.125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215369725 GTIN: 00691215369725
Warranty: -- Shipping Weight: 800 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 4000 Overall I-Beam Length (ft.): 15 Overall I-Beam Height (ft.): 8.125
I-Beam Flange Width (in.): 4 Under I-Beam Range (in.): 132 Base Width (in.): 84-3/8
Caster Quantity/Diameter/Width (in.): (4) 16 x 16 Caster Type: (4) Swivel Caster Material: RUBBER
Caster Top Plate (in.): 4x4.5 w/ adaptor plate Usable Trolley Travel Distance (in.): 149.75 Increment Height Adjustment (in.):
