Model Details

FHSN-2-20

Printer Friendly
FHSN-2-20

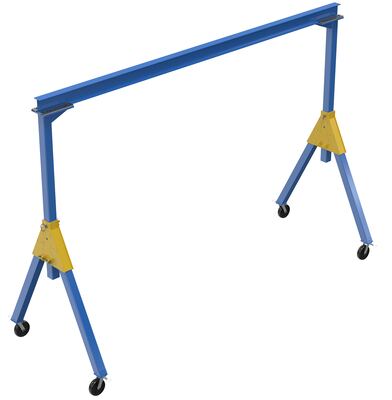

Steel Knockdown Fixed Gantry Crane with Glass Filled Nylon Casters 20 Ft. 2000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with four (4) 8" swivel casters with four-position locks (2K units have glass filled nylon casters). Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Powder coat blue provides durable attractive coverage
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 1060 (Multiple Packages: P1: 678 lbs + P2: 382 lbs) Size: 64.5"W x 239.75"L x 130.5"H Color: Blue

Uniform Capacity (lb.): 2000 Overall I-Beam Length (ft.): 20 Overall I-Beam Height (in.): 10-1/8
I-Beam Flange Width (in.): 4 Under I-Beam to Ground (in.): 120-3/8 Base Width (in.): 64-1/2
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: Swivel (4) Position Locking Casters w/ Roller bearings Caster Material: Glass-Filled Nylon
Usable Length (in.): 209-3/4 Style: Knock-Down

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHSN-2-20
FHSN-2-20

Steel Knockdown Fixed Gantry Crane with Glass Filled Nylon Casters 20 Ft. 2000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with four (4) 8" swivel casters with four-position locks (2K units have glass filled nylon casters). Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Powder coat blue provides durable attractive coverage
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 64.5"W x 239.75"L x 130.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215108911 GTIN: 00691215108911
Warranty: -- Shipping Weight: 678 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Overall I-Beam Length (ft.): 20 Overall I-Beam Height (in.): 10-1/8
I-Beam Flange Width (in.): 4 Under I-Beam to Ground (in.): 120-3/8 Base Width (in.): 64-1/2
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: Swivel (4) Position Locking Casters w/ Roller bearings Caster Material: Glass-Filled Nylon
Usable Length (in.): 209-3/4 Style: Knock-Down
