Model Details

FHSN-6-10-TLC

Printer Friendly
FHSN-6-10-TLC

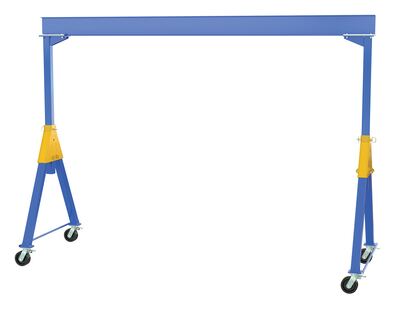

Steel Knockdown Fixed Gantry Crane with Total Locking Phenolic Casters 10 Ft. 6000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 993 (Multiple Packages: P1: 747 lbs + P2: 246 lbs) Size: 64.5"W x 120"L x 129.6875"H Color: Blue

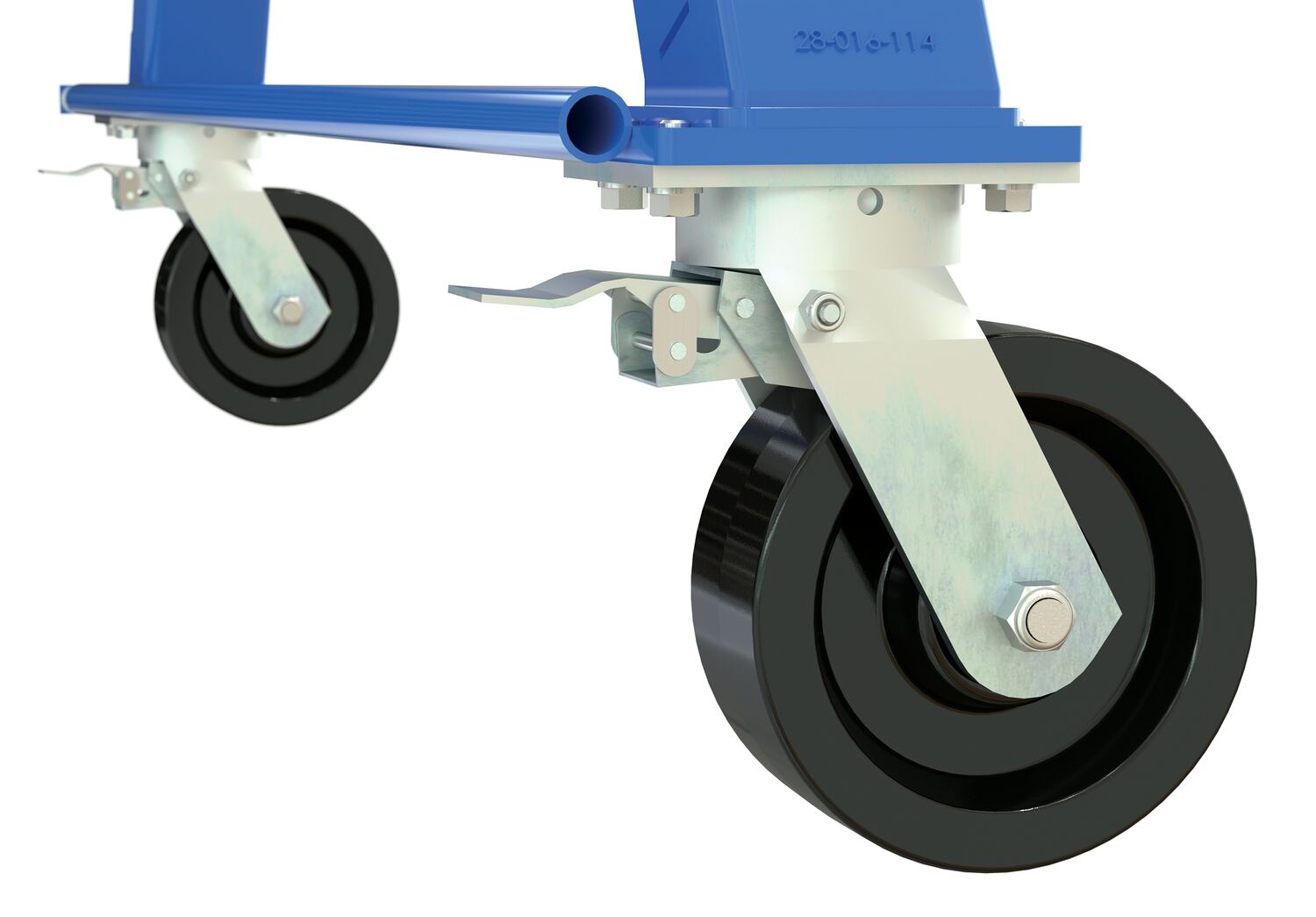

Uniform Capacity (lbs.): 6000 Casters Swivel with Brakes (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Glass Filled Nylon Beam Height (in): 8.125
Beam Length (in): 120 Usable Beam Length (in): 89.75 Flange Width (in): 4
Base Width (in): 64.5 Base Length (in): 109.25 Maximum Overall Height (in): 129.688
Adjustable Height: No Maximum Clearance (in): 121

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHSN-6-10-TLC
FHSN-6-10-TLC

Steel Knockdown Fixed Gantry Crane with Total Locking Phenolic Casters 10 Ft. 6000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 64.5"W x 120"L x 129.6875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215367998 GTIN: 00691215367998
Warranty: -- Shipping Weight: 747 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 6000 Casters Swivel with Brakes (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Glass Filled Nylon Beam Height (in): 8.125
Beam Length (in): 120 Usable Beam Length (in): 89.75 Flange Width (in): 4
Base Width (in): 64.5 Base Length (in): 109.25 Maximum Overall Height (in): 129.688
Adjustable Height: No Maximum Clearance (in): 121
