Model Details

FL-ADJ-810-SS

Printer Friendly
FL-ADJ-810-SS

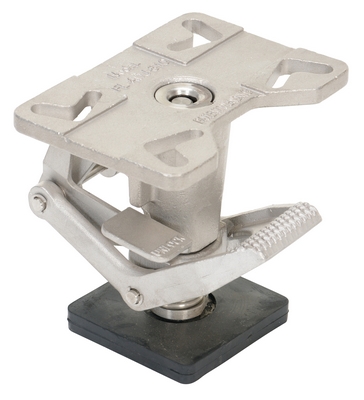

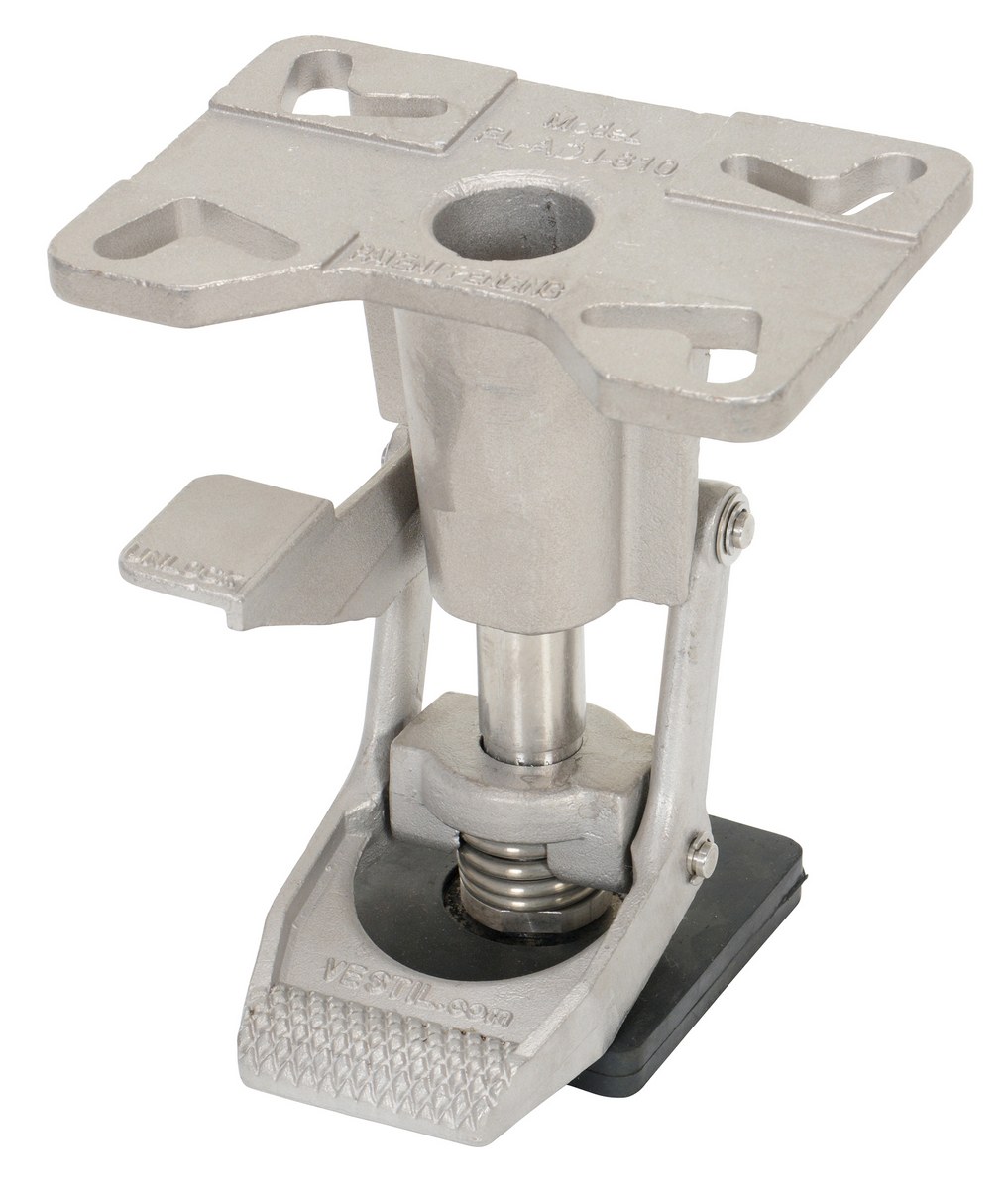

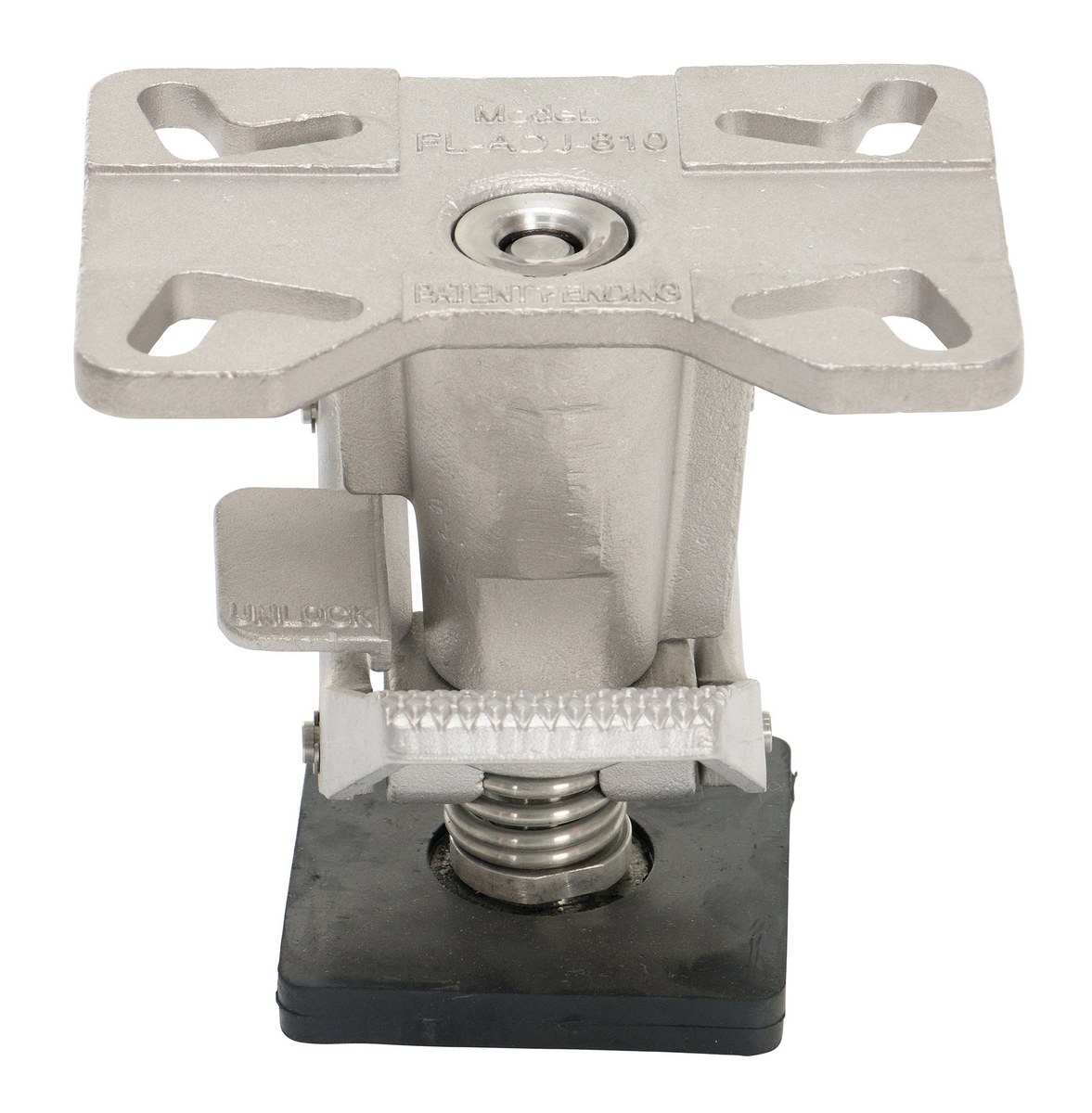

Stainless Steel Adjustable Floor Lock 8-1/4 to 11-1/2 In. Height Silver

This one of a kind adjustable height Floor Lock includes an adjustable height foot pad that will work on carts with different caster heights. The adjustable height feature provides uniform locking and safety unlocking force for better ergonomic operation. This feature also keeps the floor lock working properly as spring and pads wear over time. Height is adjustable by turning the bottom pad. The bottom pad includes suction-cups for extra grip.

  • Uniform locking and safer unlocking force offers better ergonomic operation
  • Heavy-duty cast steel construction offers long lasting use
  • Pedal release has a visible & convenient location
  • Bottom pad includes suction-cups for extra grip
Total Ship Wt.(lbs.): 9 (only 1 package) Size: 6.6875"W x 6.5"L x 11.5"H Color: Silver Non-Returnable

Used with Caster Size (in. - in.): 6 to 8 Extended Height (in. to in.): 8-1/4 to 11-1/2 Retracted Height (in. to in.): 6-1/4 to 9-1/2
Top Plate Width/Length (in.): 4-1/2 x 6-1/2 Mounting Plate Thickness (in.): 3/8 Mounting Bolt Diameter (in.): 3/8, 1/2
Inside Bolt Hole Spacing (in.): 2-3/16 X 3 Outside Bolt Hole Spacing (in.): 3-1/2 X 5-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FL-ADJ-810-SS
FL-ADJ-810-SS

Stainless Steel Adjustable Floor Lock 8-1/4 to 11-1/2 In. Height Silver

This one of a kind adjustable height Floor Lock includes an adjustable height foot pad that will work on carts with different caster heights. The adjustable height feature provides uniform locking and safety unlocking force for better ergonomic operation. This feature also keeps the floor lock working properly as spring and pads wear over time. Height is adjustable by turning the bottom pad. The bottom pad includes suction-cups for extra grip.

  • Uniform locking and safer unlocking force offers better ergonomic operation
  • Heavy-duty cast steel construction offers long lasting use
  • Pedal release has a visible & convenient location
  • Bottom pad includes suction-cups for extra grip
Dimensions: 6.6875"W x 6.5"L x 11.5"H Sell UOM: EA-Each Color: Silver
Material: 304 Stainless Steel UPC: 691215076968 GTIN: 00691215076968
Warranty: -- Shipping Weight: 9 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Used with Caster Size (in. - in.): 6 to 8 Extended Height (in. to in.): 8-1/4 to 11-1/2 Retracted Height (in. to in.): 6-1/4 to 9-1/2
Top Plate Width/Length (in.): 4-1/2 x 6-1/2 Mounting Plate Thickness (in.): 3/8 Mounting Bolt Diameter (in.): 3/8, 1/2
Inside Bolt Hole Spacing (in.): 2-3/16 X 3 Outside Bolt Hole Spacing (in.): 3-1/2 X 5-1/4
