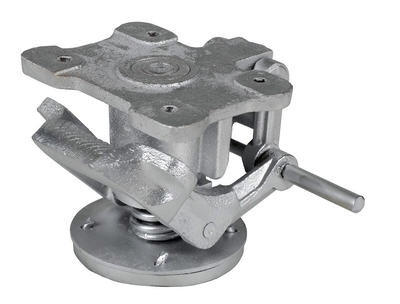

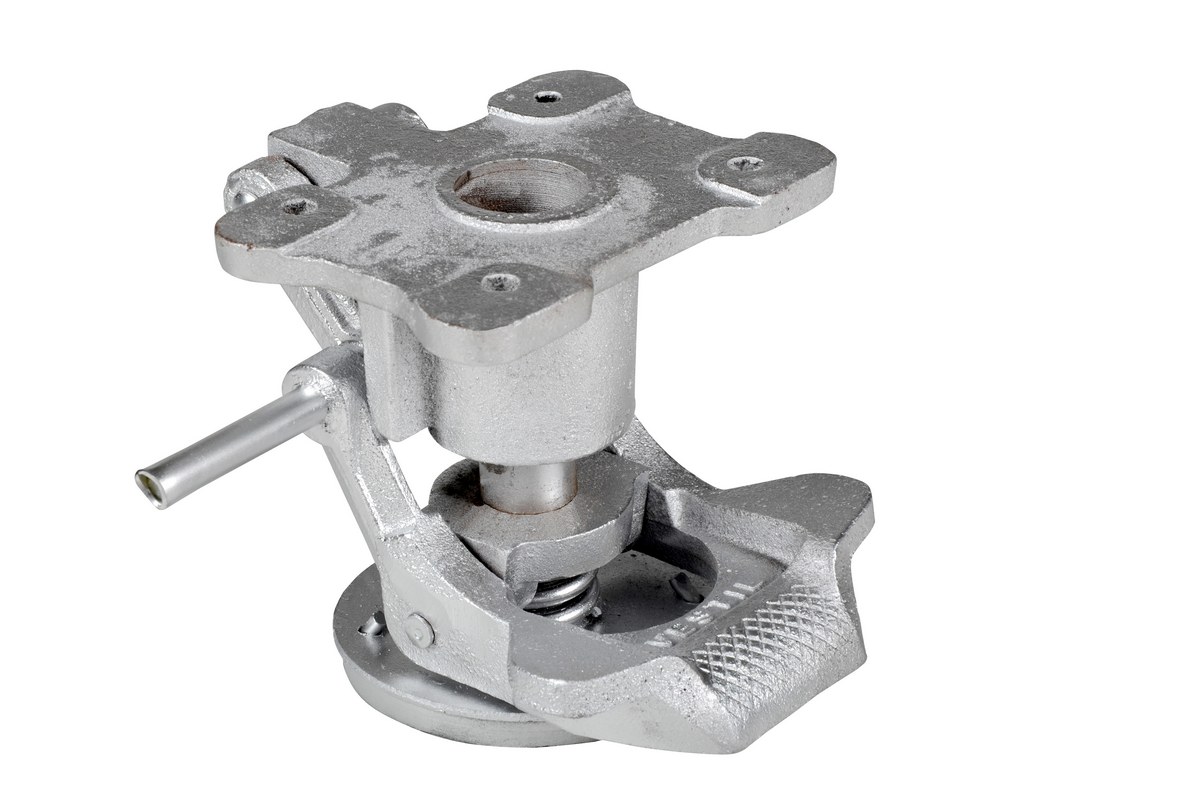

FL-LK-5X

Steel Top Mount Floor Lock 4-1/2 to 5-5/8 In. Height Silver

A general purpose Floor Lock may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.

  • Spring loaded pad accommodates uneven floors
  • Simple foot pressure immobilizes equipment
  • Simple kick rod releases floor lock
  • Independent brake system can be installed to any convenient location on the cart
Total Ship Wt.(lbs.): 9 (only 1 package) Size: 8"W x 5.5"L x 4.625"H Color: Silver

Mounting Height (in.): 5-5/8 Retracted Height (in.): 4-1/2 Used with Caster Size (in.): 5
Pad Mounting Height Retracted (in.): 1-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FL-LK-5X
FL-LK-5X

Steel Top Mount Floor Lock 4-1/2 to 5-5/8 In. Height Silver

A general purpose Floor Lock may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.

  • Spring loaded pad accommodates uneven floors
  • Simple foot pressure immobilizes equipment
  • Simple kick rod releases floor lock
  • Independent brake system can be installed to any convenient location on the cart
Dimensions: 8"W x 5.5"L x 4.625"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215020473 GTIN: 00691215020473
Warranty: -- Shipping Weight: 9 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Mounting Height (in.): 5-5/8 Retracted Height (in.): 4-1/2 Used with Caster Size (in.): 5
Pad Mounting Height Retracted (in.): 1-1/2
