Model Details

FL-LK-S

Printer Friendly
FL-LK-S

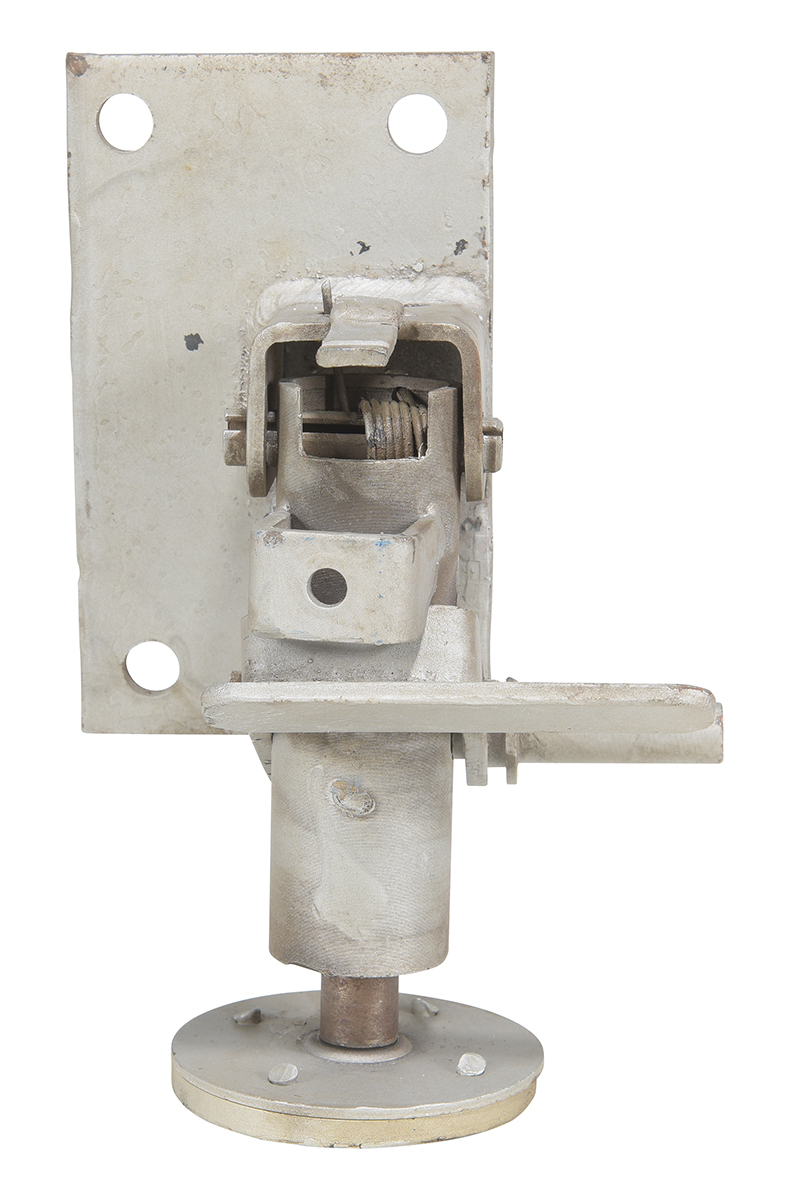

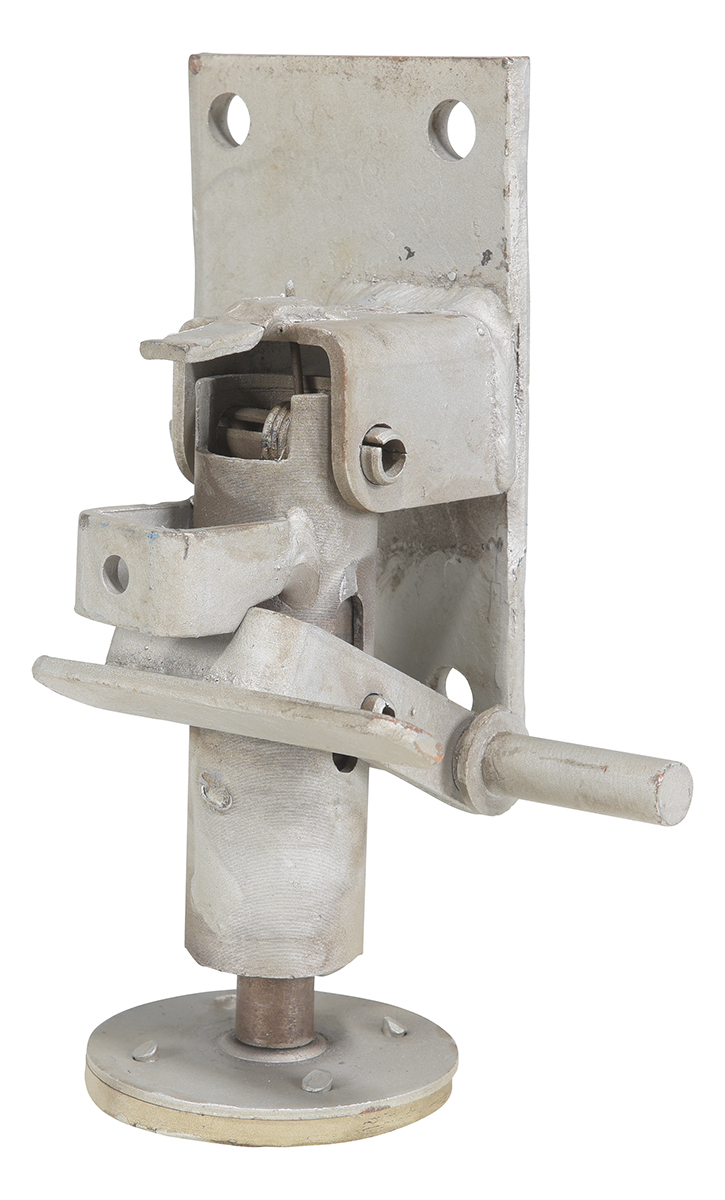

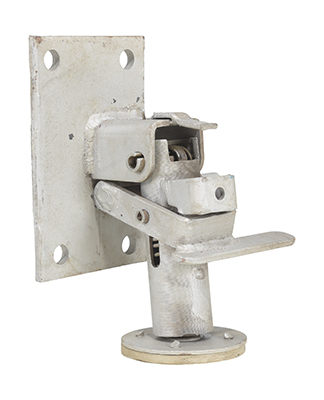

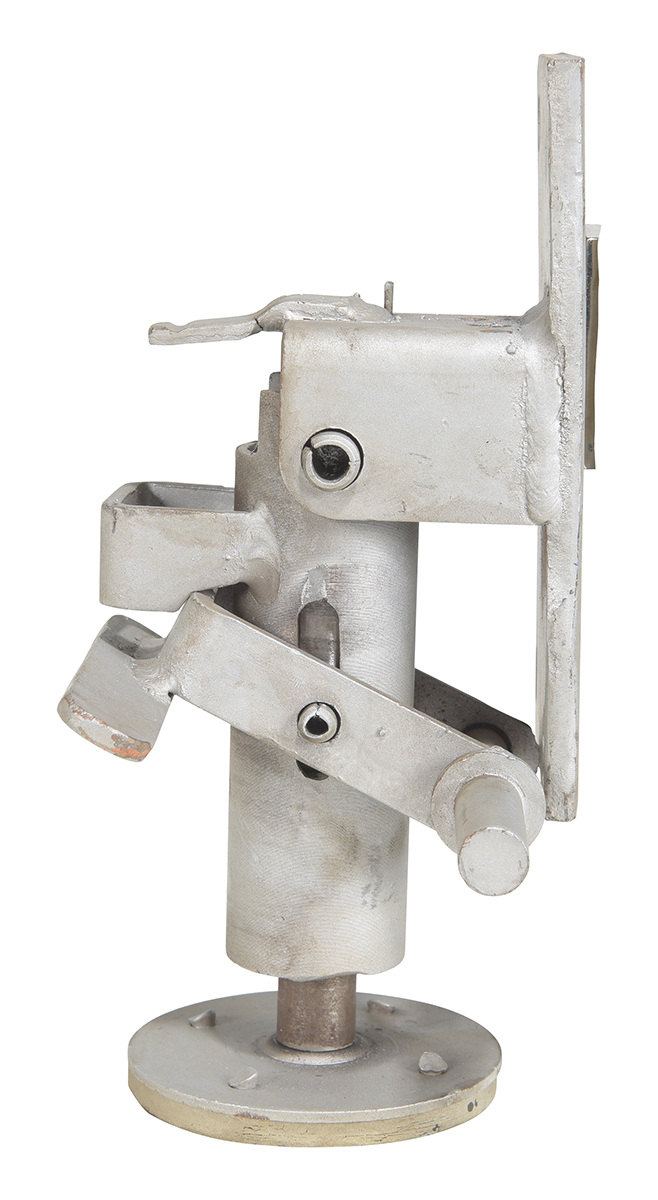

Steel Floor Lock 7 In. to 8-3/16 In. Height Silver

Floor locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release, simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate is designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors.

  • Steel construction for durability
  • Spring loaded pad to adjust for uneven floors
  • Locking device for quick service
  • Lightweight for portability
Total Ship Wt.(lbs.): 6 (only 1 package) Size: 5.9375"W x 4"L x 8.8125"H Color: Silver

Mounting Height (in.): 8-3/16 Retracted Height (in.): 7 Used with Caster Size (in.): 6
Pad Mounting Height (in.): 1-1/2 Mounting Hole (qty.): 4 Mounting Hole Size (in.): 1/2
Inside Bolt Hole Spacing (in.): 2-1/2 x 5 Outside Bolt Hole Spacing (in.): 2-1/2 x 5

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FL-LK-S
FL-LK-S

Steel Floor Lock 7 In. to 8-3/16 In. Height Silver

Floor locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release, simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate is designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors.

  • Steel construction for durability
  • Spring loaded pad to adjust for uneven floors
  • Locking device for quick service
  • Lightweight for portability
Dimensions: 5.9375"W x 4"L x 8.8125"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215020503 GTIN: 00691215020503
Warranty: -- Shipping Weight: 6 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Mounting Height (in.): 8-3/16 Retracted Height (in.): 7 Used with Caster Size (in.): 6
Pad Mounting Height (in.): 1-1/2 Mounting Hole (qty.): 4 Mounting Hole Size (in.): 1/2
Inside Bolt Hole Spacing (in.): 2-1/2 x 5 Outside Bolt Hole Spacing (in.): 2-1/2 x 5
