Model Details
A general purpose Floor Lock may be used on platform trucks, fixture dollies, or equipment with casters. Lock is functioning when large friction face is pressed against the floor. To release, simply release the rod by hand. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.
Mounting Height (in.): 10 to 13-7/8 | Retracted Height on Bottom Mounting Hole (in.): 10 | Used with Caster width (in.): 2 of Travel |
Extended Height on Bottom Mounting Hole (in.): 12 | Overall Unit Retracted Height (in.): 15-15/32 | Overall Unit Extended Height (in.): 18 |
Pad Mounting Height (in.): 1-1/2 | Plate Width (in.): 4-1/2 | Plate Height (in.): 6-1/2 |
Mounting Bolt Diameter (in.): 3/8 | Mounting Plate Thickness (in.): 1/8 | Slotted Mounting Hole Width/Height (in.): 13/32 x 13/16 |
Inside Bolt Hole Spacing (in.): 2-29/32 X 3-1/4 | Outside Bolt Hole Spacing (in.): 2-29/32 X 4-3/4 |
Quickship Item?
Quickship ItemCan It Ship UPS/FedEx?
Parcel - Can Go UPS
Details For Model: FL-LK-SMR-SS-R |
|||||||||||||||||||||||||||||||

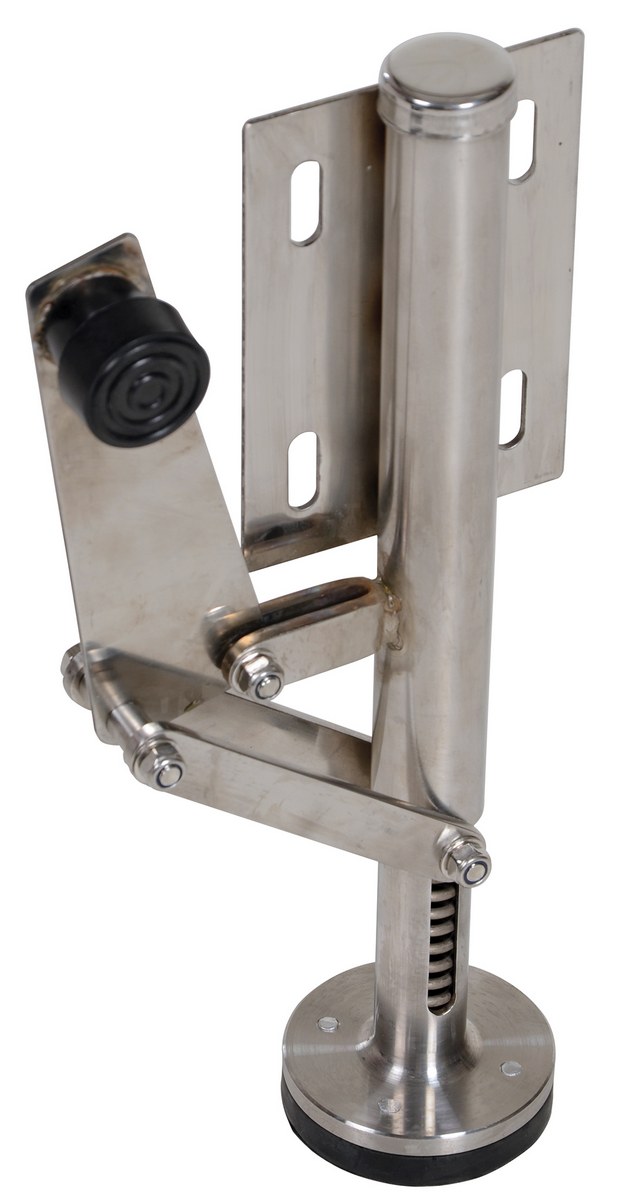

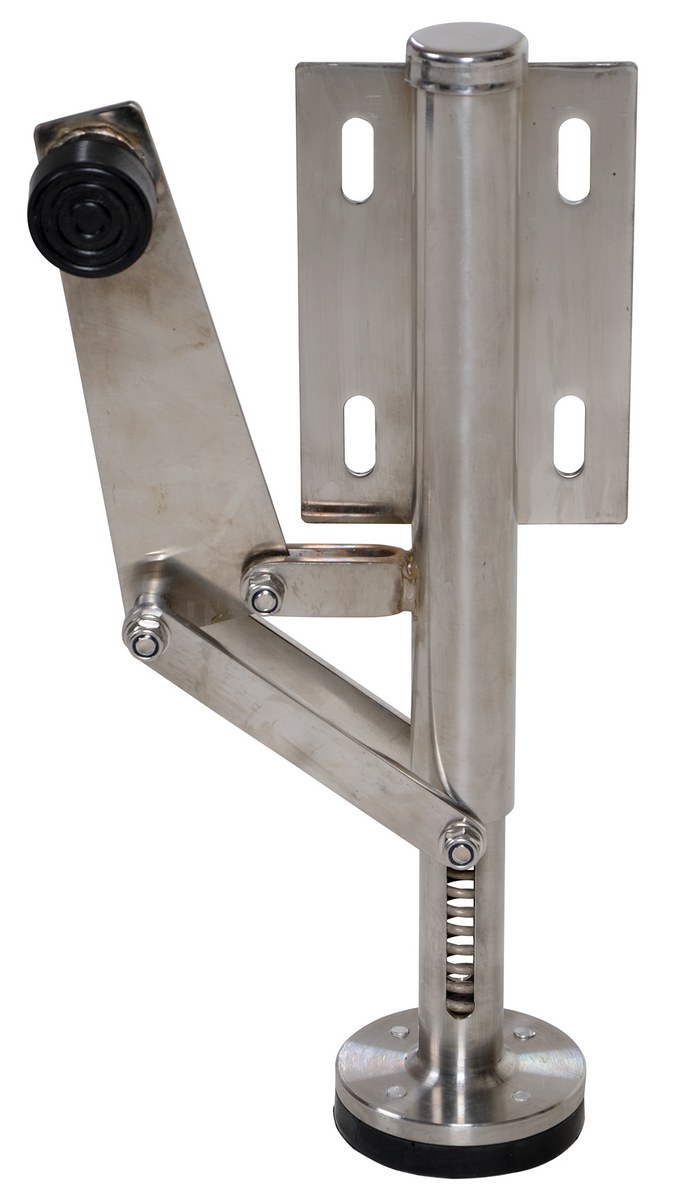

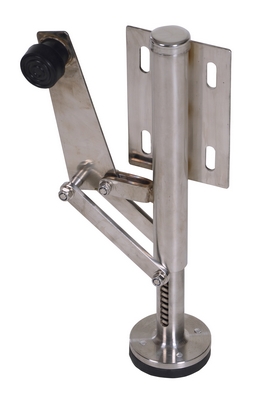

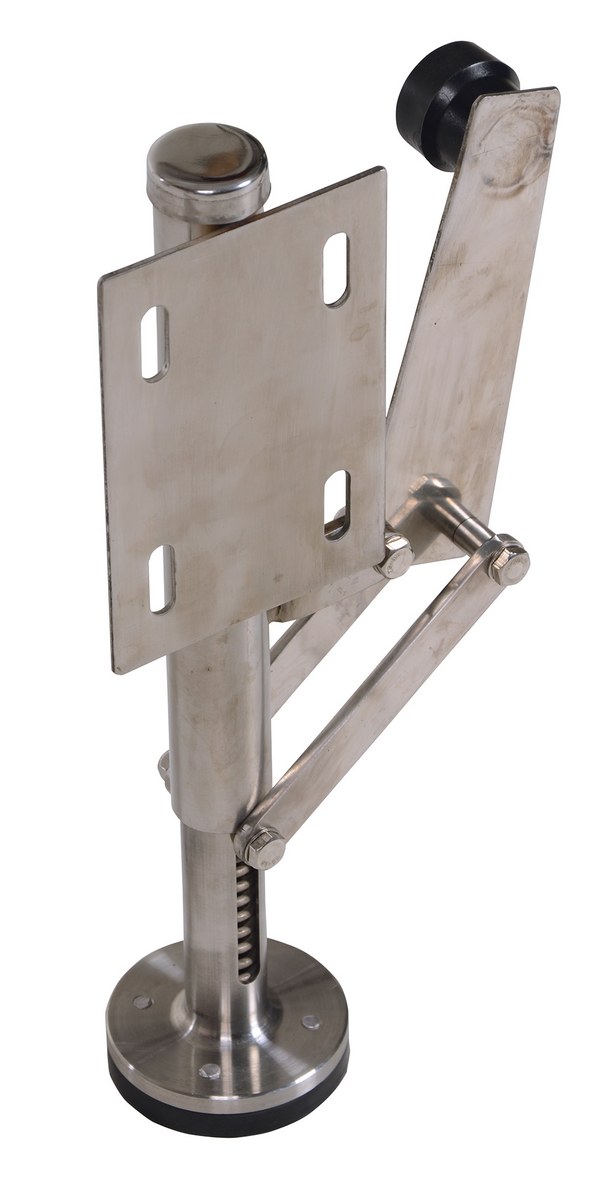

Stainless Steel Right Mount Floor Lock 10 to 12 In. Height SilverA general purpose Floor Lock may be used on platform trucks, fixture dollies, or equipment with casters. Lock is functioning when large friction face is pressed against the floor. To release, simply release the rod by hand. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.
|
|||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
