FL-LKL-3

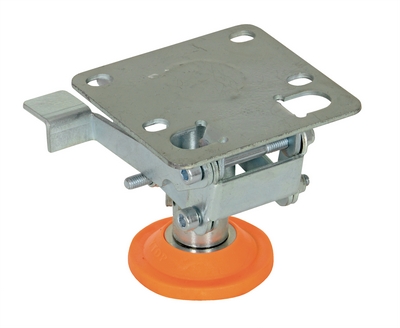

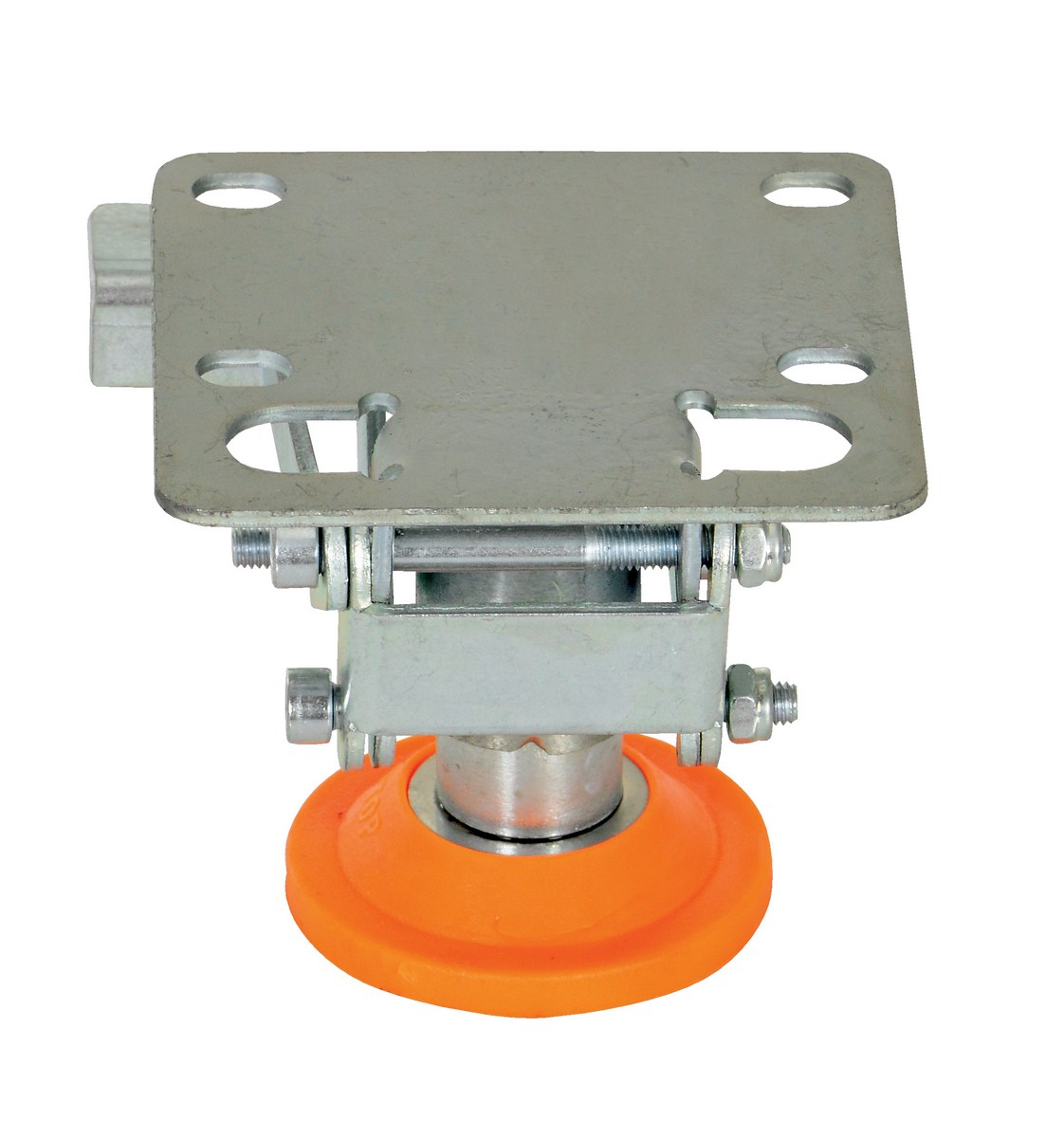

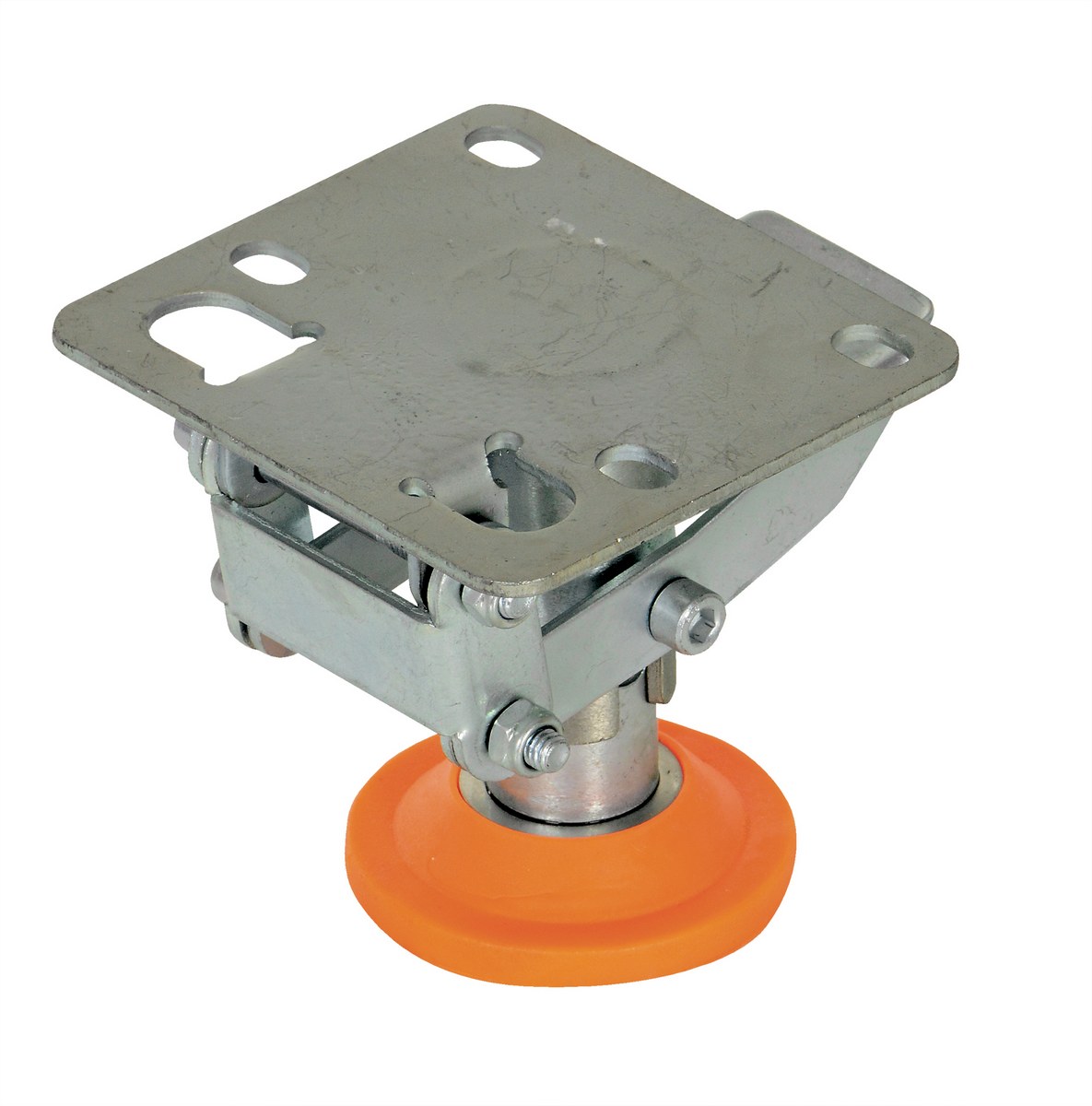

Steel Floor Lock 3-7/16 to 4-1/4 In. Height Silver

Floor locks are ideal for maintenance and construction facilities. The unit is designed to created a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.

  • Steel construction for durability
  • Thermoplastic polyurethane base for stability
  • Locking device for quick service
  • Lightweight for portability
Total Ship Wt.(lbs.): 2 (only 1 package) Size: 4.0625"W x 4.5"L x 3.4375"H Color: Silver

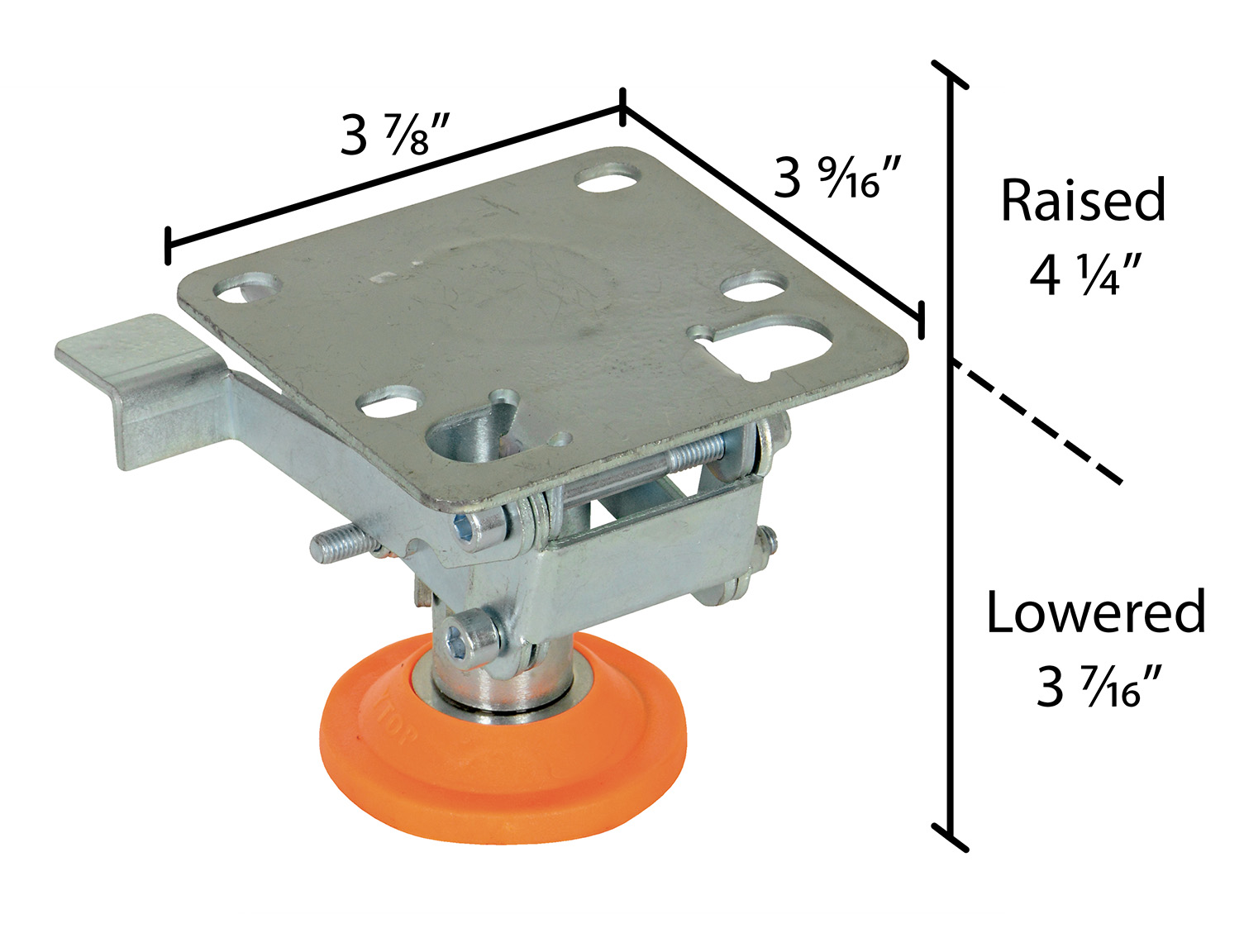

Lowered Height (in.): 3-7/16 Raised Height (in.): 4-1/4 Foot Pad Diameter (in.): 2-9/16
Foot Pad Material: Thermoplastic polyurethane (TPU) Mounting Plate (in.): 3-7/8 x 3-9/16 Slotted Holes on Center (in.): 1-3/4 x 3-1/16
Mounting Plate Thickness (in.): 5/16 Slotted Mounting Hole Width/Height (in.): 3/8 x 1/2 Inside Bolt Hole Spacing (in.): 2-13/16 X 1-3/4
Outside Bolt Hole Spacing (in.): 3-1/16 X 1-3/4 Suggested Caster Size (in.): 3

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FL-LKL-3
FL-LKL-3

Steel Floor Lock 3-7/16 to 4-1/4 In. Height Silver

Floor locks are ideal for maintenance and construction facilities. The unit is designed to created a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.

  • Steel construction for durability
  • Thermoplastic polyurethane base for stability
  • Locking device for quick service
  • Lightweight for portability
Dimensions: 4.0625"W x 4.5"L x 3.4375"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215114349 GTIN: 00691215114349
Warranty: -- Shipping Weight: 2 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Lowered Height (in.): 3-7/16 Raised Height (in.): 4-1/4 Foot Pad Diameter (in.): 2-9/16
Foot Pad Material: Thermoplastic polyurethane (TPU) Mounting Plate (in.): 3-7/8 x 3-9/16 Slotted Holes on Center (in.): 1-3/4 x 3-1/16
Mounting Plate Thickness (in.): 5/16 Slotted Mounting Hole Width/Height (in.): 3/8 x 1/2 Inside Bolt Hole Spacing (in.): 2-13/16 X 1-3/4
Outside Bolt Hole Spacing (in.): 3-1/16 X 1-3/4 Suggested Caster Size (in.): 3
