Model Details

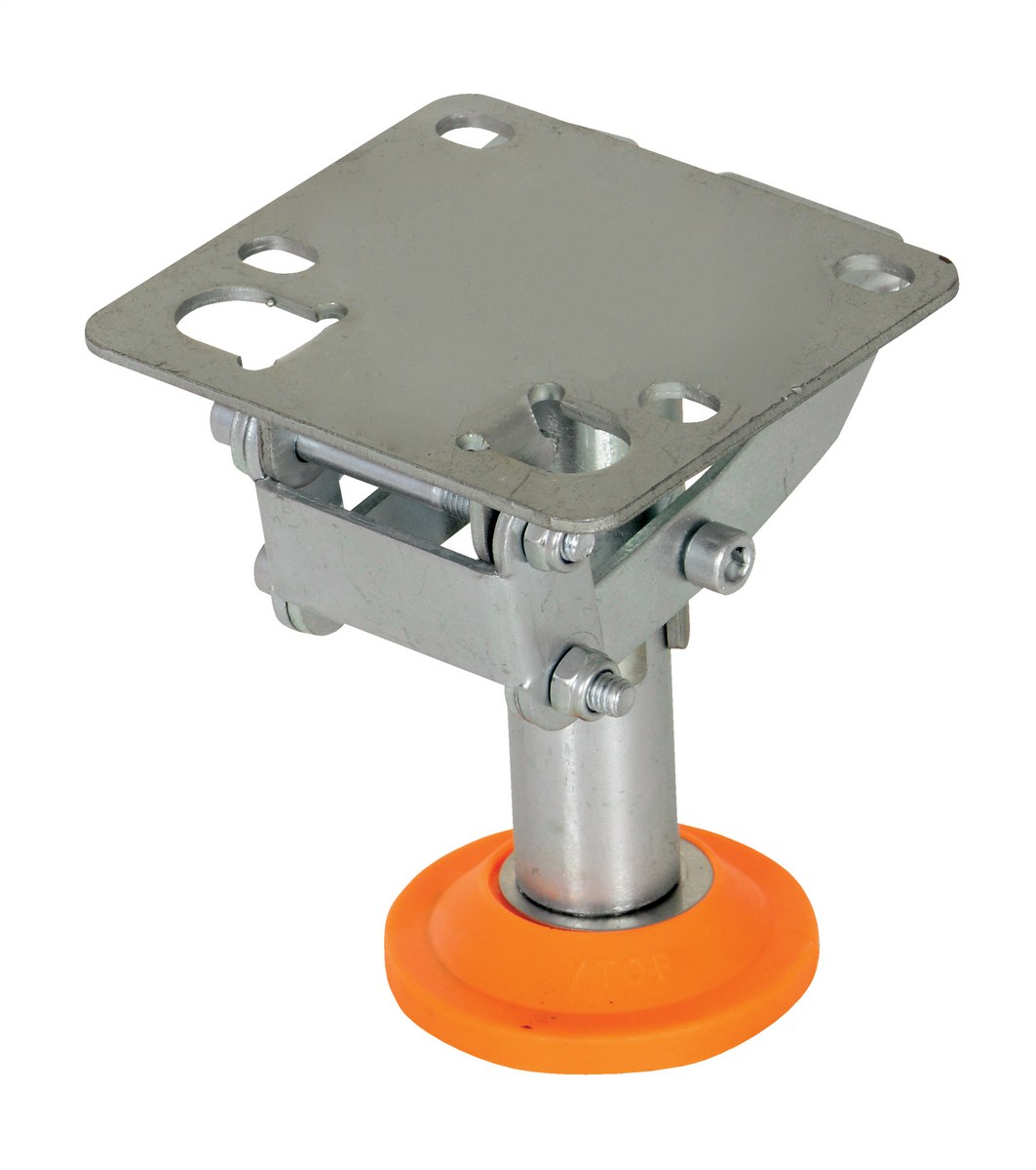

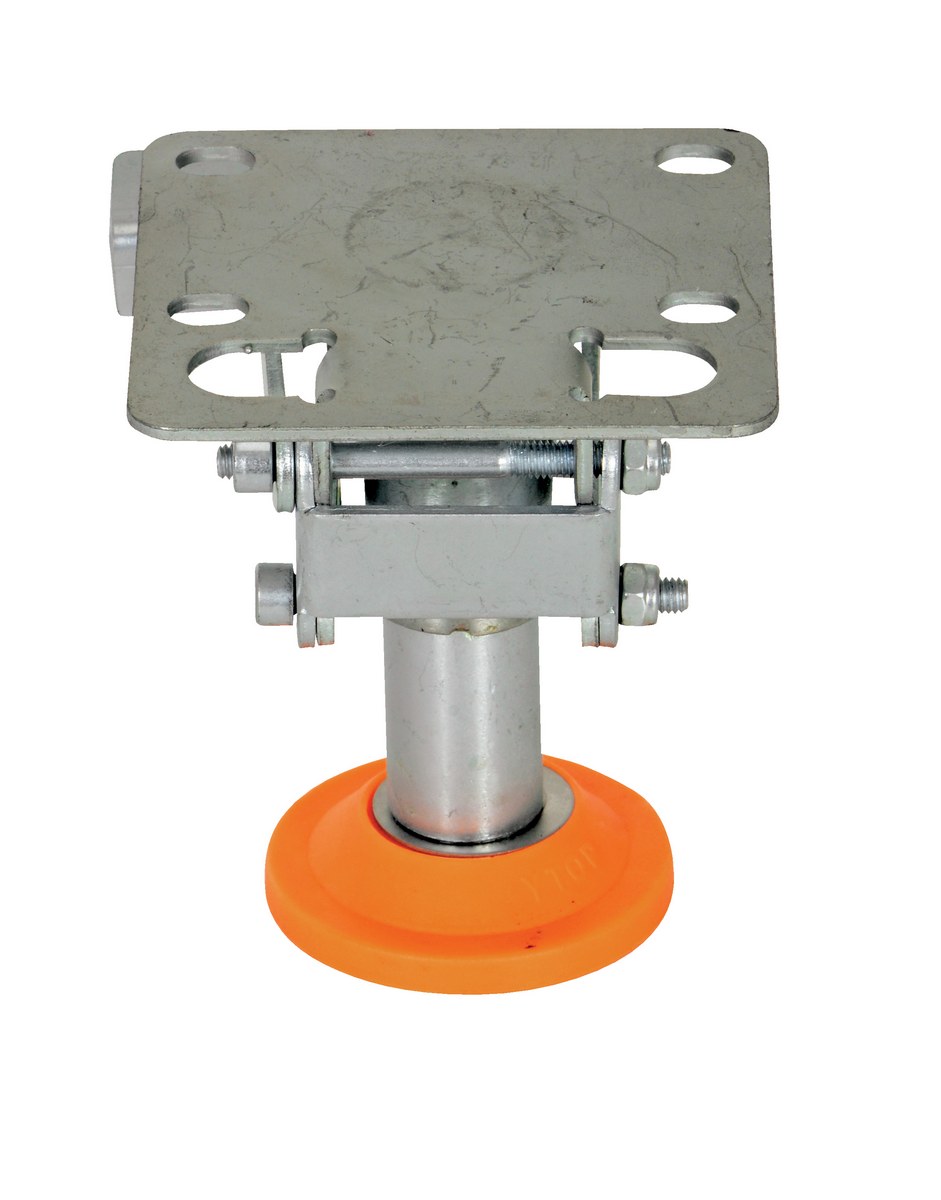

Floor locks are ideal for maintenance and construction facilities. The unit is designed to created a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.

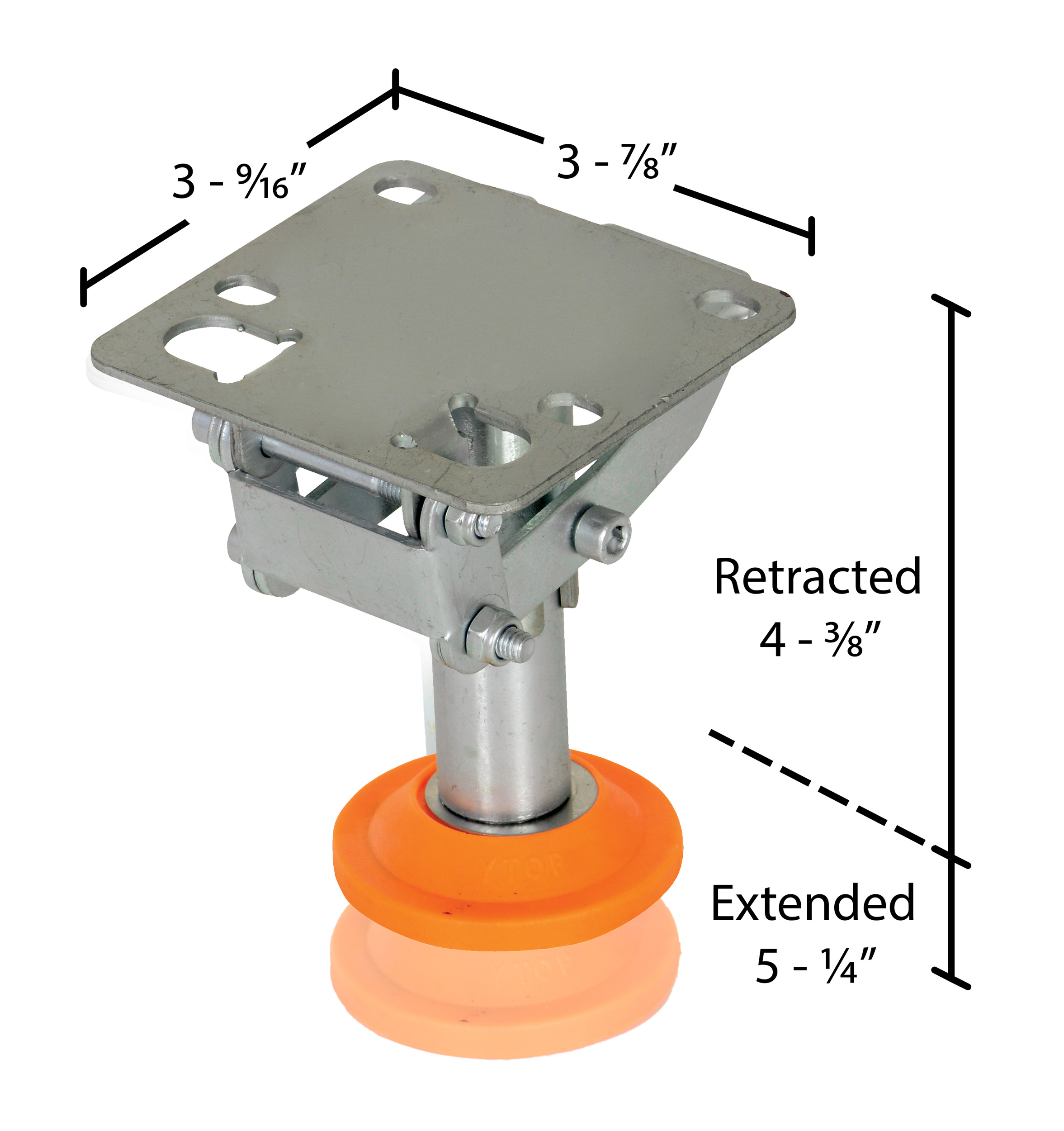

Lowered Height (in.): 4-3/8 | Raised Height (in.): 5-1/4 | Foot Pad Diameter (in.): 2-9/16 |
Foot Pad Material: Thermoplastic polyurethane (TPU) | Mounting Plate (in.): 3-7/8 x 3-9/16 | Slotted Holes on Center (in.): 1-3/4 x 3-1/16 |
Mounting Plate Thickness (in.): 5/16 | Slotted Mounting Hole Width/Height (in.): 3/8 x 1/2 | Inside Bolt Hole Spacing (in.): 2-13/16 X 1-3/4 |
Outside Bolt Hole Spacing (in.): 3-1/16 X 1-3/4 | Suggested Caster Size (in.): 4 |
Quickship Item?
Quickship ItemCan It Ship UPS/FedEx?
Parcel - Can Go UPS

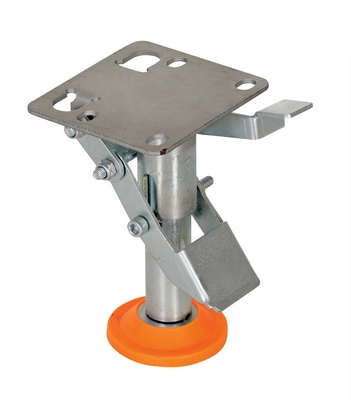

Details For Model: FL-LKL-4 |
||||||||||||||||||||||||||||
Steel Floor Lock 4-3/8 to 5-1/4 In. Height SilverFloor locks are ideal for maintenance and construction facilities. The unit is designed to created a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
