Model Details

FPG-A-20-12

Not Yet Available, Coming Soon, Contact Vestil for Specifics

FPG-A-20-12

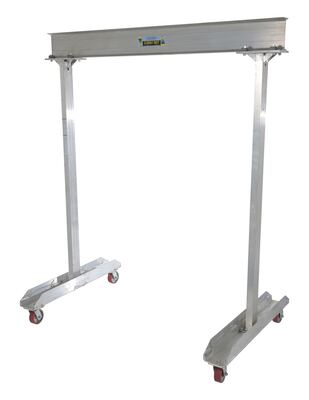

Aluminum Portable Work Area Gantry Crane 47-3/4"L x 144"W x 91-13/16"H 2,000 Lb. Capacity Silver

Built to dependably make the workplace a safer environment, this gantry crane minimizes the manual handling needed for large, oversized material. The unchangeable height and width dimensions of the unit, provides a level of consistency needed when contending with heavy objects. With a portable design, the crane can simply be wheeled to a new location without the need for the unit to be deconstructed. This crane is not to be moved when loaded.

  • Non-adjustable, fixed height design
  • Rust resistant aluminum construction
  • 5" poly on steel casters
  • To be used on flat surfaces only
Total Ship Wt.(lbs.): 234 (only 1 package) Size: 144"W x 47.75"L x 91.8125"H Color: Silver

Uniform Capacity (lb.): 2,000 Under I-Beam to Ground Length (in.): 85-13/16 Between Upright Width (in.): 160-1/8
Caster Quantity/Diameter/Width (in.): (4) 5x2 Caster Material: Poly-on-Steel
Caster Type: Swivel with Brake

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FPG-A-20-12


FPG-A-20-12

Aluminum Portable Work Area Gantry Crane 47-3/4"L x 144"W x 91-13/16"H 2,000 Lb. Capacity Silver

Built to dependably make the workplace a safer environment, this gantry crane minimizes the manual handling needed for large, oversized material. The unchangeable height and width dimensions of the unit, provides a level of consistency needed when contending with heavy objects. With a portable design, the crane can simply be wheeled to a new location without the need for the unit to be deconstructed. This crane is not to be moved when loaded.

  • Non-adjustable, fixed height design
  • Rust resistant aluminum construction
  • 5" poly on steel casters
  • To be used on flat surfaces only
Dimensions: 144"W x 47.75"L x 91.8125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215376754 GTIN: 00691215376754
Warranty: -- Shipping Weight: 234 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Under I-Beam to Ground Length (in.): 85-13/16 Between Upright Width (in.): 160-1/8
Caster Quantity/Diameter/Width (in.): (4) 5x2 Caster Material: Poly-on-Steel
Caster Type: Swivel with Brake
