Model Details

H-2000-1-520P

H-2000-1-520P

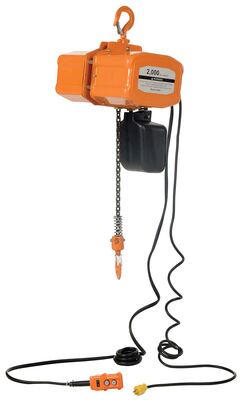

Steel Economy Chain Hoist 1 Phase NEMA 5-20P With Chain Container 2,000 Lb. Capacity Orange

This compact economy Chain Hoist features a high efficiency motor and single phase power. The hoist is load limit fitted and features a 4:1 safety factor. With a simple hook style mount, the hoist can be placed in a variety of settings and utilized where headroom is limited.

  • Push button hand control
  • Dust and water resistant
  • NEMA 5-20P plug
  • Chain container included
Total Ship Wt.(lbs.): 194 (only 1 package) Size: 20.125"W x 11.4375"L x 15.375"H Color: Orange

Uniform Capacity (lb.): 2,000 Chain Lift Length (ft.): 15 Head Room (in.): 22-13/16
Feet Per Minute: 17 Horsepower: 1.6 Power: Phase 1
Voltage: 110/220 Push button (volts): 24 Hand Control Cord (ft.): 15
Mount Style: Hook Hook Opening (in.): 1-1/4 Chain Diameter (mm.): 7.1
Thermal Overload Protection: 40C (104F) power Cord Length (ft.): 8 Plug Type: Male Nema 5-20P

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: H-2000-1-520P


H-2000-1-520P

Steel Economy Chain Hoist 1 Phase NEMA 5-20P With Chain Container 2,000 Lb. Capacity Orange

This compact economy Chain Hoist features a high efficiency motor and single phase power. The hoist is load limit fitted and features a 4:1 safety factor. With a simple hook style mount, the hoist can be placed in a variety of settings and utilized where headroom is limited.

  • Push button hand control
  • Dust and water resistant
  • NEMA 5-20P plug
  • Chain container included
Dimensions: 20.125"W x 11.4375"L x 15.375"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215376679 GTIN: 00691215376679
Warranty: -- Shipping Weight: 194 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Chain Lift Length (ft.): 15 Head Room (in.): 22-13/16
Feet Per Minute: 17 Horsepower: 1.6 Power: Phase 1
Voltage: 110/220 Push button (volts): 24 Hand Control Cord (ft.): 15
Mount Style: Hook Hook Opening (in.): 1-1/4 Chain Diameter (mm.): 7.1
Thermal Overload Protection: 40C (104F) power Cord Length (ft.): 8 Plug Type: Male Nema 5-20P
