Model Details

HBD-2-48

Printer Friendly
HBD-2-48

Steel Electric Hydraulic Box Dumper 48 In. Dump Height 2,000 Lb. Capacity Blue

The electric/Hydraulic box dumper is designed for controlled dumping of material from boxes, crates, and other types of containers. It is designed for pallet truck loading and unloading. The retaining bar adjusts to accommodate a wide range of container heights. Each dump height has a hold down range and an internal power unit with a hand held control standard. It has a heavy-duty welded steel construction with protective mesh side screens included.

  • Universal design will dump contents of many types and sizes of containers
  • 135 Degrees maximum rotation travel may be stopped at any point during the dump cycle
  • Complete electric/hydraulic power unit to rotate chute at the push of a button
  • Safety mesh screens included on each side of unit for added safety
Total Ship Wt.(lbs.): 1948 (only 1 package) Size: 69"W x 68.5"L x 65"H Color: Blue / Yellow Non-Returnable

Uniform Capacity (lb.): 2000 Dump Height (in.): 48 Rotated Height (in.): 129-1/2
Lowered Height (in.): 3/8 Usable Chute Width/Length (in.): 52 x 50 Chute Reach at Full Rotation (in.): 10
Hold Downs (in.): 18 to 42 Maximum Rotation Travel (degree): 135 Dump Angle (degree): 45
Motor Horsepower: 2 Voltage: 460/3 Phase Maximum Duty Cycle Starts Per Hour: 15
Hand Held Control (volts): 24 Hand Held Control Length (ft.): 8 Standard Output: AC
Cord Length (ft.): 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

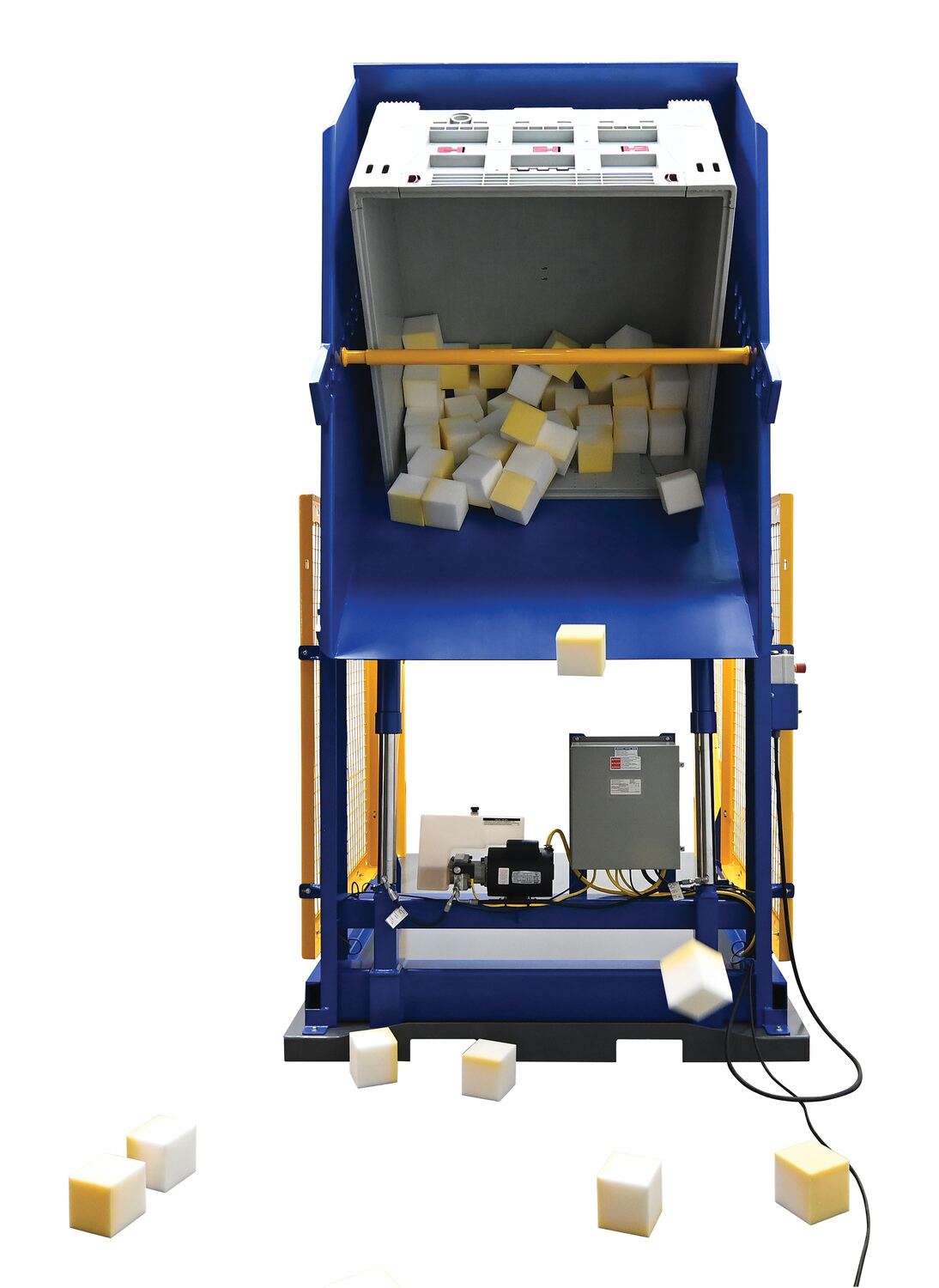

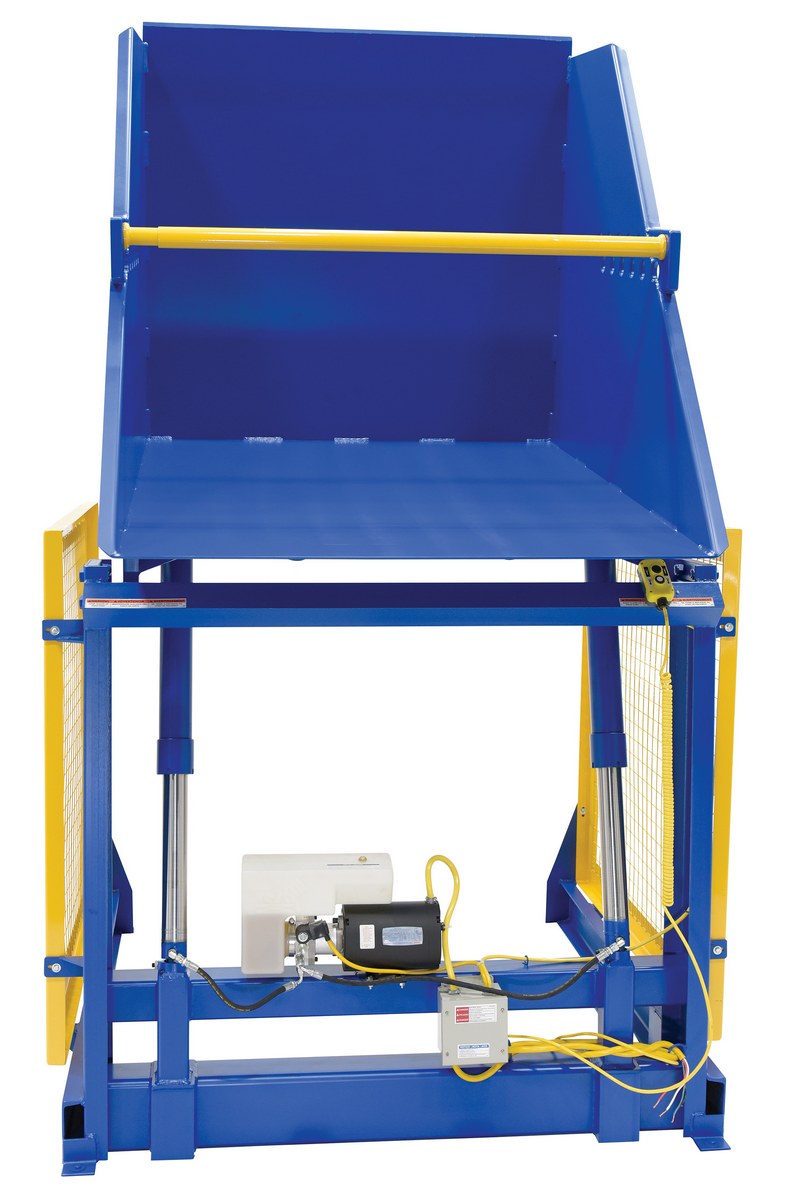

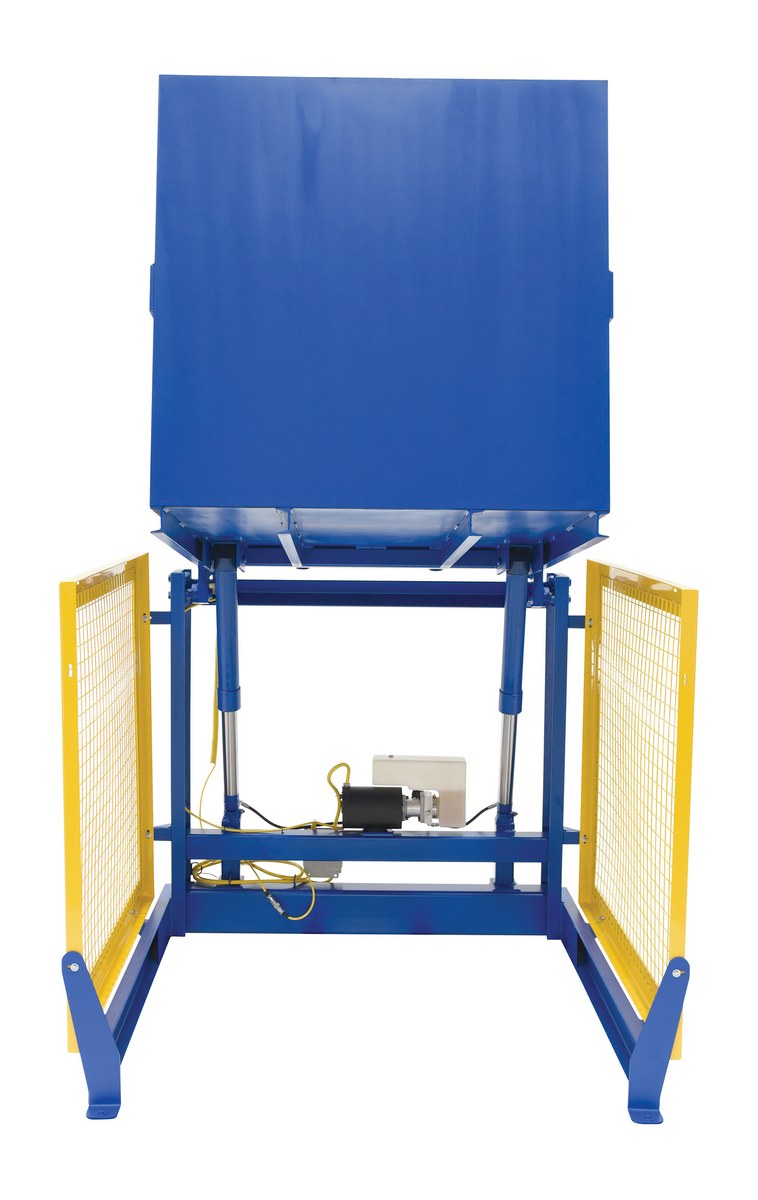

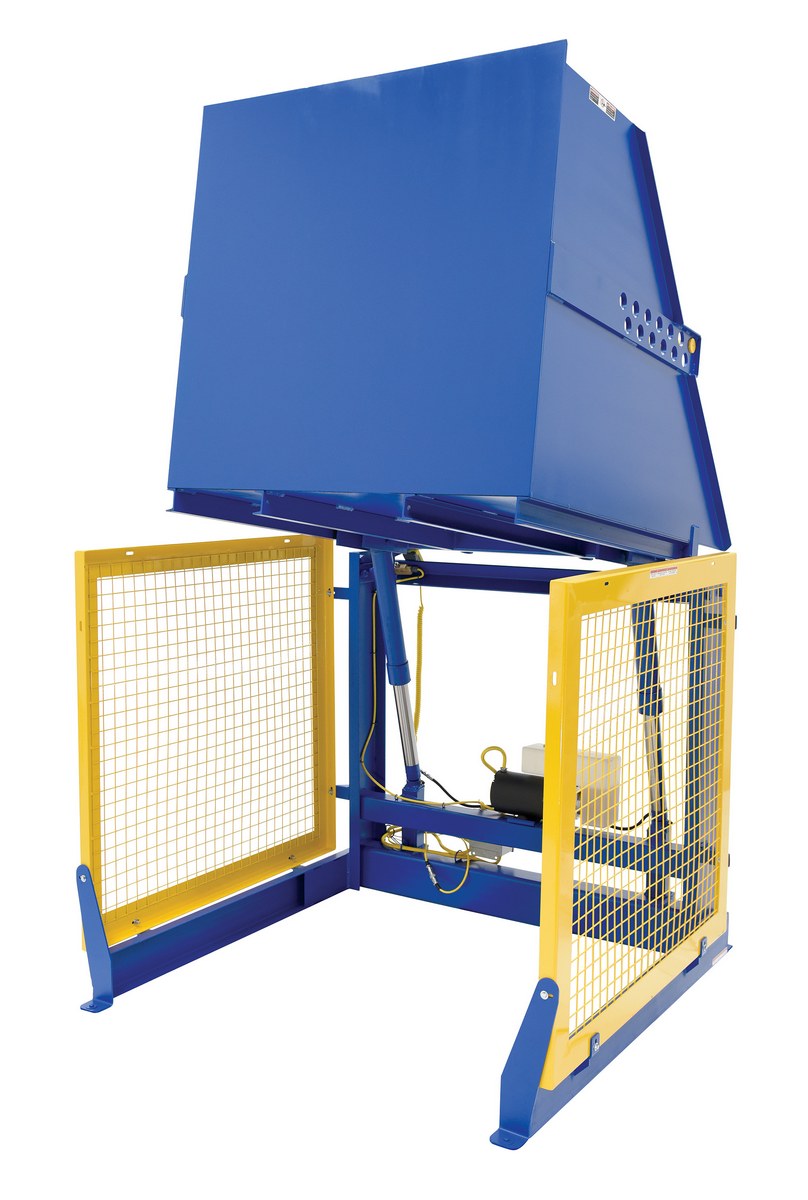

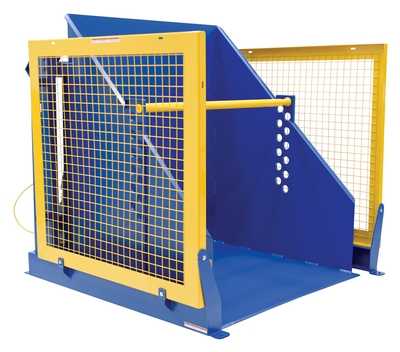

Image Gallery

PDF Documents

Details For Model: HBD-2-48
HBD-2-48

Steel Electric Hydraulic Box Dumper 48 In. Dump Height 2,000 Lb. Capacity Blue

The electric/Hydraulic box dumper is designed for controlled dumping of material from boxes, crates, and other types of containers. It is designed for pallet truck loading and unloading. The retaining bar adjusts to accommodate a wide range of container heights. Each dump height has a hold down range and an internal power unit with a hand held control standard. It has a heavy-duty welded steel construction with protective mesh side screens included.

  • Universal design will dump contents of many types and sizes of containers
  • 135 Degrees maximum rotation travel may be stopped at any point during the dump cycle
  • Complete electric/hydraulic power unit to rotate chute at the push of a button
  • Safety mesh screens included on each side of unit for added safety
Dimensions: 69"W x 68.5"L x 65"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Steel UPC: 691215021777 GTIN: 00691215021777
Warranty: -- Shipping Weight: 1948 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2000 Dump Height (in.): 48 Rotated Height (in.): 129-1/2
Lowered Height (in.): 3/8 Usable Chute Width/Length (in.): 52 x 50 Chute Reach at Full Rotation (in.): 10
Hold Downs (in.): 18 to 42 Maximum Rotation Travel (degree): 135 Dump Angle (degree): 45
Motor Horsepower: 2 Voltage: 460/3 Phase Maximum Duty Cycle Starts Per Hour: 15
Hand Held Control (volts): 24 Hand Held Control Length (ft.): 8 Standard Output: AC
Cord Length (ft.): 2
