HCH-2-20

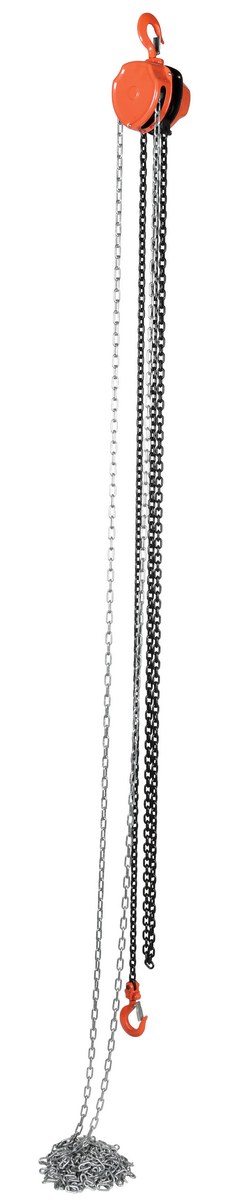

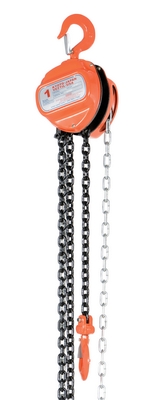

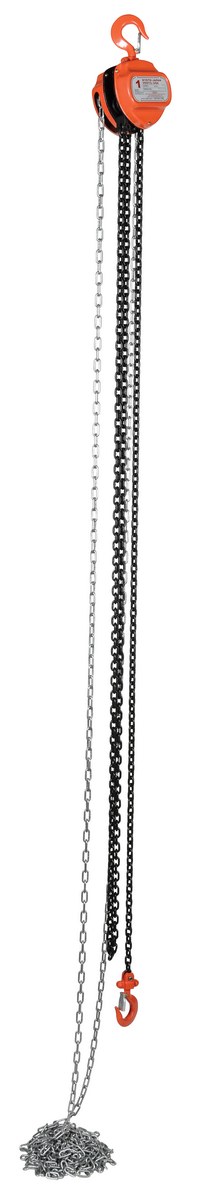

Steel Manual Chain Hoist 20 Ft. Lift 2,000 Lb. Capacity Orange

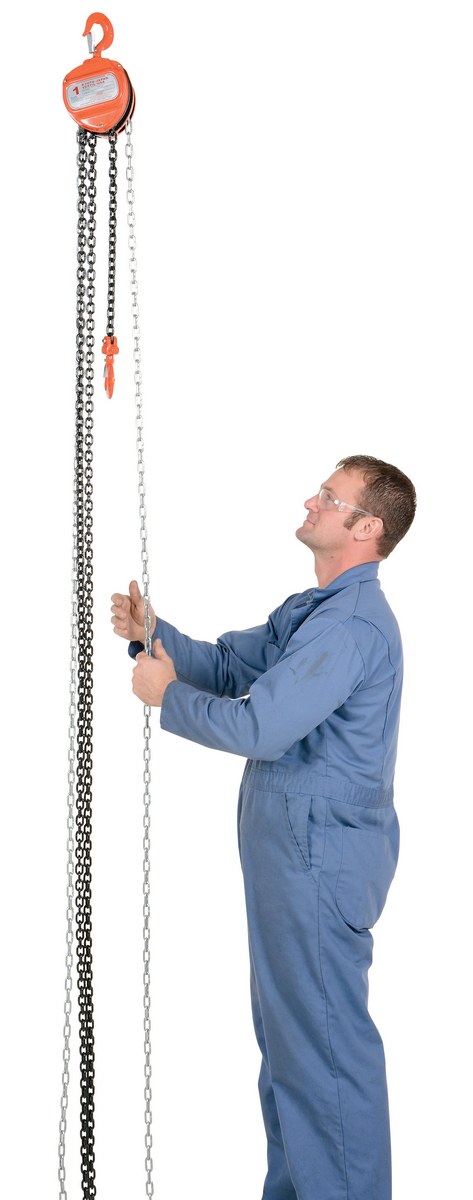

This portable, lightweight hand Chain Hoist is durable and easy to operate. Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory four (4) times rated capacity. Individually tested at 150% rated capacity. Features black chain tempered to ISO 3077, pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications.

  • Heavy-duty stamped steel housing provides sturdy coverage
  • Grade 80 load chain is hardened for safety and durability
  • Tested to 150% of the rated capacity
  • Meets ASME/ANSI B30.16 requirements

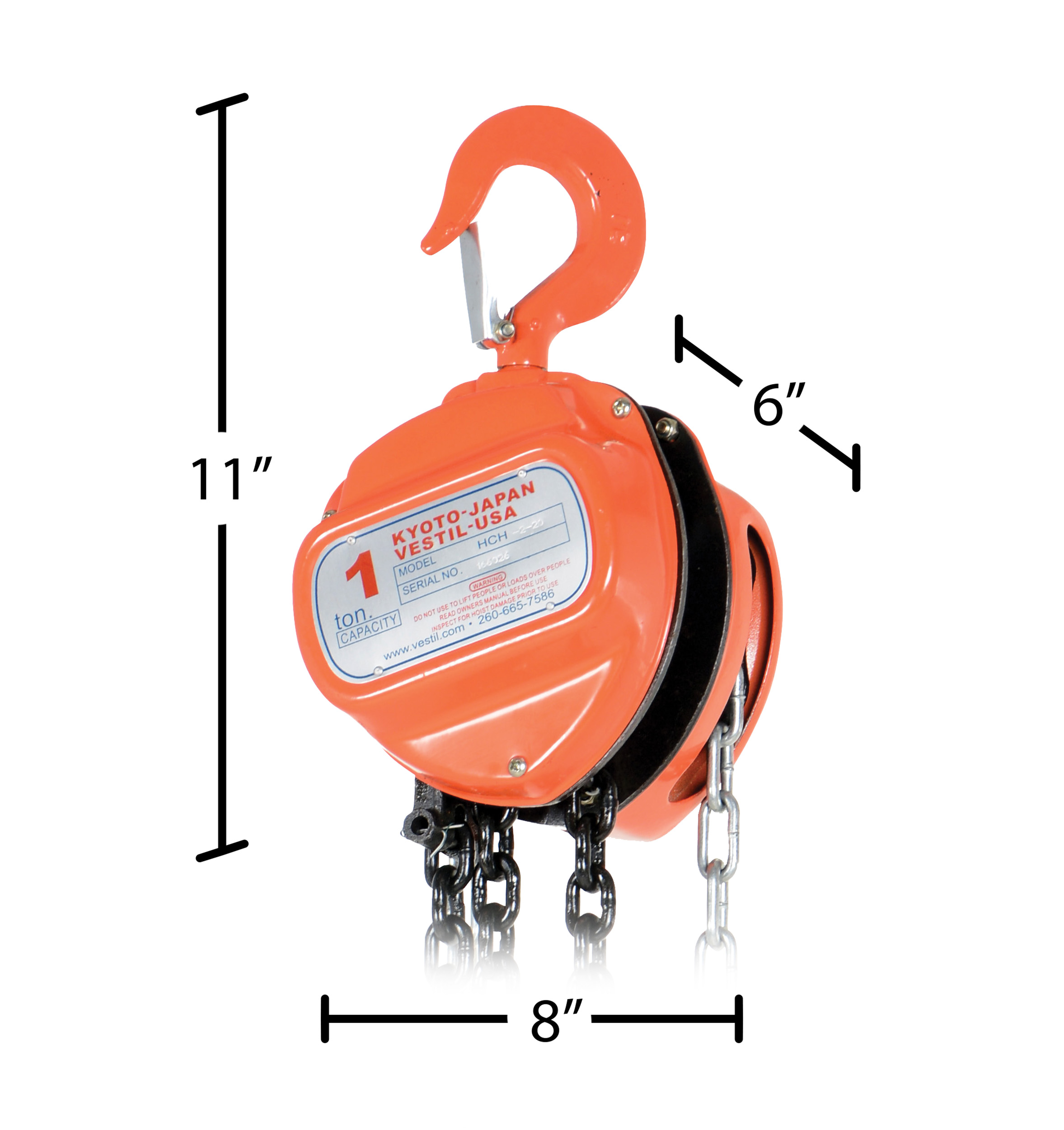

Total Ship Wt.(lbs.): 37 (only 1 package) Size: 8"W x 11"L x 6"H Color: Orange

Uniform Capacity (lb.): 2,000 Standard Lift (ft.): 20 Headroom (in.): 12
Black Chain Grade: 80 Pull Resistance (lb.): 68

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: HCH-2-20
HCH-2-20

Steel Manual Chain Hoist 20 Ft. Lift 2,000 Lb. Capacity Orange

This portable, lightweight hand Chain Hoist is durable and easy to operate. Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory four (4) times rated capacity. Individually tested at 150% rated capacity. Features black chain tempered to ISO 3077, pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications.

  • Heavy-duty stamped steel housing provides sturdy coverage
  • Grade 80 load chain is hardened for safety and durability
  • Tested to 150% of the rated capacity
  • Meets ASME/ANSI B30.16 requirements
Dimensions: 8"W x 11"L x 6"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215022002 GTIN: 00691215022002
Warranty: -- Shipping Weight: 37 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Standard Lift (ft.): 20 Headroom (in.): 12
Black Chain Grade: 80 Pull Resistance (lb.): 68
