HDD-36-15-S-SSC

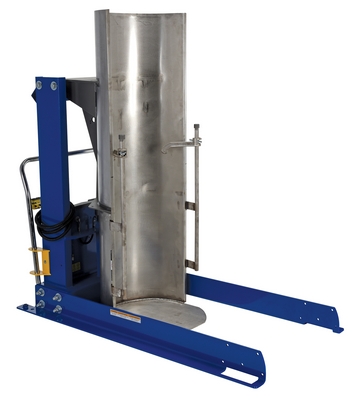

Stainless Steel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue/Silver

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute. This portable unit has casters with floor lock screws. All steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.

  • Internal pre-wired heavy-duty electric motor conveniently dumps drums
  • Adjustable drum restraints work with all types of 30 and 55 gallon drums
  • Drum rotation design may be stopped at any point
  • Solid steel construction offers long lasting reliable use
Total Ship Wt.(lbs.): 966 (only 1 package) Size: 36"W x 61.5"L x 60"H Color: Blue (Frame), Silver (Chute) Non-Returnable

Uniform Capacity (lb.): 1,500 Dump Height (in.): 36 Rotated Height (in.): 95-3/4
Level Height (in.): 60 Accepts: 30 and 55-gallon drums Motor Horsepower: 3/4
Single Phase (volts): 115 Motor (Hz): 60 Power Cord Length (ft.): 8
Hand Held Control Cord Length (ft.): 8 Drum Rotation (deg.): 135 Dump Angle (deg.): 45
Chute Diameter (in.): 24 Raise Time (sec.): 42 Motor Style: 56 Frame
Cylinder Diameter (in.): 2-1/2 Cylinder Length (in.): 18 Chute Reach (in.): 14

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDD-36-15-S-SSC
HDD-36-15-S-SSC

Stainless Steel Stationary Hydraulic Drum Dumper 36 In. Dump Height 1,500 Lb. Capacity Blue/Silver

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute. This portable unit has casters with floor lock screws. All steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.

  • Internal pre-wired heavy-duty electric motor conveniently dumps drums
  • Adjustable drum restraints work with all types of 30 and 55 gallon drums
  • Drum rotation design may be stopped at any point
  • Solid steel construction offers long lasting reliable use
Dimensions: 36"W x 61.5"L x 60"H Sell UOM: EA-Each Color: Blue (Frame), Silver (Chute)
Material: Steel UPC: 691215119795 GTIN: 00691215119795
Warranty: -- Shipping Weight: 966 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Dump Height (in.): 36 Rotated Height (in.): 95-3/4
Level Height (in.): 60 Accepts: 30 and 55-gallon drums Motor Horsepower: 3/4
Single Phase (volts): 115 Motor (Hz): 60 Power Cord Length (ft.): 8
Hand Held Control Cord Length (ft.): 8 Drum Rotation (deg.): 135 Dump Angle (deg.): 45
Chute Diameter (in.): 24 Raise Time (sec.): 42 Motor Style: 56 Frame
Cylinder Diameter (in.): 2-1/2 Cylinder Length (in.): 18 Chute Reach (in.): 14
