Model Details

HDD-48-10-P-DC

Not Yet Available, Coming Soon, Contact Vestil for Specifics

Printer Friendly
HDD-48-10-P-DC

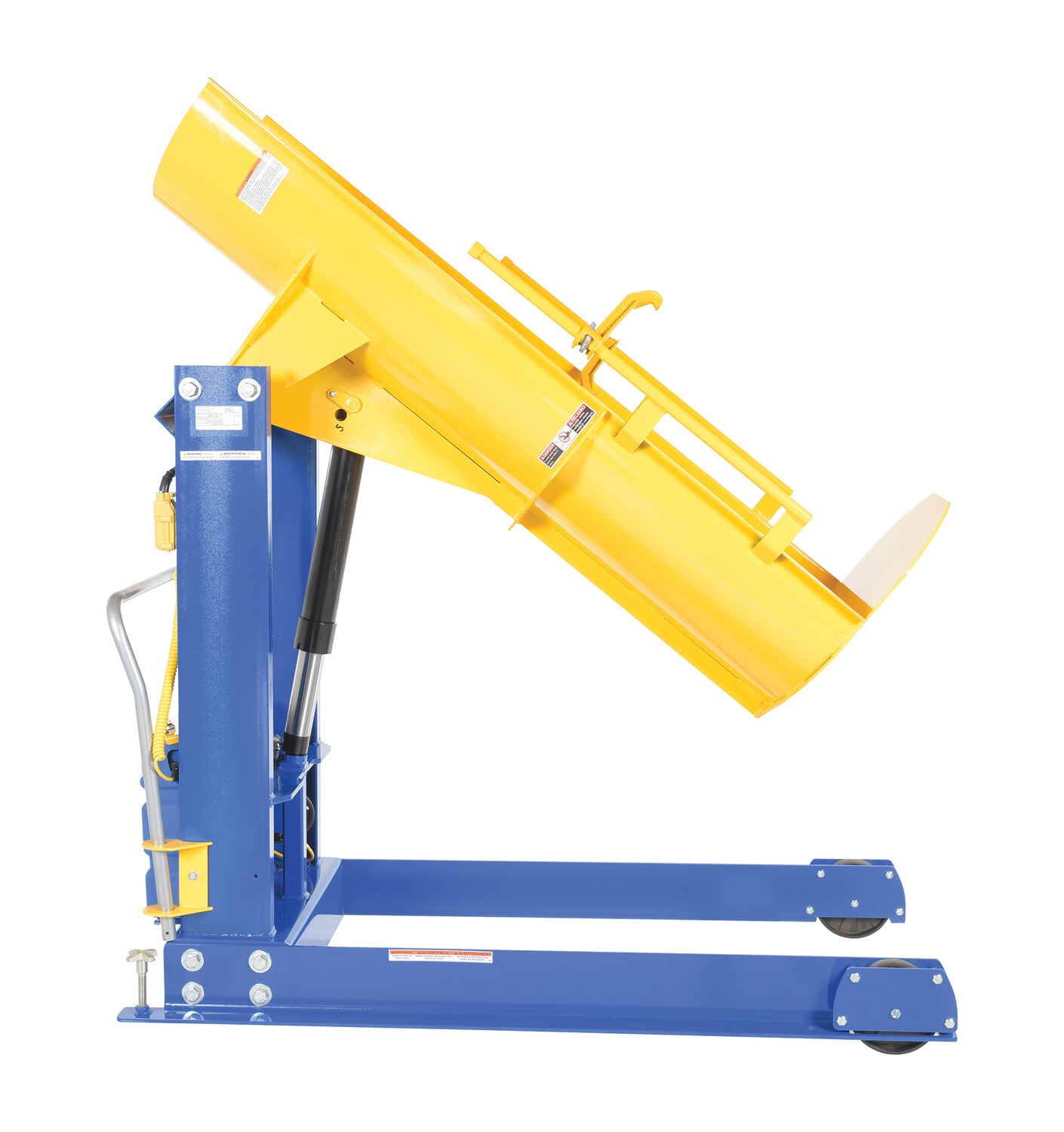

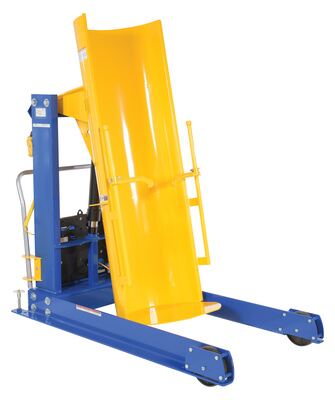

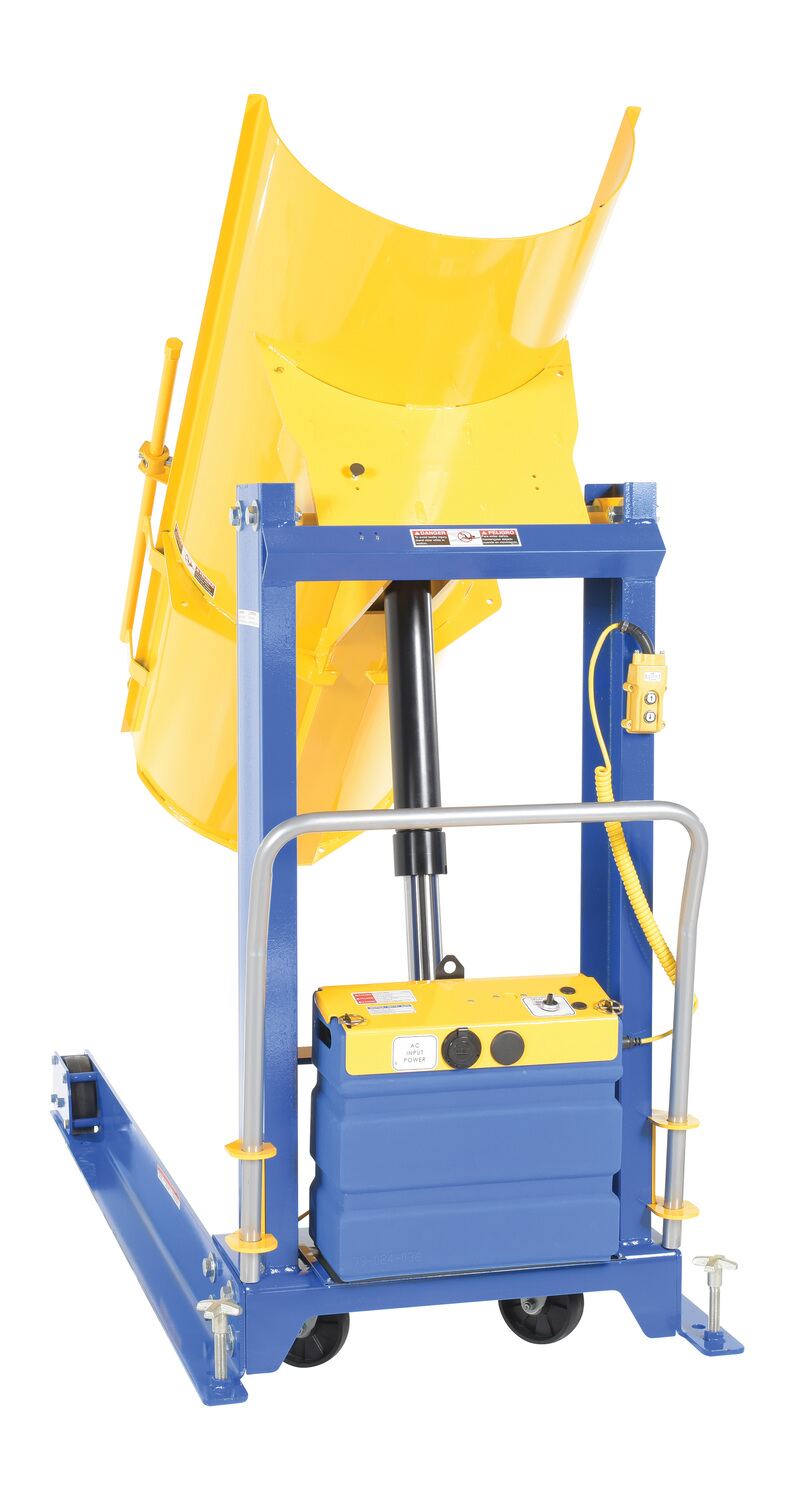

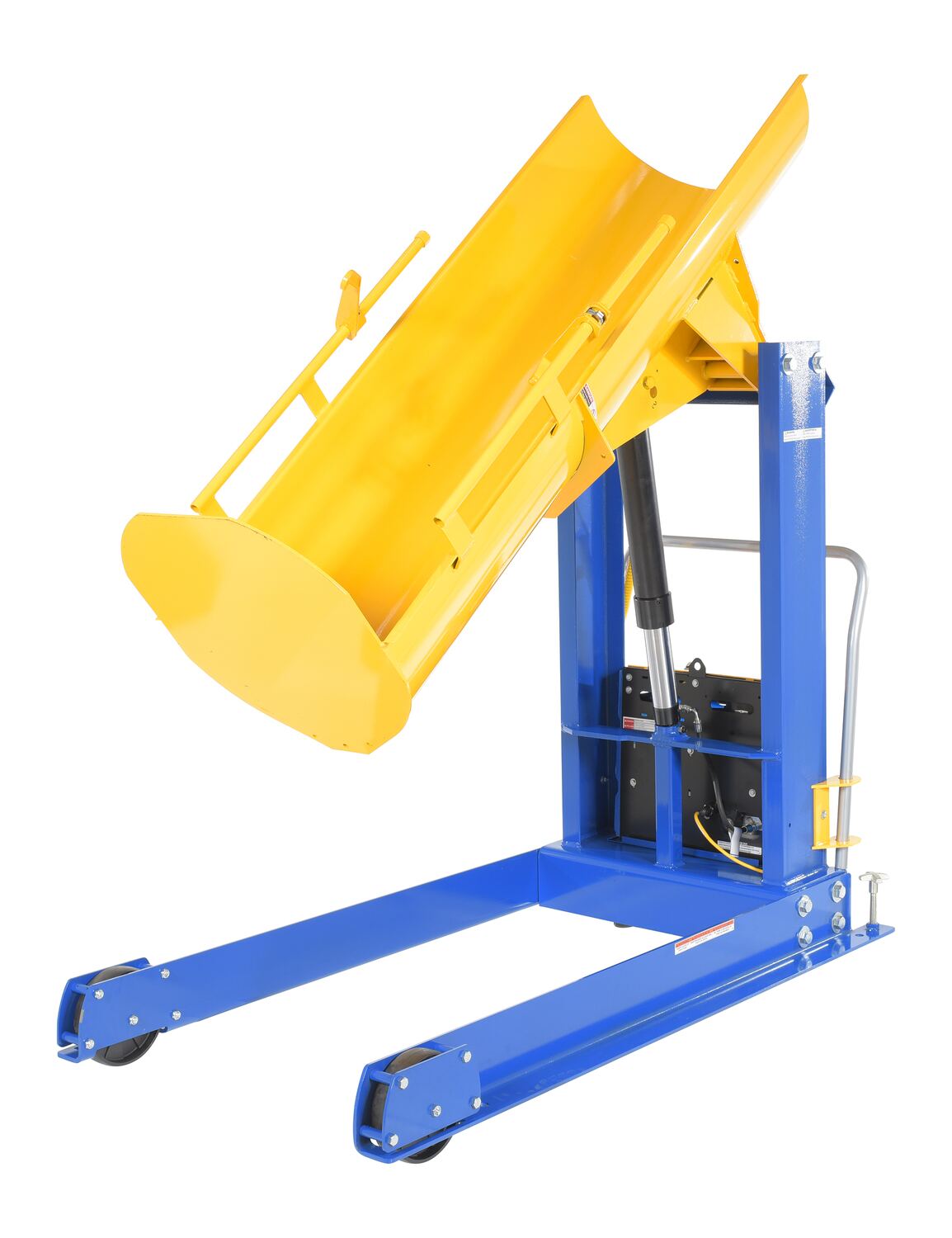

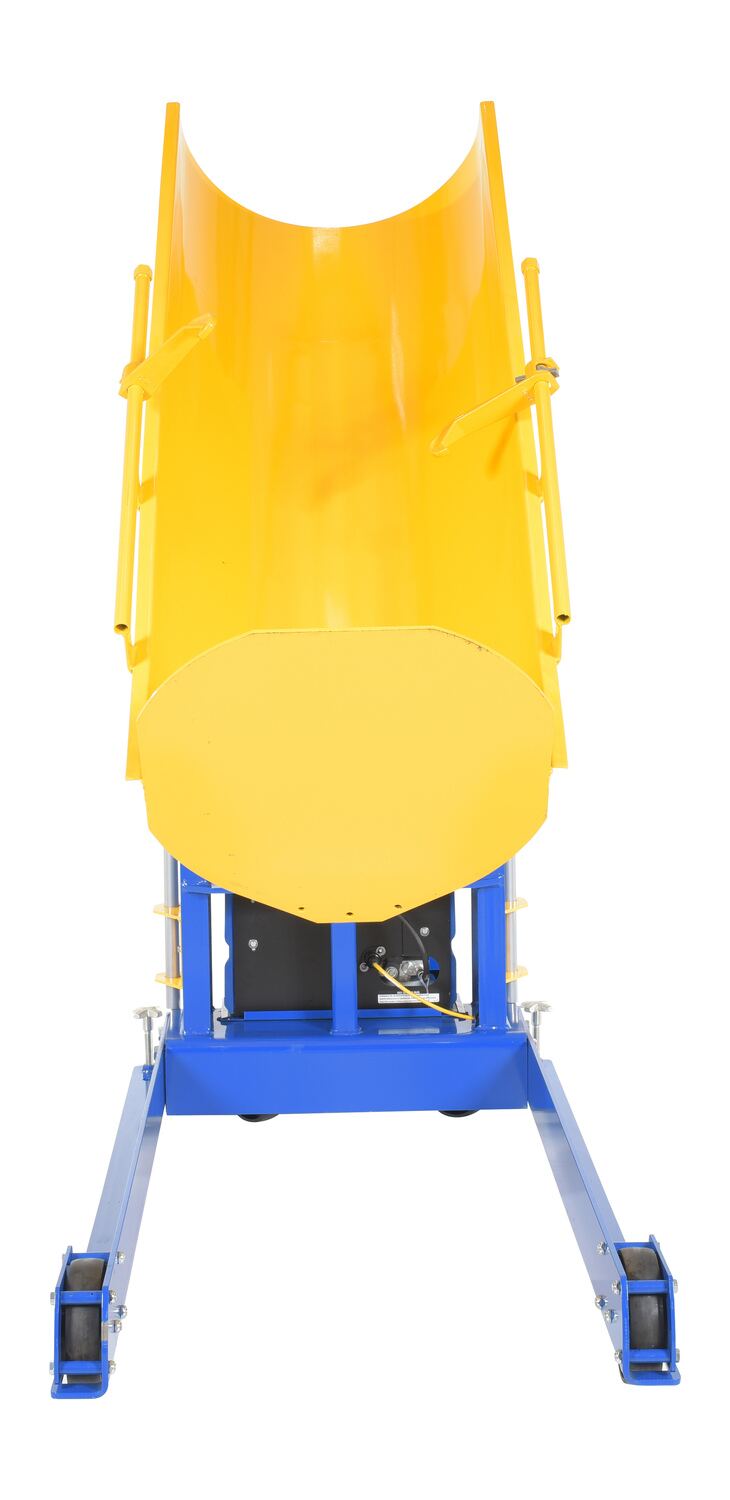

Steel DC Powered Portable Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue / Yellow

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute. this portable unit has casters with floor lock screws. Upper travel limit switch, emergency brass safety velocity fuse in cylinder are standard. All steel construction.

  • Compatible with all 30 and 55 gallon drum designs
  • Drum rotation design may be stopped at any point
  • DC powered
  • Adjustable vertical drum restraints
Total Ship Wt.(lbs.): 850 (only 1 package) Size: 36"W x 71.5"L x 72.5"H Color: BLUE (Frame) Yellow (Chute)

Uniform Capacity (lb.): 1,000 Dump Height (in.): 48 Overall Width (in.): 36
Overall Length (in.): 71-1/2 Level Height (in.): 72 Rotated Height (in.): 116
Dump Angle: 45° Accepts Drum Diameter Size (in.): 16-1/2 to 23-1/2 Accepts Drum Height Size (in.): 27-1/2 to 39-1/2
Handheld Control: 2-Function Hand Control Coil Cord Length (in.): 18-90 Lead Acid Battery Voltage: 12
Handle Height (in.): 38 Handle Diameter (in.): 1-1/4 Swivel Caster Quantity: 2
Swivel Caster Diameter (in.): 6 Swivel Caster Width (in.): 2 Rigid Caster Quantity: 2
Rigid Caster Diameter (in.): 8 Rigid Caster Width (in.): 2 Caster Material: Glass Filled Nylon
Caster Color: Black

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDD-48-10-P-DC
HDD-48-10-P-DC

Steel DC Powered Portable Hydraulic Drum Dumper 48 In. Dump Height 1,000 Lb. Capacity Blue / Yellow

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute. this portable unit has casters with floor lock screws. Upper travel limit switch, emergency brass safety velocity fuse in cylinder are standard. All steel construction.

  • Compatible with all 30 and 55 gallon drum designs
  • Drum rotation design may be stopped at any point
  • DC powered
  • Adjustable vertical drum restraints
Dimensions: 36"W x 71.5"L x 72.5"H Sell UOM: EA-Each Color: BLUE (Frame) Yellow (Chute)
Material: STEEL UPC: 691215378079 GTIN: 00691215378079
Warranty: -- Shipping Weight: 850 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Dump Height (in.): 48 Overall Width (in.): 36
Overall Length (in.): 71-1/2 Level Height (in.): 72 Rotated Height (in.): 116
Dump Angle: 45° Accepts Drum Diameter Size (in.): 16-1/2 to 23-1/2 Accepts Drum Height Size (in.): 27-1/2 to 39-1/2
Handheld Control: 2-Function Hand Control Coil Cord Length (in.): 18-90 Lead Acid Battery Voltage: 12
Handle Height (in.): 38 Handle Diameter (in.): 1-1/4 Swivel Caster Quantity: 2
Swivel Caster Diameter (in.): 6 Swivel Caster Width (in.): 2 Rigid Caster Quantity: 2
Rigid Caster Diameter (in.): 8 Rigid Caster Width (in.): 2 Caster Material: Glass Filled Nylon
Caster Color: Black
