HDD-60-10-S

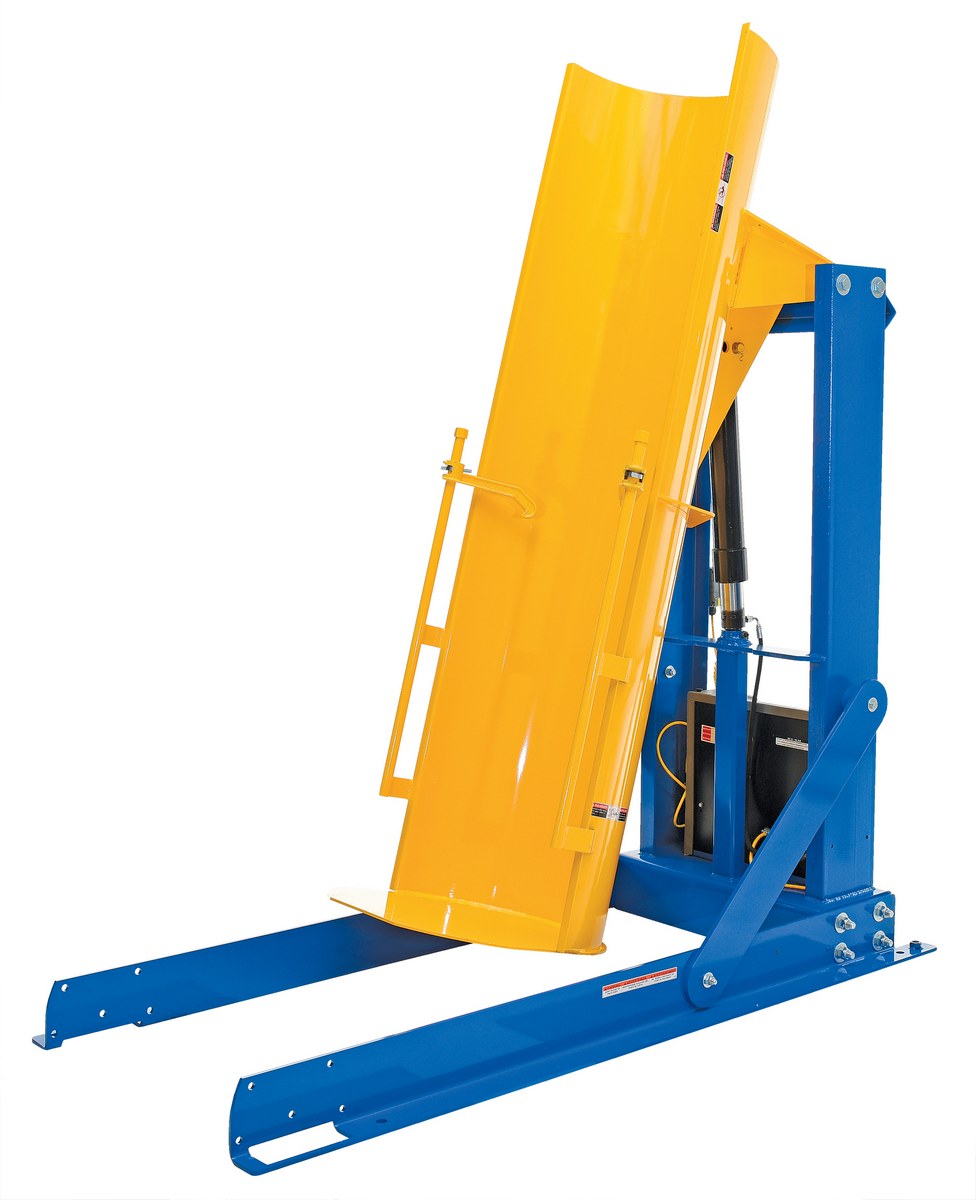

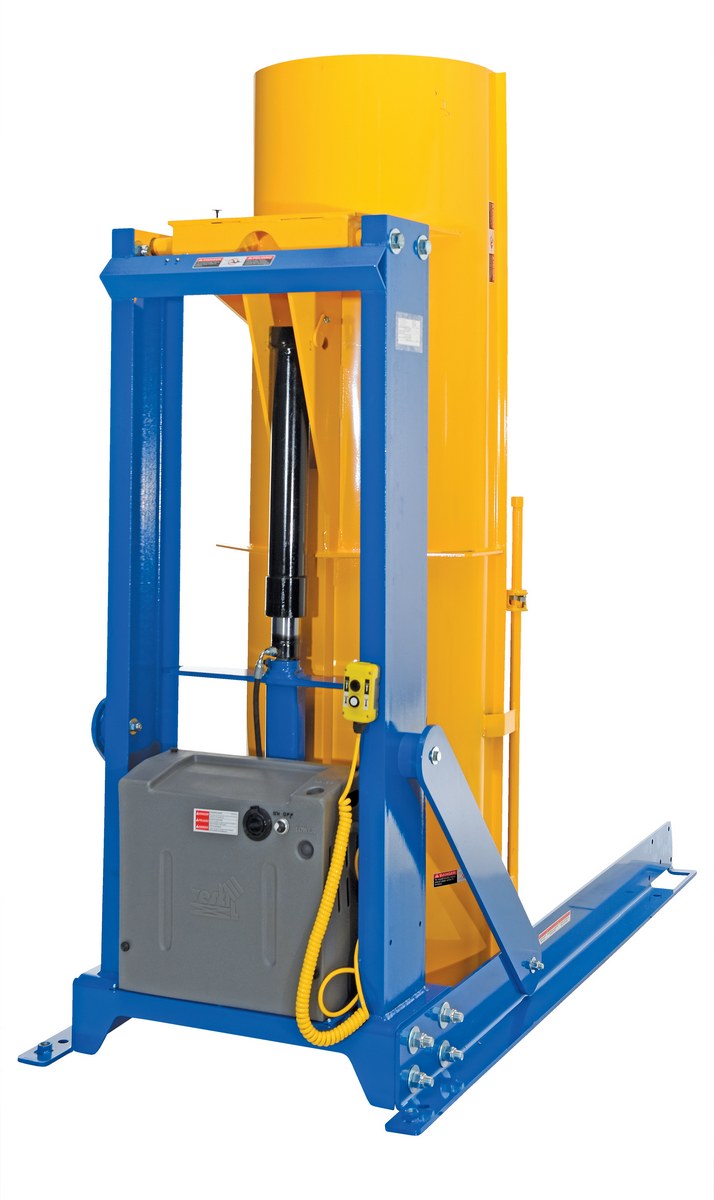

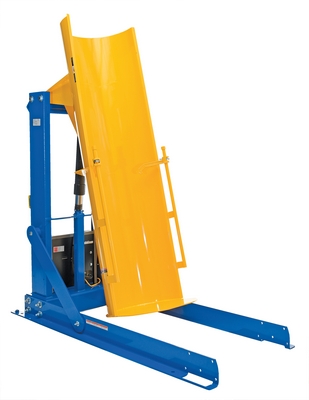

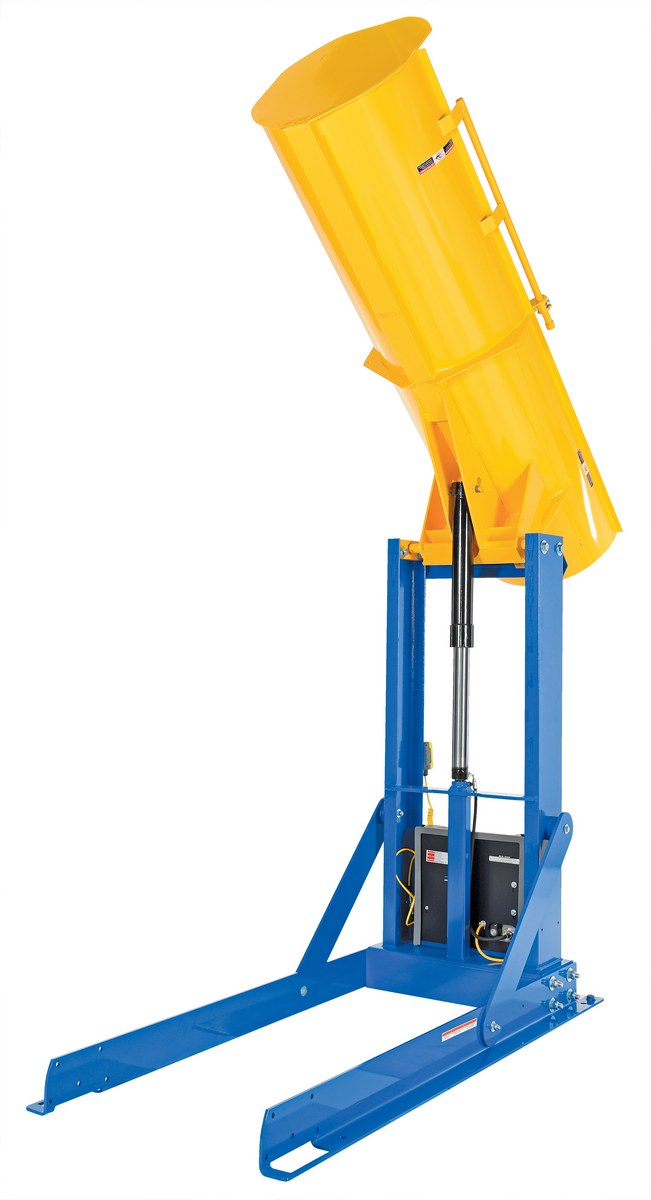

Steel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue / Yellow

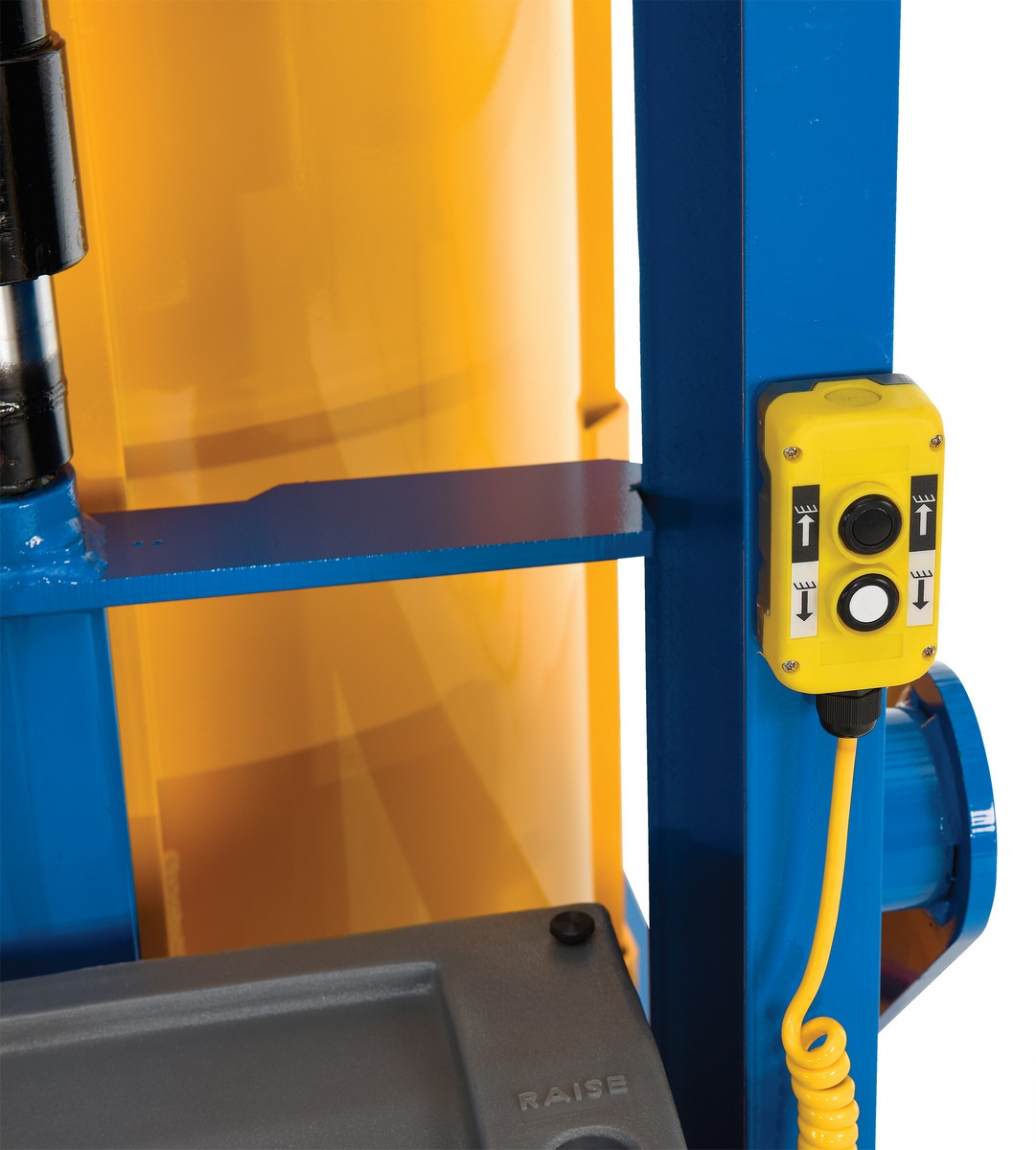

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute and all steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.

  • Internal pre-wired heavy-duty electric motor conveniently dumps drums

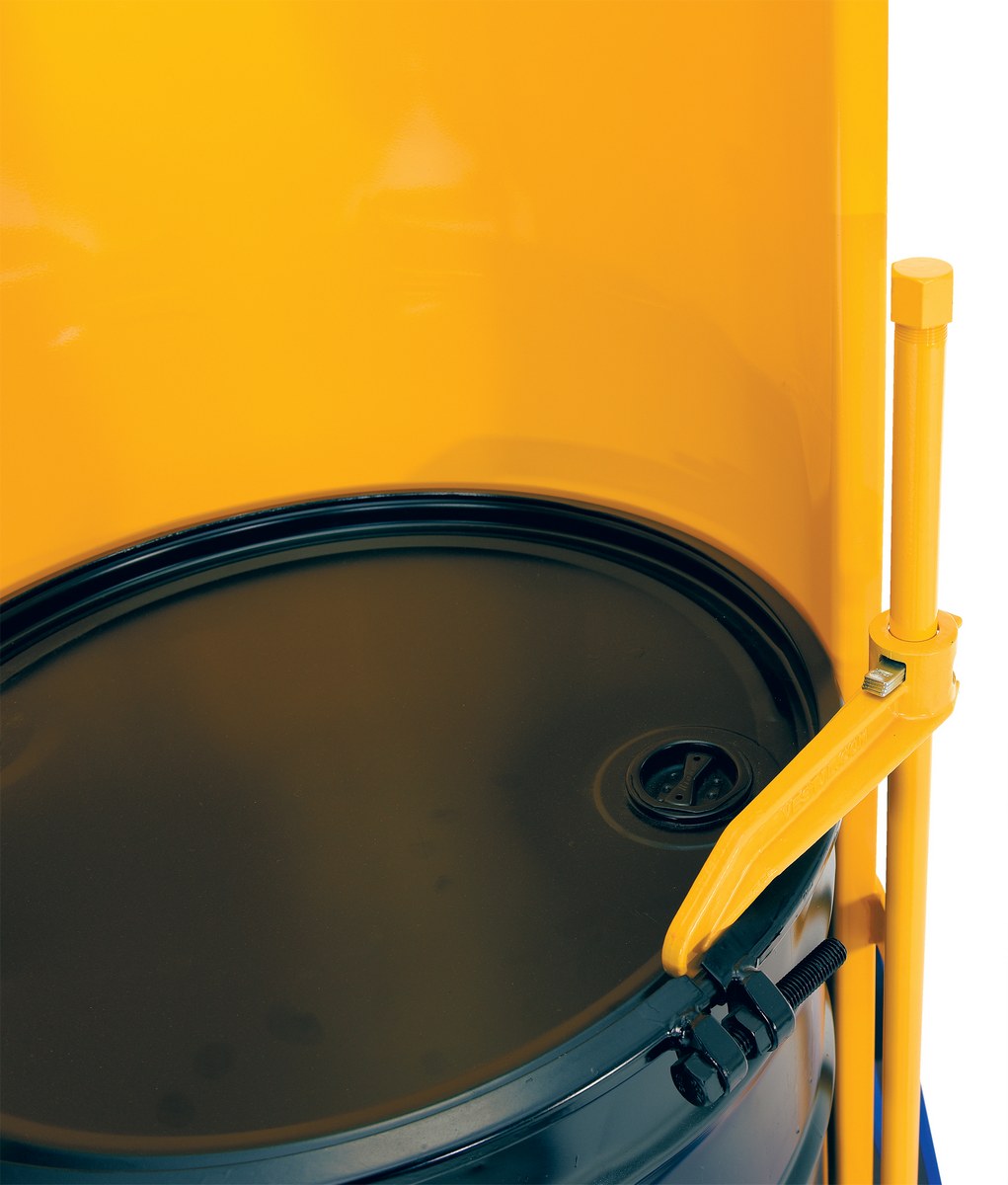

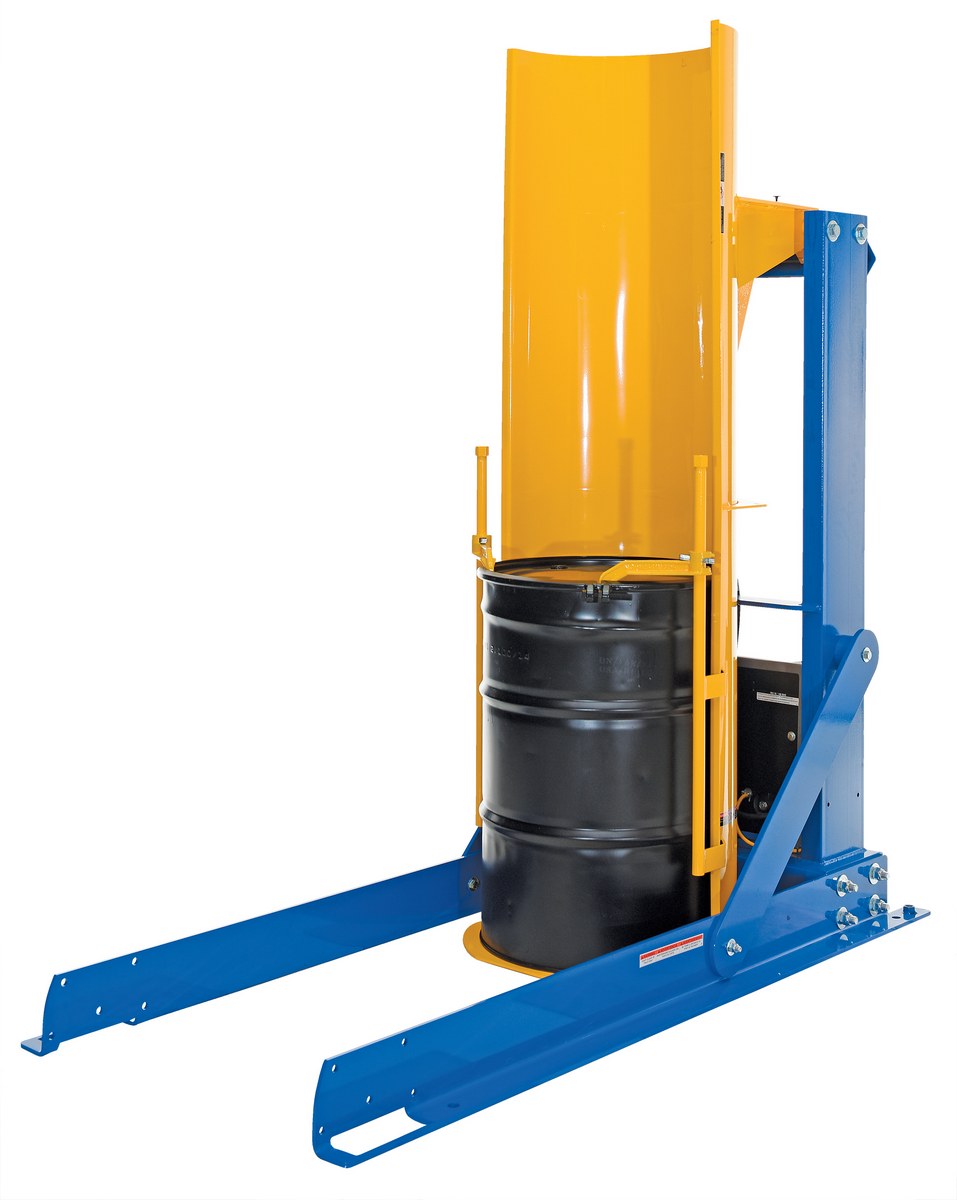

  • Adjustable drum restraints work with all types of 30 and 55 gallon drums

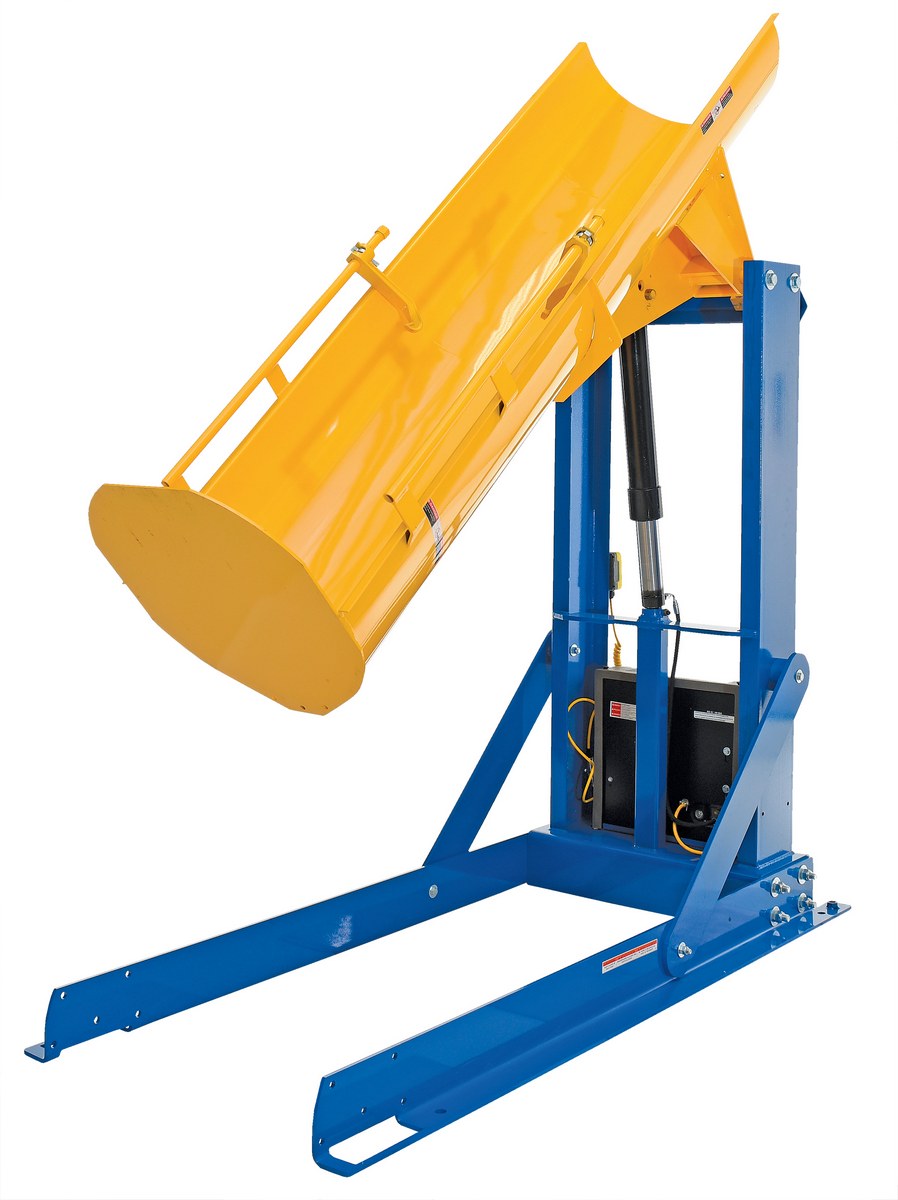

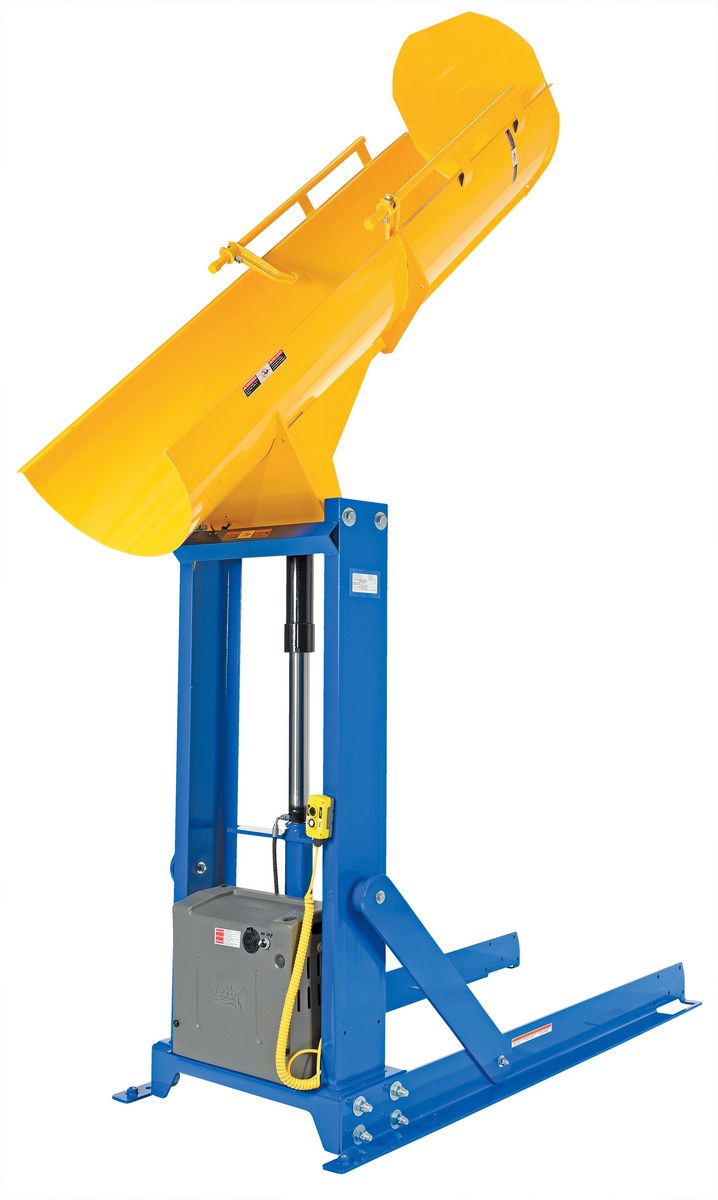

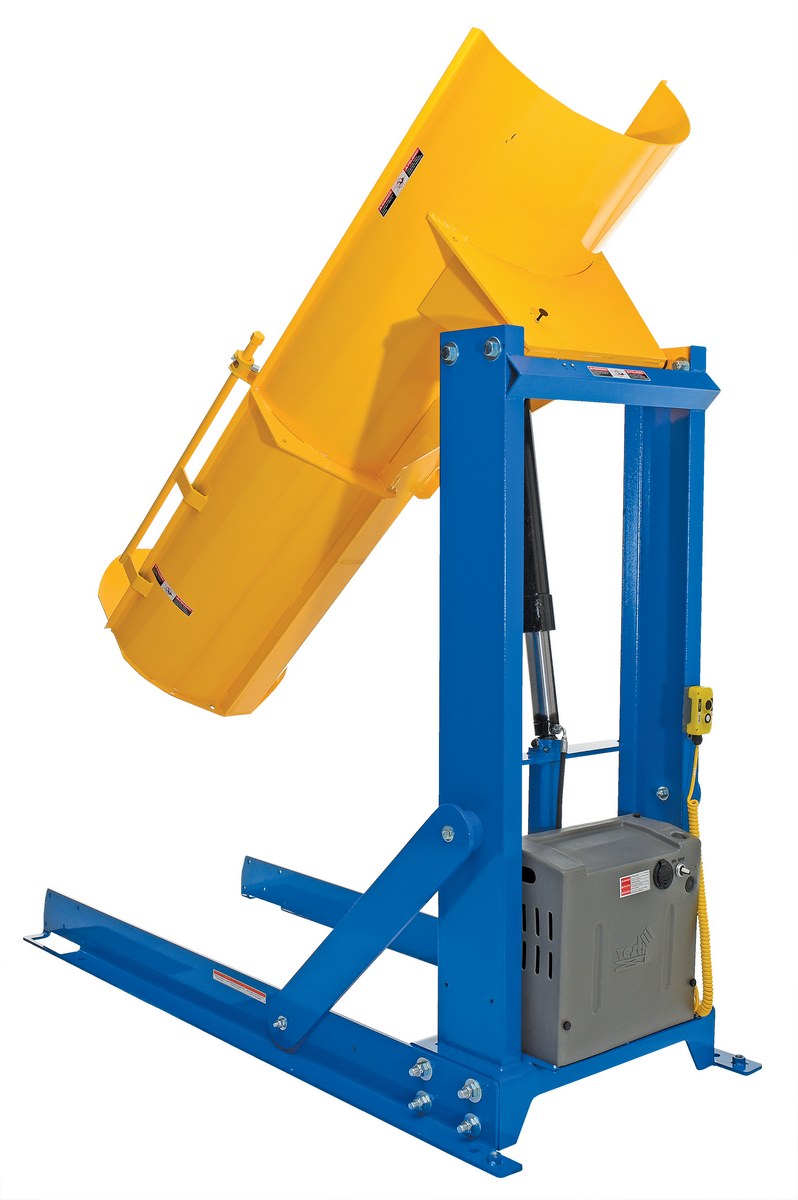

  • Drum rotation design may be stopped at any point
  • Solid steel construction offers long lasting reliable use
Total Ship Wt.(lbs.): 945 (only 1 package) Size: 36"W x 80"L x 84"H Color: Blue (Frame), Yellow (Chute)

Uniform Capacity (lb.): 1,000 Dump Height (in.): 60 Rotated Height (in.): 136-3/4
Level Height (in.): 84 Accepts: 30 and 55-gallon drums Motor Horsepower: 3/4
Single Phase (volts): 115 Motor (Hz): 60 Power Cord Length (ft.): 8
Hand Held Control Cord Length (ft.): 8 Drum Rotation (deg.): 135 Dump Angle (deg.): 45
Chute Diameter (in.): 24 Raise Time (sec.): 42 Motor Style: 56 Frame
Cylinder Diameter (in.): 2-1/2 Cylinder Length (in.): 18 Chute Reach (in.): 14
Accepted Drum Diameter (in.): 16.5 to 23.5 Accepted Drum Height (in.): 27.5 to 39.5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDD-60-10-S
HDD-60-10-S

Steel Stationary Hydraulic Drum Dumper 60 In. Dump Height 1,000 Lb. Capacity Blue / Yellow

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute and all steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.

  • Internal pre-wired heavy-duty electric motor conveniently dumps drums
  • Adjustable drum restraints work with all types of 30 and 55 gallon drums
  • Drum rotation design may be stopped at any point
  • Solid steel construction offers long lasting reliable use
Dimensions: 36"W x 80"L x 84"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Chute)
Material: Steel UPC: 691215022729 GTIN: 00691215022729
Warranty: -- Shipping Weight: 945 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Dump Height (in.): 60 Rotated Height (in.): 136-3/4
Level Height (in.): 84 Accepts: 30 and 55-gallon drums Motor Horsepower: 3/4
Single Phase (volts): 115 Motor (Hz): 60 Power Cord Length (ft.): 8
Hand Held Control Cord Length (ft.): 8 Drum Rotation (deg.): 135 Dump Angle (deg.): 45
Chute Diameter (in.): 24 Raise Time (sec.): 42 Motor Style: 56 Frame
Cylinder Diameter (in.): 2-1/2 Cylinder Length (in.): 18 Chute Reach (in.): 14
Accepted Drum Diameter (in.): 16.5 to 23.5 Accepted Drum Height (in.): 27.5 to 39.5
